Roof Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

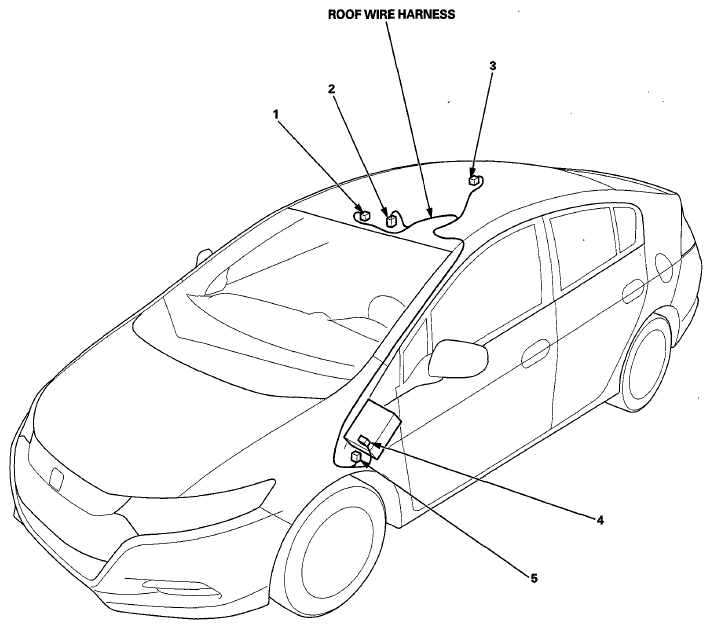

ROOF WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Ceiling light | 3 | 3 | Middle of roof | |
| HFL-navigation microphone | 1 | 3 | Front of roof | |
| Individual map light | 2 | 3 | Front of roof | |
| Under-dash fuse/relay box connector G | 4 | 8 | Under left side of dash | |
| C401 | 5 | 4 | Under left side of dash | Dashboard wire harness |
