Right Rear Door Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

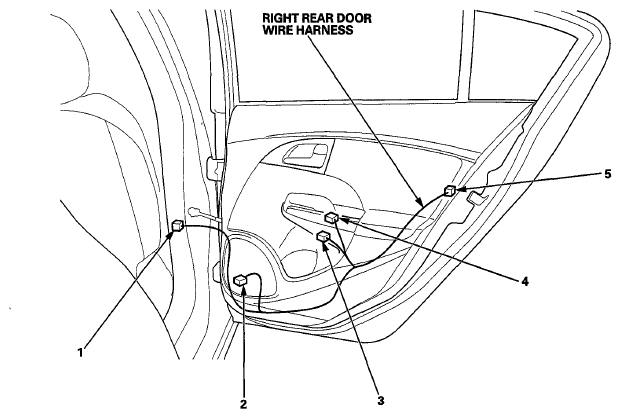

RIGHT REAR DOOR WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Right rear door lock knob switch/lock actuator | 1 | 10 | Right rear door | |
| Right rear door speaker | 4 | 2 | Right rear door | |
| Right rear power window motor | 3 | 2 | Right rear door | |
| Right rear power window switch | 2 | 8 | Right rear door | |
| C502 | 5 | 12 | Right B-pillar | Floor wire harness |
