Right Engine Compartment Wire Harness (Engine compartment branch)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

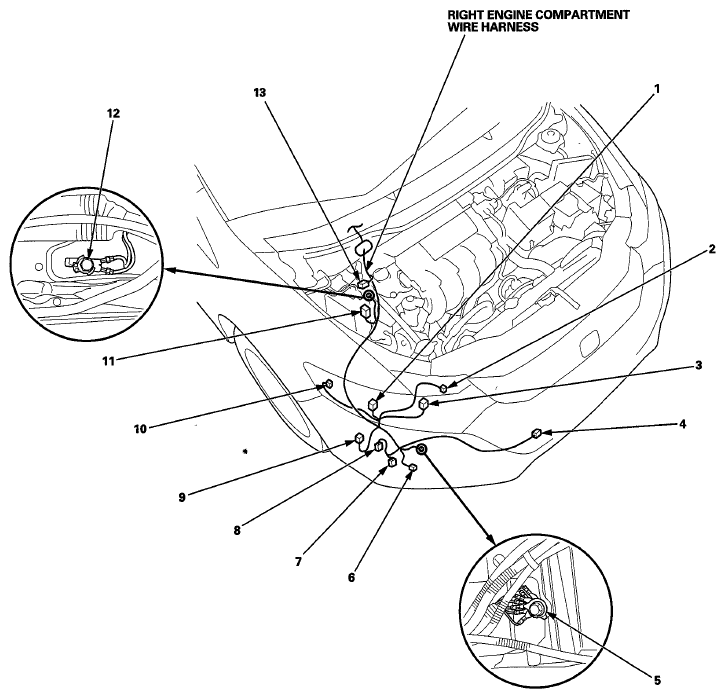

RIGHT ENGINE COMPARTMENT WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front turn signal light | 6 | 2 | Behind right side of front bumper | ||
| Outside air temperature sensor | 4 | 2 | Behind right side of front bumper | ||
| Right front impact sensor | 9 | 2 | Behind right side of front bumper | ||
| Right front parking light | 2 | 2 | Behind right headlight | ||
| Right front wheel speed sensor | 13 | 2 | Right side of engine compartment | ||
| Right headlight (HIGH) | 3 | 2 | Behind right headlight | ||
| Right headlight (LOW) | 1 | 2 | Behind right headlight | ||
| Right front side marker light | 10 | 2 | Behind right headlight | ||
| VSA modulator control unit or ABS modulator control unit | 11 | 47 | Right side of engine compartment | ||
| Washer fluid level switch | 8 | 2 | Behind right side of front bumper | Canada models | |
| Windshield/rear window washer motor | 7 | 2 | Behind right side of front bumper | ||
| G202 | 5 | Behind right side of front bumper | Body ground, via right engine compartment wire harness | ||
| G203 (for VSA or ABS) | 12 | Right side of engine compartment | Body ground, via right engine compartment wire harness |
