Right Engine Compartment Wire Harness (Dash branch)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

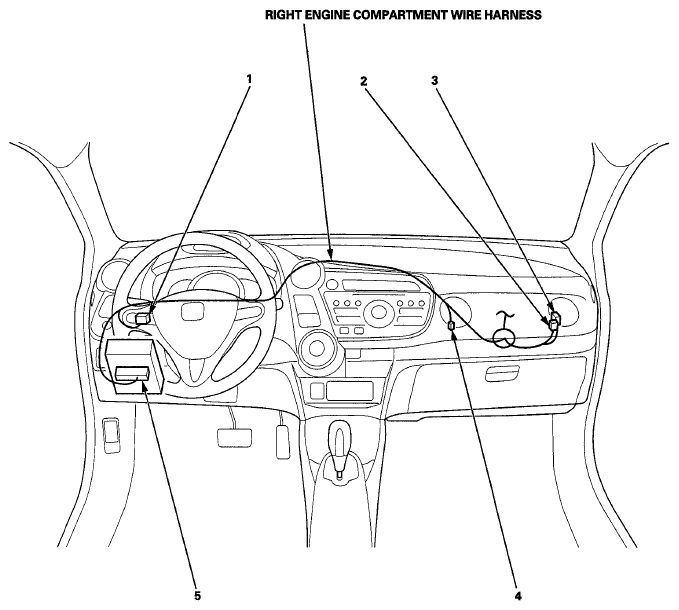

RIGHT ENGINE COMPARTMENT WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Evaporator temperature sensor | 3 | 2 | Under right side of dash | |
| Under-dash fuse/relay box connector A | 5 | 36 | Under left side of dash | |
| C201 | 2 | 16 | Under right side of dash | Dashboard wire harness |
| C202 | 1 | 4 | Under right side of dash | Dashboard wire harness |
| C304 | 4 | 13 | Under right side of dash | Left engine compartment wire harness |
