Left Rear Door Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

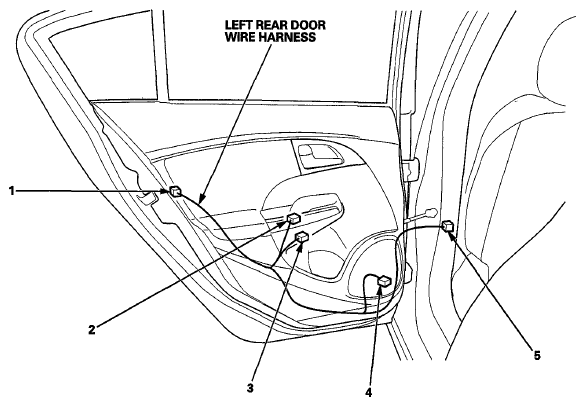

LEFT REAR DOOR WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Left rear door lock knob switch/lock actuator | 1 | 10 | Left rear door | |
| Left rear door speaker | 4 | 2 | Left rear door | |
| Left rear power window motor | 3 | 2 | Left rear door | |
| Left rear power window switch | 2 | 8 | Left rear door | |
| C605 | 5 | 12 | Left B-pillar | Driver's side wire harness |
