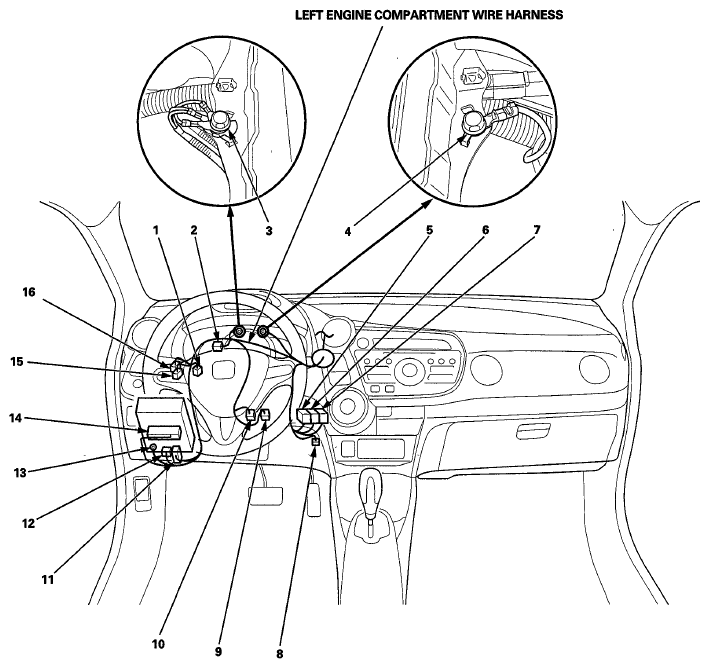

Left Engine Compartment Wire Harness (Dash branch)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
LEFT ENGINE COMPARTMENT WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| APP sensor A/B | 8 | 6 | Under middle of dash | |
| Brake pedal position switch | 9 | 4 | Under left side of dash | |
| EPS control unit connector A | 5 | 2 | Under middle of dash | |
| EPS control unit connector B | 6 | 2 | Under middle of dash | |
| EPS control unit connector C | 7 | 16 | Under middle of dash | |
| Idle stop switch | 10 | 2 | Under left side of dash | |
| Under-dash fuse/relay box connector B | 14 | 36 | Under left side of dash | |
| C302 | 11 | 20 | Under left side of dash | Dashboard wire harness |
| C303 | 12 | 4 | Under left side of dash | Dashboard wire harness |
| C304 | 16 | 13 | Under left side of dash | Right engine compartment wire harness |
| C305 | 15 | 16 | Under left side of dash | Driver's side wire harness |
| C306 (Junction connector) | 2 | 12 | Under left side of dash | |
| C307 (Junction connector) | 1 | 12 | Under left side of dash | |
| T-9 | 13 | Under left side of dash | Under-dash fuse/relay box | |
| G402 | 4 | Under left side of dash | Body ground, via left engine compartment wire harness | |
| G403 | 3 | Under left side of dash | Body ground, via left engine compartment wire harness |
