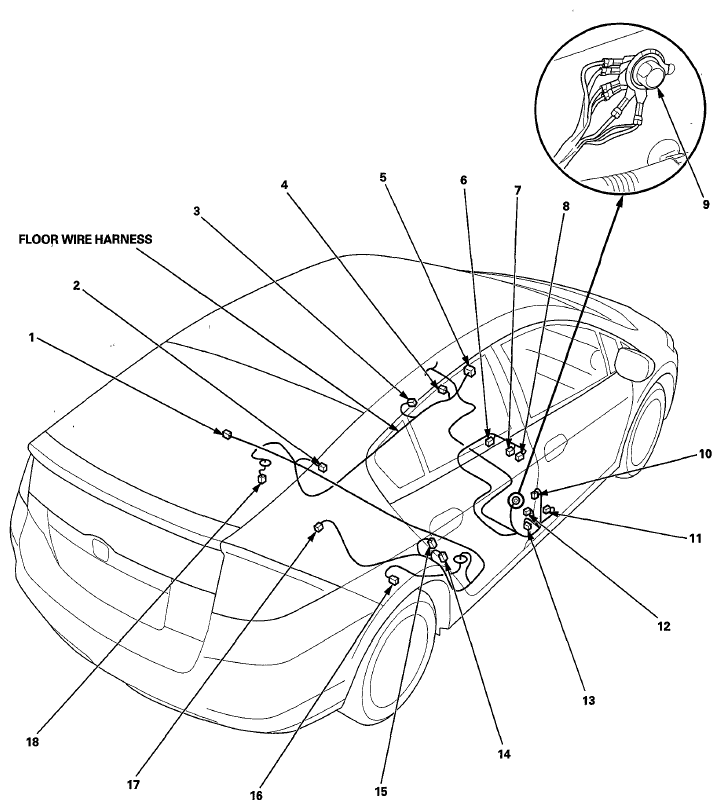

Floor Wire Harness (Right Branch)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
FLOOR WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's door switch | 10 | 1 | Right B-pillar | ||
| Front passenger's seat belt buckle switch | 6 | 2 | Under front passenger's seat | ||
| Front passenger's seat belt tensioner | 13 | 4 | Right B-pillar | ||
| Fuel tank unit (fuel pump/fuel gauge sending unit) | 18 | 4 | Under floor | ||
| Parking brake switch | 3 | 1 | Under center console | ||
| Right rear door switch | 15 | 1 | Right C-pillar | ||
| Right rear wheel speed sensor | 16 | 2 | Under floor | ||
| Right side airbag inflator | 8 | 2 | Under front passenger's seat | ||
| Right side curtain airbag inflator | 17 | 2 | Right C-pillar | ||
| Right side impact sensor (first) | 11 | 4 | Right B-pillar | ||
| Right side impact sensor (second) | 14 | 2 | Right C-pillar | ||
| SRS unit | 5 | 39 | Under middle of dash | ||
| Rear safing sensor | 2 | 4 | Under floor | ||
| C501 | 1 | 4 | Under floor | Driver's side wire harness | |
| C407 | 4 | 23 | Under center console | Dashboard wire harness | |
| C502 | 12 | 12 | Right B-pillar | Right rear door wire harness | |
| C503 | 7 | 4 | Under front passenger's seat | ODS unit harness | |
| G601 | 9 | Left side of floor | Body ground, via floor wire harness |
