Floor Wire Harness (Left Branch)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

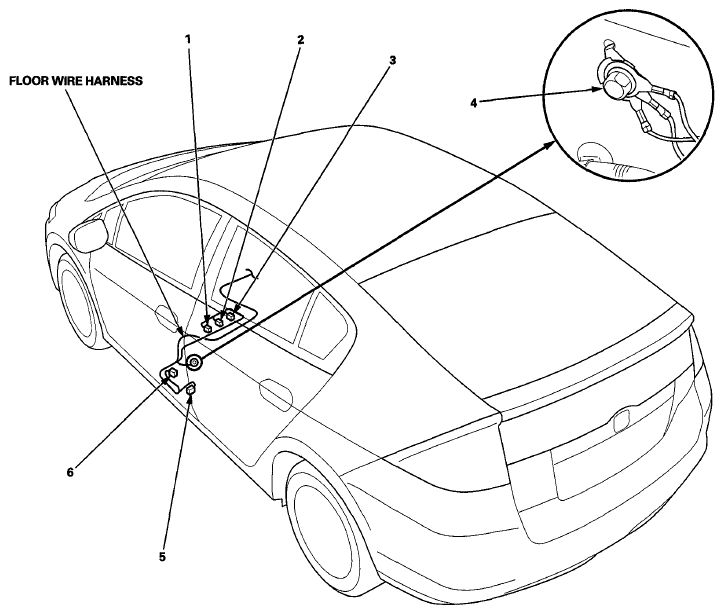

FLOOR WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Driver's seat belt buckle switch | 3 | 2 | Under driver's seat | |
| Driver's seat belt tensioner | 5 | 4 | Left B-pillar | |
| Left side airbag inflator | 1 | 2 | Under driver's seat | |
| Left side impact sensor (first) | 6 | 4 | Left B-pillar | |
| C504 | 2 | 3 | Under driver's seat | Driver's seat position sensor subharness |
| G602 | 4 | Left side of floor | Body ground, via floor wire harness |
