Driver's Door Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

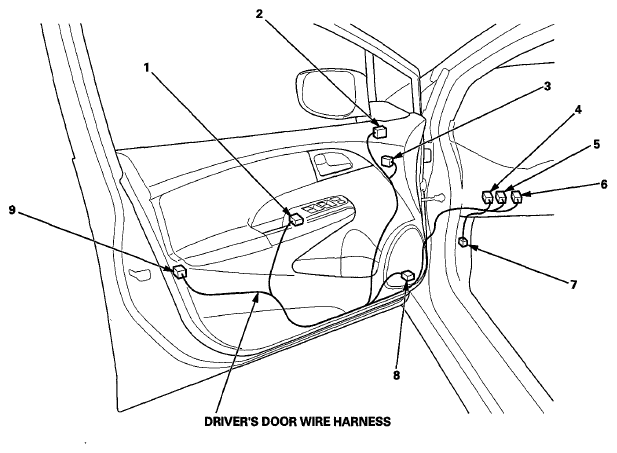

DRIVER'S DOOR WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's door key cylinder switch/lock knob switch/lock actuator | 9 | 10 | Driver's door | ||
| Driver's power window motor | 3 | 6 | Driver's door | ||
| Left front door speaker | 8 | 2 | Driver's door | ||
| Left power mirror | 2 | 6 | Driver's door | Without side turn signal light | |
| Left power mirror | 2 | 13 | Driver's door | With side turn | |
| Power window master switch | 1 | 22 | Driver's door | signal light | |
| Under-dash fuse/relay box connector E | 5 | 12 | Under left side of dash | ||
| Under-dash fuse/relay box connector F | 4 | 6 | Under left side of dash | ||
| C403 | 6 | 18 | Under left side of dash | Dashboard wire harness | |
| C601 | 7 | 4 | Under left side of dash | Driver's side wire harness |
