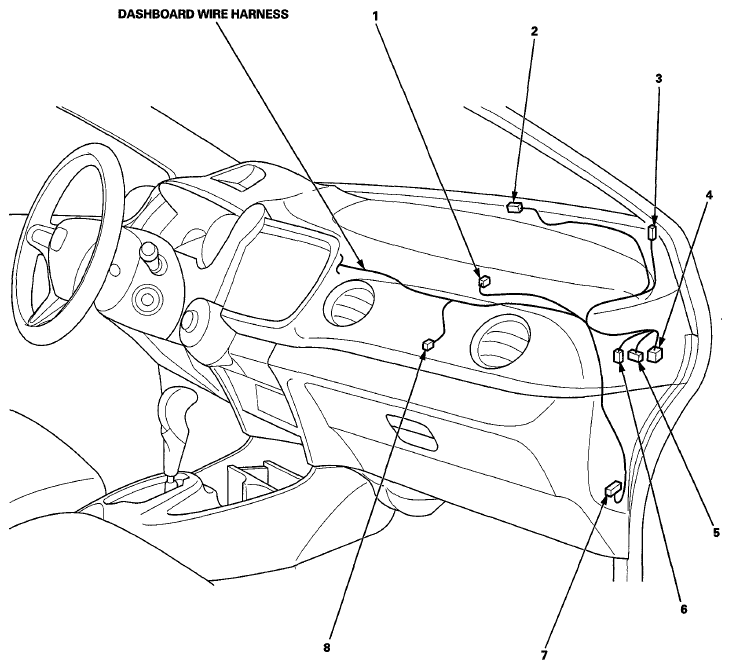

Dashboard Wire Harness (View of passenger's side)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
DASHBOARD WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's airbag inflator | 1 | 4 | Under right side of dash | ||
| Glove box light | 8 | 2 | Under right side of dash | ||
| HandsFreeLink control unit | 7 | 28 | Under right side of dash | With navigation | |
| Right front tweeter | 3 | 2 | Right side of dash | ||
| Sunlight sensor | 2 | 2 | Right side of dash | ||
| C411 | 4 | 18 | Under right side of dash | Front passenger's door wire harness | |
| C201 | 5 | 16 | Under right side of dash | Right engine compartment wire harness | |
| C202 | 6 | 4 | Under right side of dash | Right engine compartment wire harness |
