Side Curtain Airbag(s)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. A side impact sensor or the rear safing sensor must activate and send electrical signals to the microprocessor.
  2. The microprocessor must compute the signals trigger the side curtain airbag and side airbag inflator(s).
  3. The triggered inflators that receives the signals must ignite and deploy the side curtain airbag and side airbag at the same time.

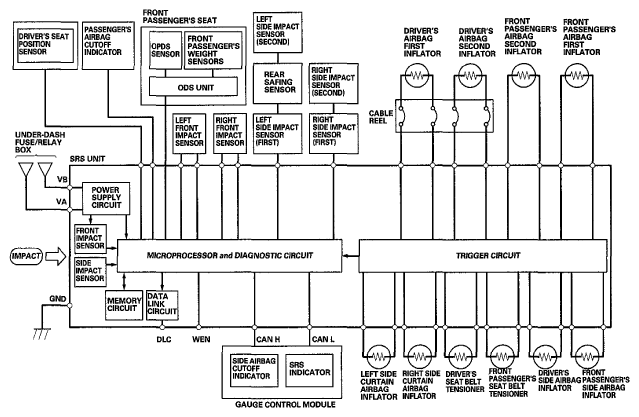

Fig 1: Side Curtain Airbag - System Diagram
G06432114Courtesy of AMERICAN HONDA MOTOR CO., INC.
