Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Inside Rearview Mirror (UE1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor (DD8)
2	OnStar® Indicator - Red
3	Emergency Button
4	OnStar® Call Center Button
5	Answer/End Call Button
6	Inside Rearview Mirror (ISRVM) On/Off Button (DD8)
7	OnStar® Indicator - Green

Fig 2: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle - Driver and Seat Belt Switch - Driver
2	Heated Seat Element - Driver Back (KA1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Seat Belt Buckle - Driver Connector
5	X315 (KA1)
6	Heated Seat Control Module - Driver (KA1)

Fig 3: Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Back (KA1)
2	Seat Belt Buckle - Passenger and Seat Belt Switch - Passenger
3	Heated Seat Control Module - Passenger (KA1)
4	X314 (KA1)
5	Heated Seat Element - Passenger Cushion (KA1)

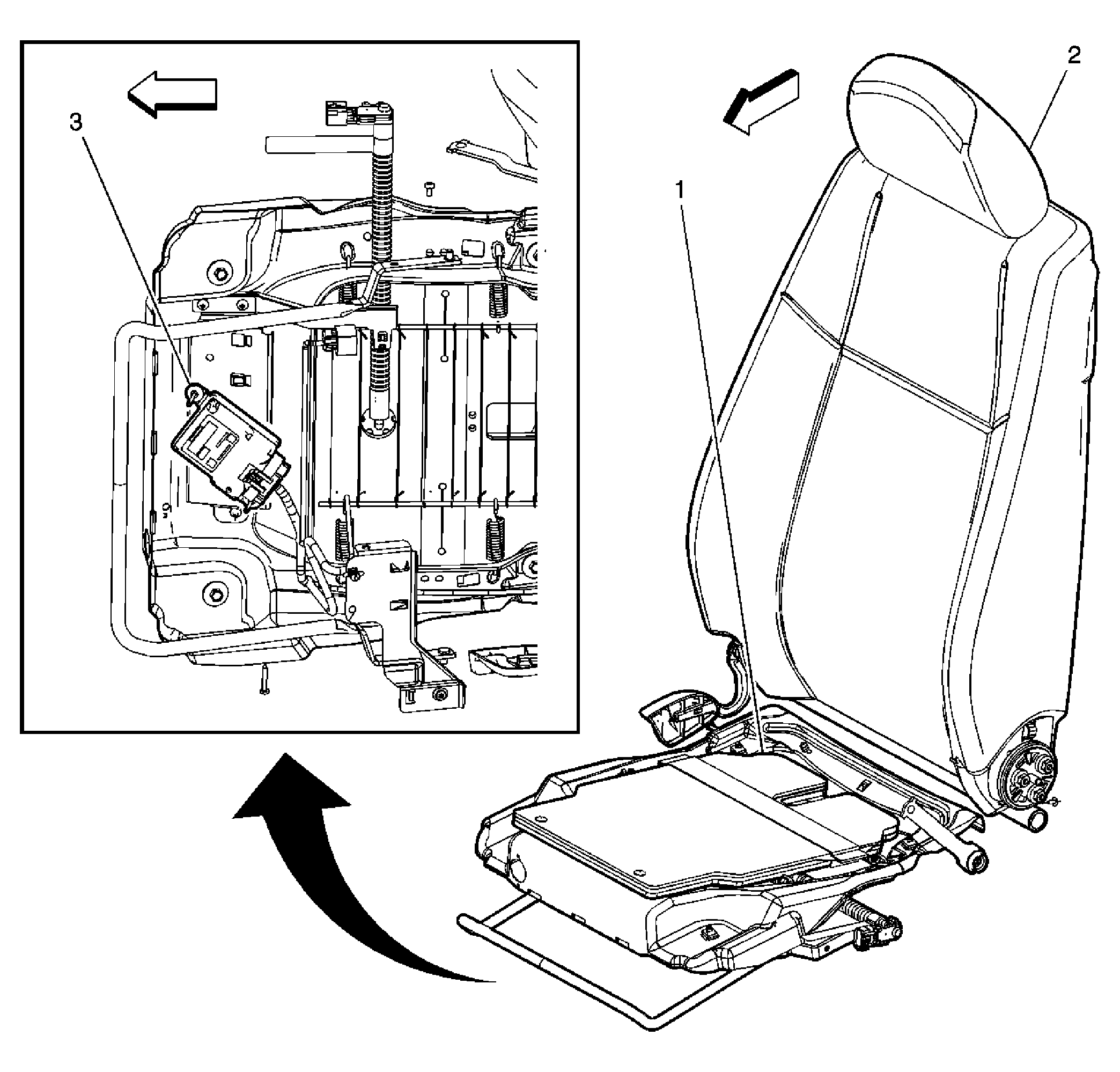

Fig 4: Passenger Seat Cushion Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2	Front Passenger Seat
3	Inflatable Restraint Front Passenger Presence System (PPS) Module

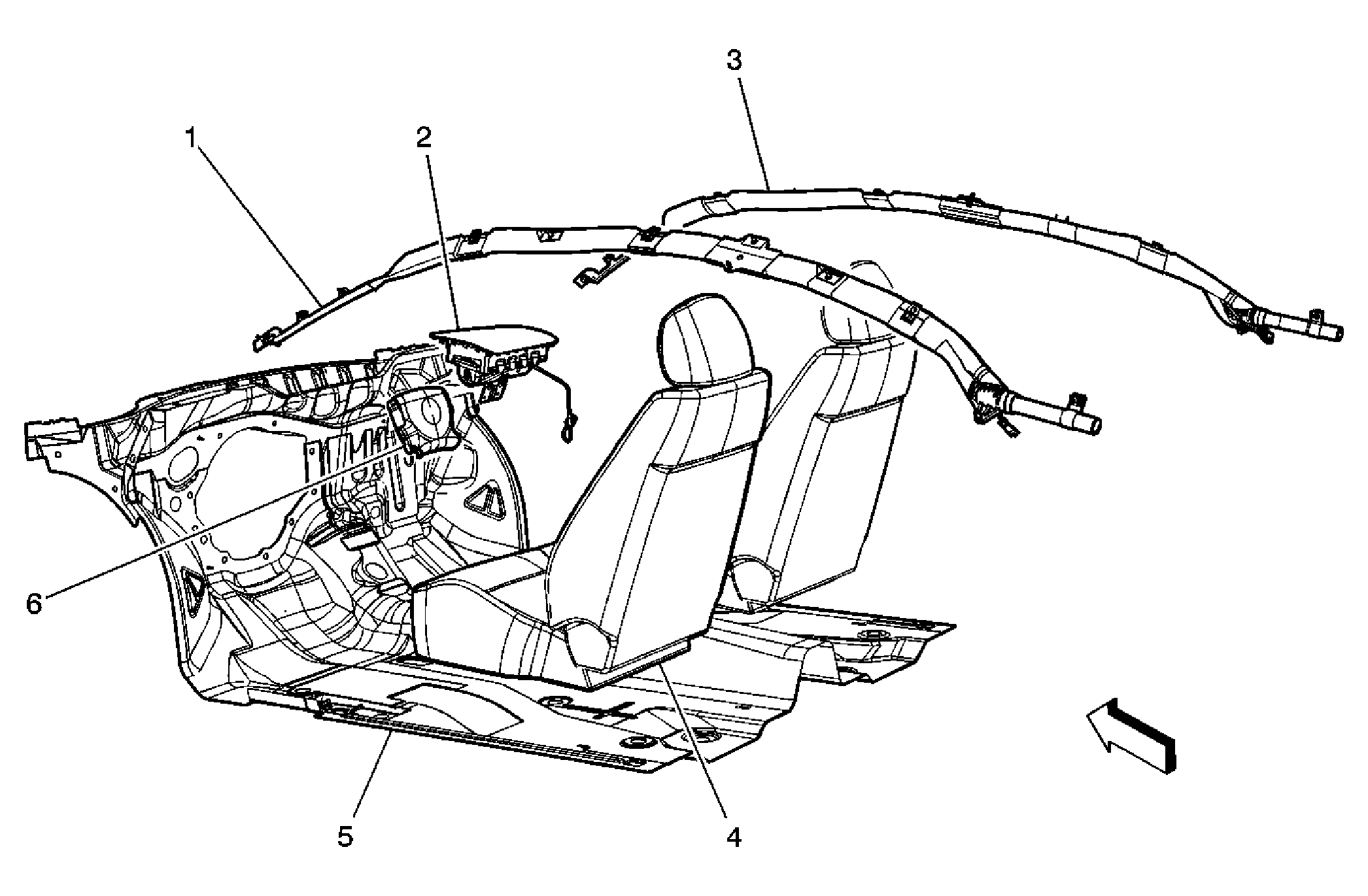

Fig 5: SIR Components - Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right (ASF)
4	Driver Seat
5	Floor Pan
6	Inflatable Restraint Steering Wheel Module

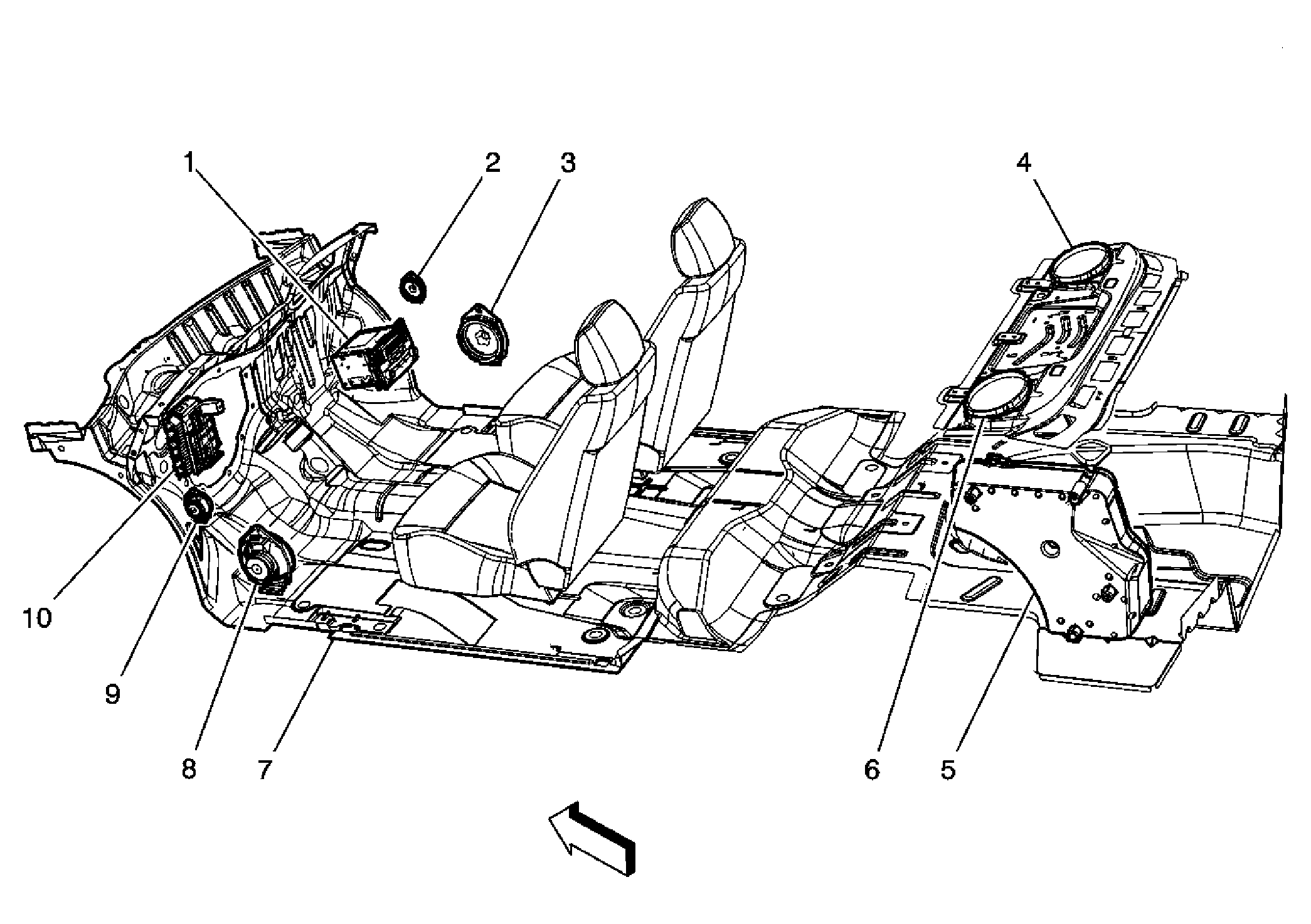

Fig 6: Audio System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Speaker - Right Front Tweeter (UQ3)
3	Speaker - Right Front
4	Speaker - Right Rear
5	Speaker - Subwoofer (UQ3)
6	Speaker - Left Rear
7	Floor Pan
8	Speaker - Left Front
9	Speaker - Left Front Tweeter (UQ3)
10	Audio Amplifier (UQ3)

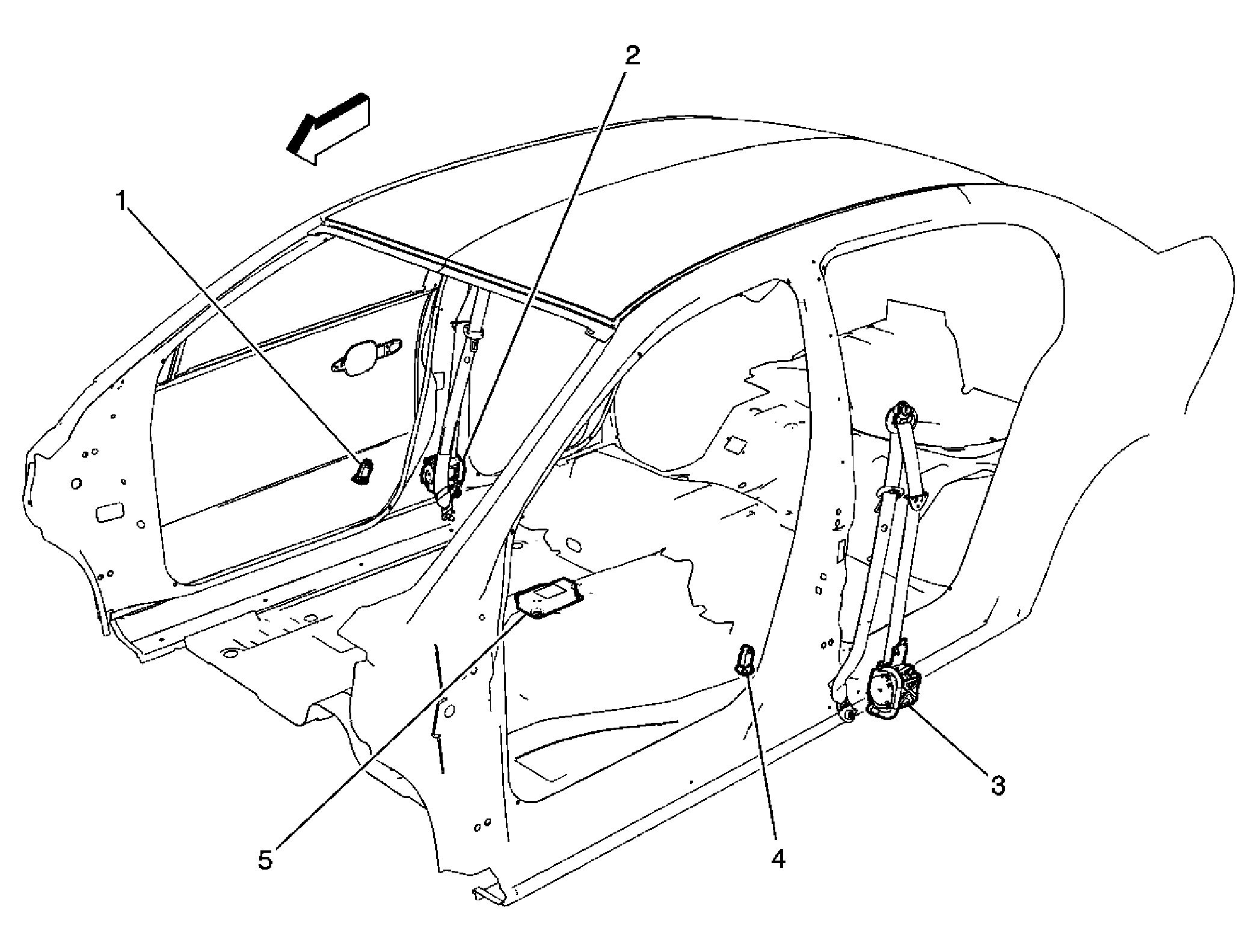

Fig 7: SIR Components - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
2	Seat Belt Retractor Pretensioner - Passenger
3	Seat Belt Retractor Pretensioner - Driver
4	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)

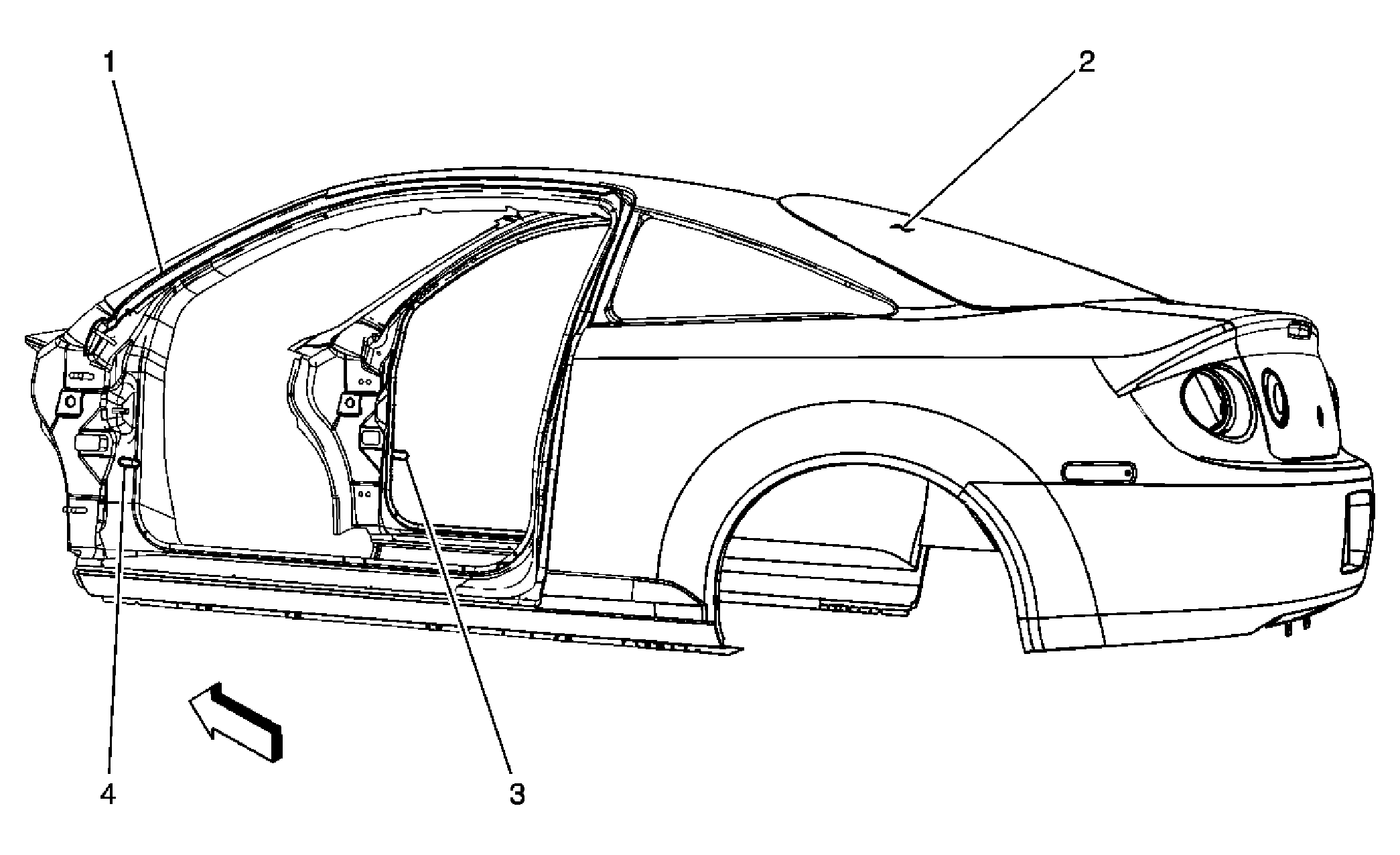

Fig 8: Door Jamb Switches - Coupe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Rear Window
3	Door Jamb Switch - Passenger
4	Door Jamb Switch - Driver

Fig 9: Door Jamb Switches - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Door Jamb Switch - Passenger
3	Door Jamb Switch - Right Rear
4	Rear Fascia
5	Door Jamb Switch - Left Rear
6	Door Jamb Switch - Driver

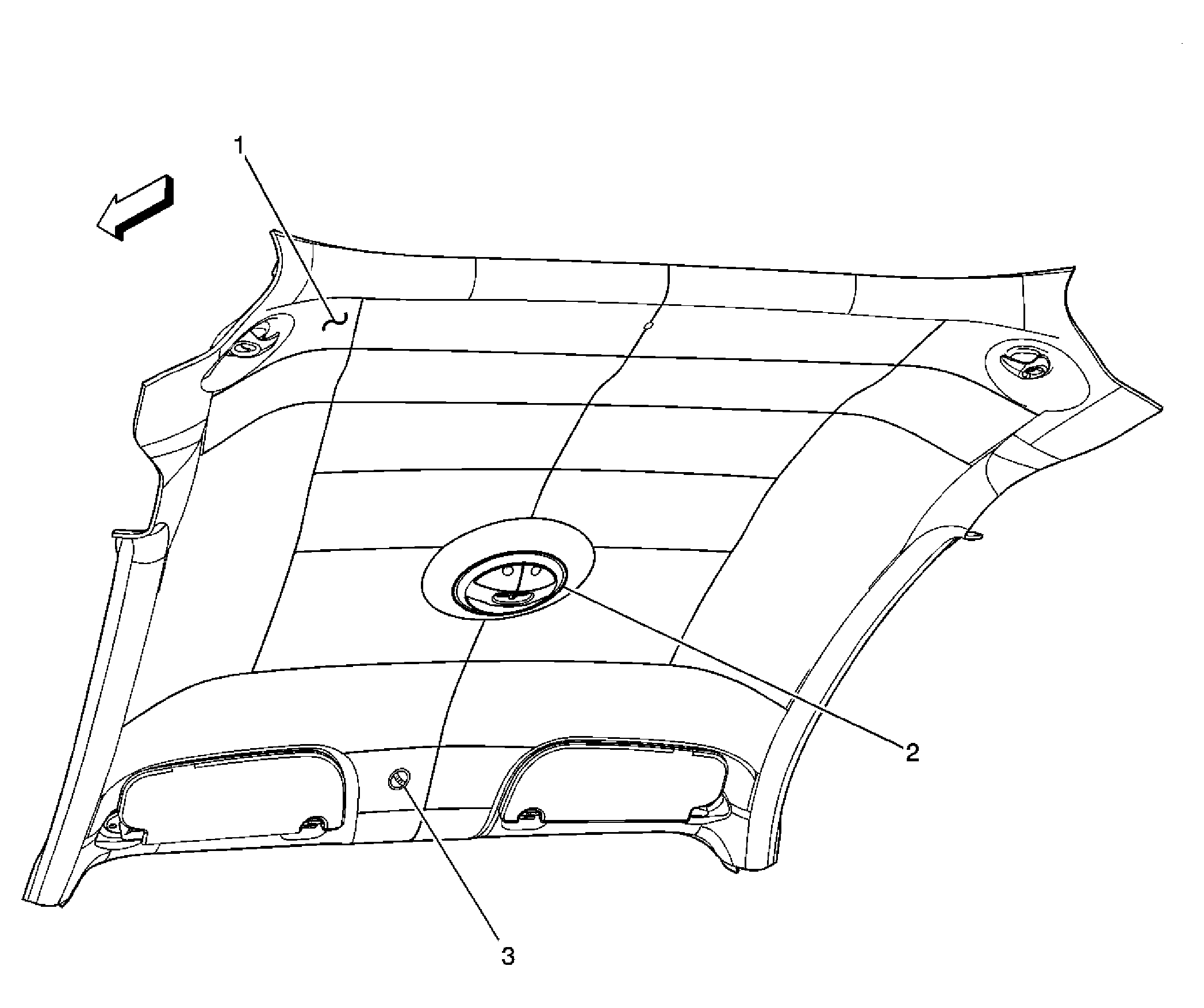

Fig 10: Headliner Components (without CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Telephone Microphone (UE1)
