X497 License Lamp Harness to License Lamp Assembly (G5)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
X497 License Lamp Harness to License Lamp Assembly (G5)

GM635009Courtesy of GENERAL MOTORS CORP.

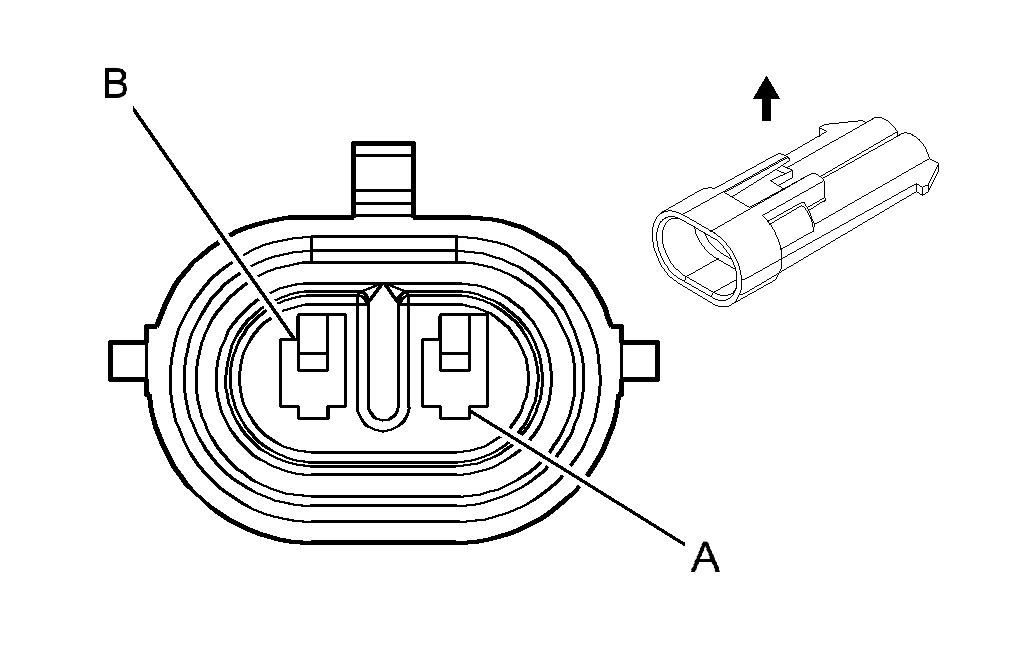

GM988127Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052641
  • Service: 12102747
  • Description: 2-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • OEM: 12052647
  • Service: 12125649
  • Description: 2-Way M Metri-Pack 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
 Terminal Part Information
  • Terminal/Tray: Service by Assembly - See Part Catalog
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
X497 License Lamp Harness to License Lamp Assembly (G5)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.35 BN 9 Tail/License Lamps Supply Voltage A 0.35 BN 9 Tail/License Lamps Supply Voltage
B 0.35 BK 750 Ground B 0.35 BK 750 Ground
