X400 Battery Cable to the Body Harness

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
X400 Battery Cable to the Body Harness

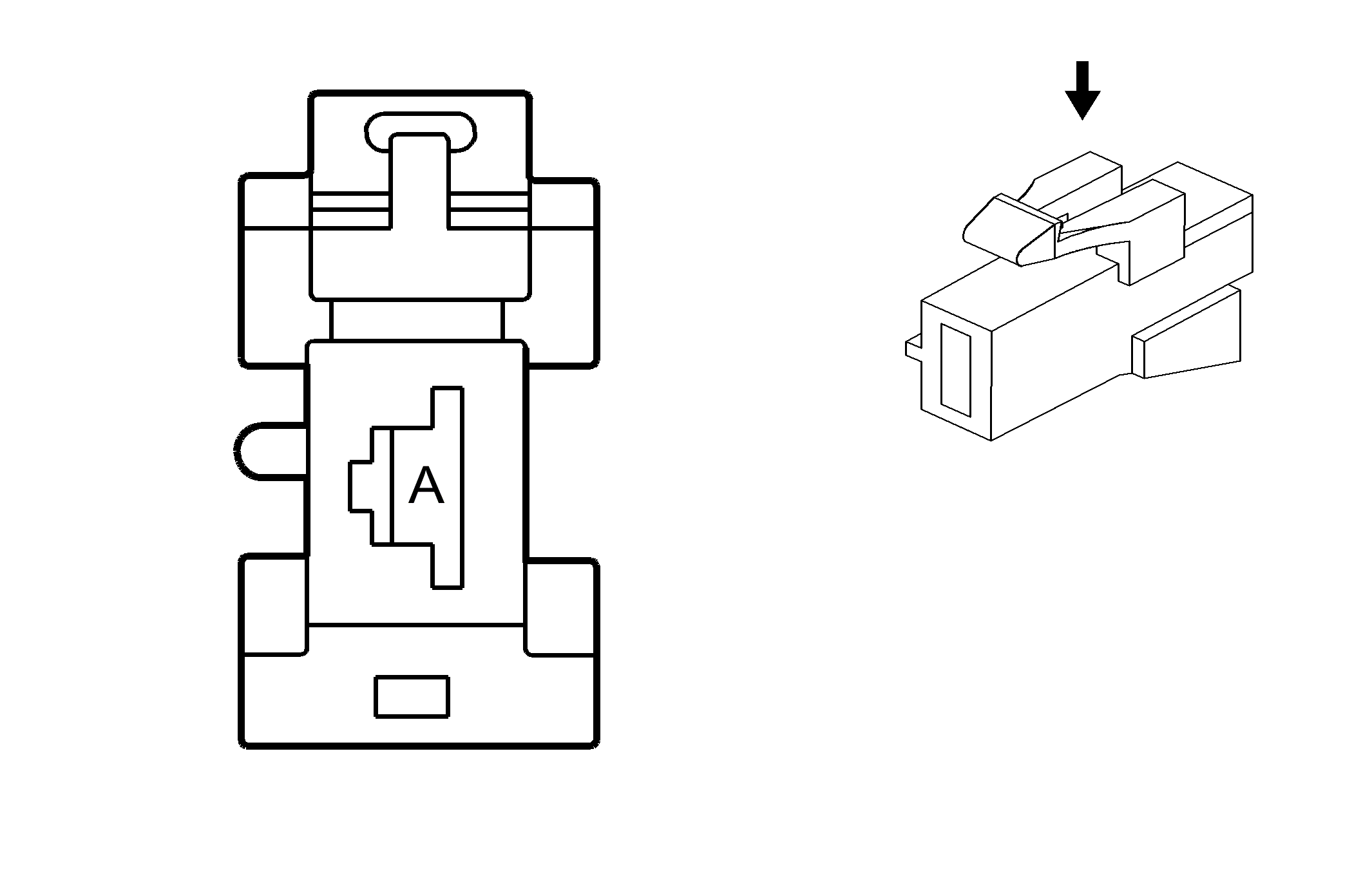

GM365960Courtesy of GENERAL MOTORS CORP.

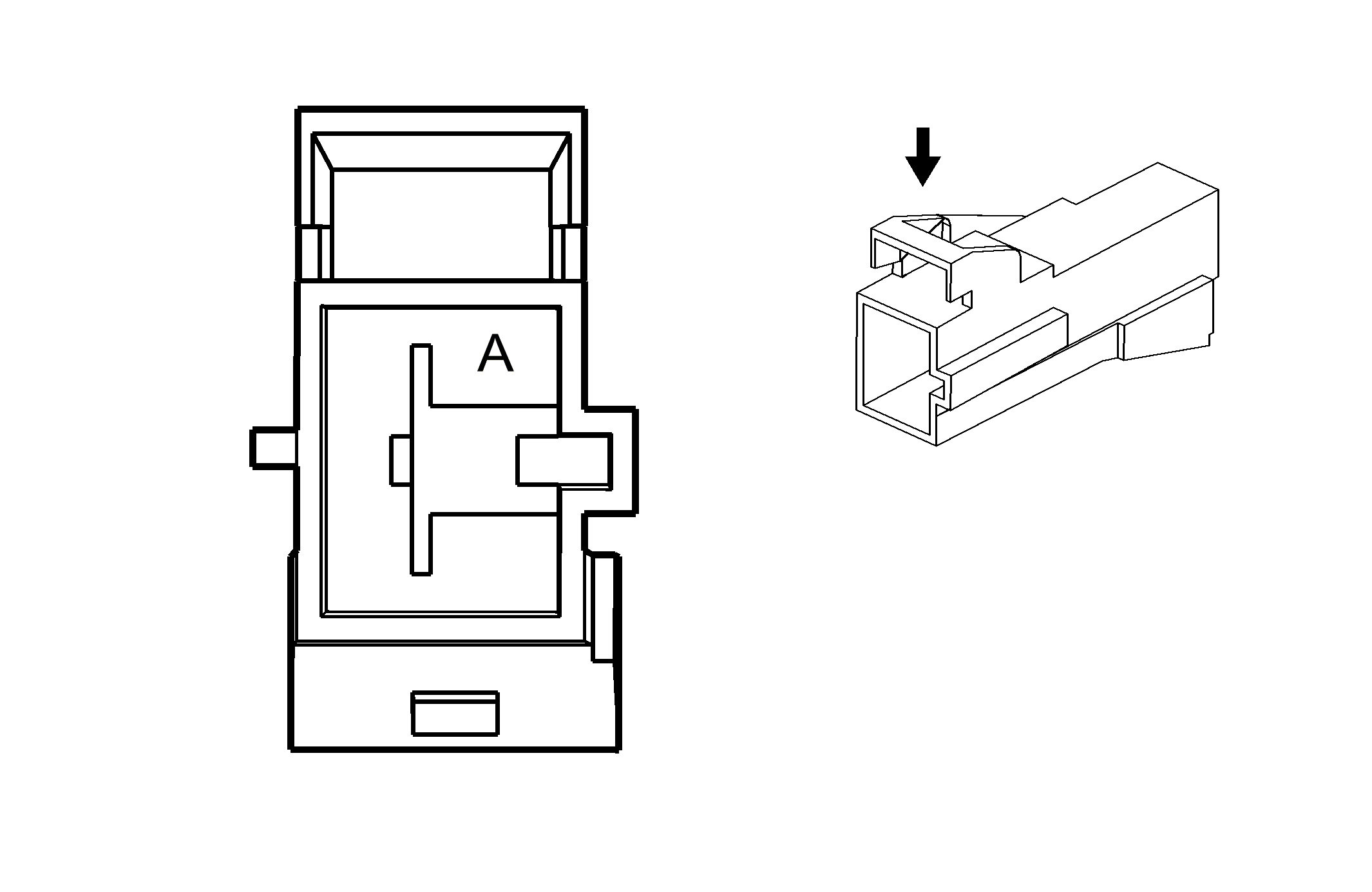

GM1644503Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12160893
  • Service: 15306159
  • Description: 1-Way F Metri-Pack 800 Series (BK)
 Connector Part Information
  • OEM: 12160894
  • Service: See Catalog
  • Description: 1-Way M Metri-Pack 800 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12092445/18
  • Core/Insulation Crimp: G/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
 Terminal Part Information
  • Terminal/Tray: 12110700/24
  • Core/Insulation Crimp: G/3/5
  • Release Tool/Test Probe: 12150860/J-35616-45 (YE)
X400 Battery Cable to the Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A 5 RD 1 Battery Positive Voltage A 5 RD 1 Battery Positive Voltage
