X320 Body Harness to Right Roof Rail Module Harness (ASF)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
X320 Body Harness to Right Roof Rail Module Harness (ASF)

GM295469Courtesy of GENERAL MOTORS CORP.

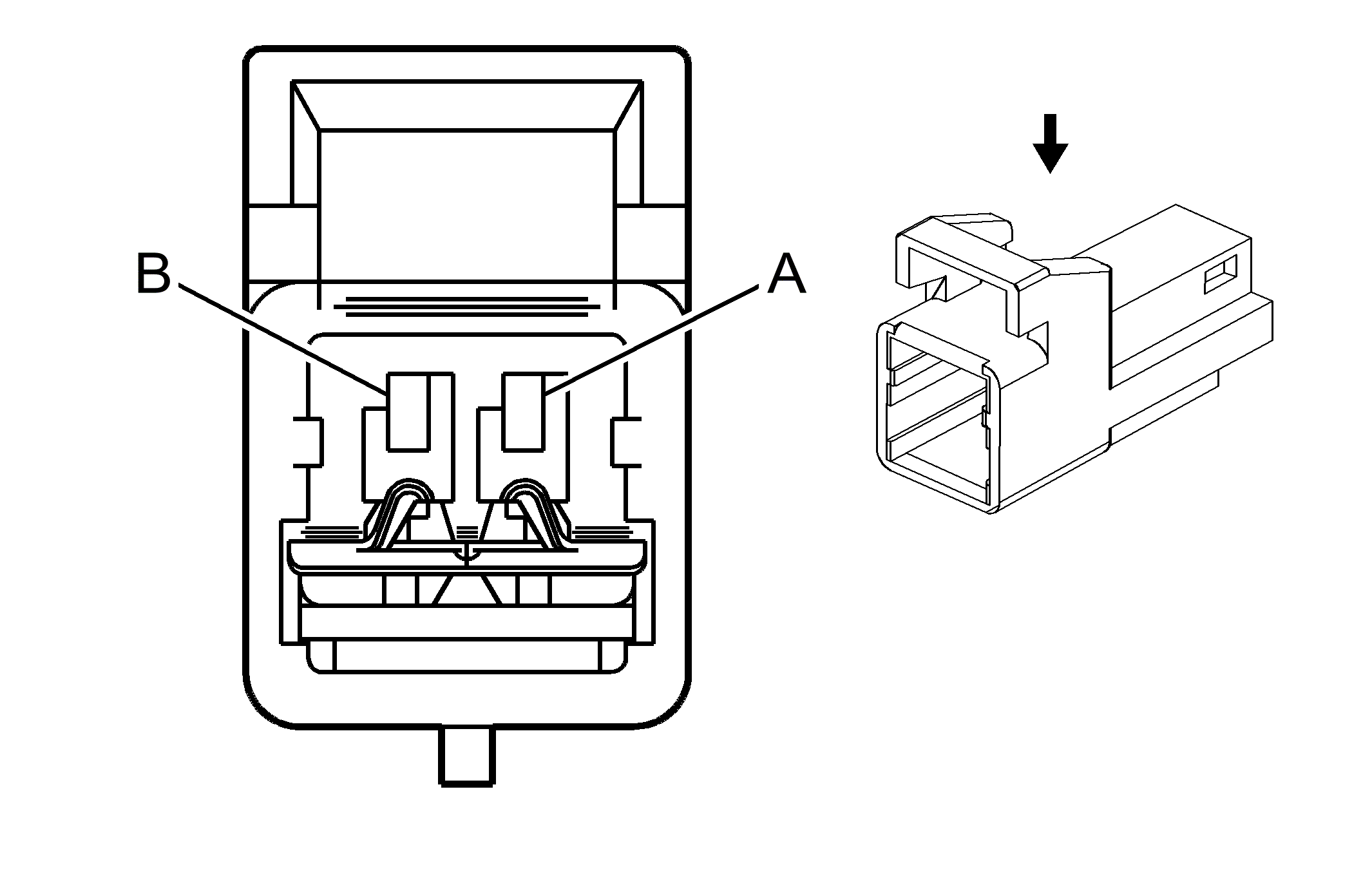

GM847212Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12110505
  • Service: 15306044
  • Description: 2-Way F Metri-Pack 150 Series (YE)
 Connector Part Information
  • OEM: 12160816
  • Service: 15306370
  • Description: 2-Way M Metri-Pack 150 Series (YE)
Terminal Part Information
  • Terminal/Tray: Service by Pigtail - See Part Catalog
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
 Terminal Part Information
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
X320 Body Harness to Right Roof Rail Module Harness (ASF)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.5 YE/BK 5021 Roof Rail Module - Right - High Control A 0.5 D-GN 5021 Roof Rail Module - Right - High Control
B 0.5 WH/BK 5022 Roof Rail Module - Right - Low Control B 0.5 WH 5022 Roof Rail Module - Right - Low Control
