X201 I/P Harness to the Body Harness

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
X201 I/P Harness to the Body Harness

GM1538788Courtesy of GENERAL MOTORS CORP.

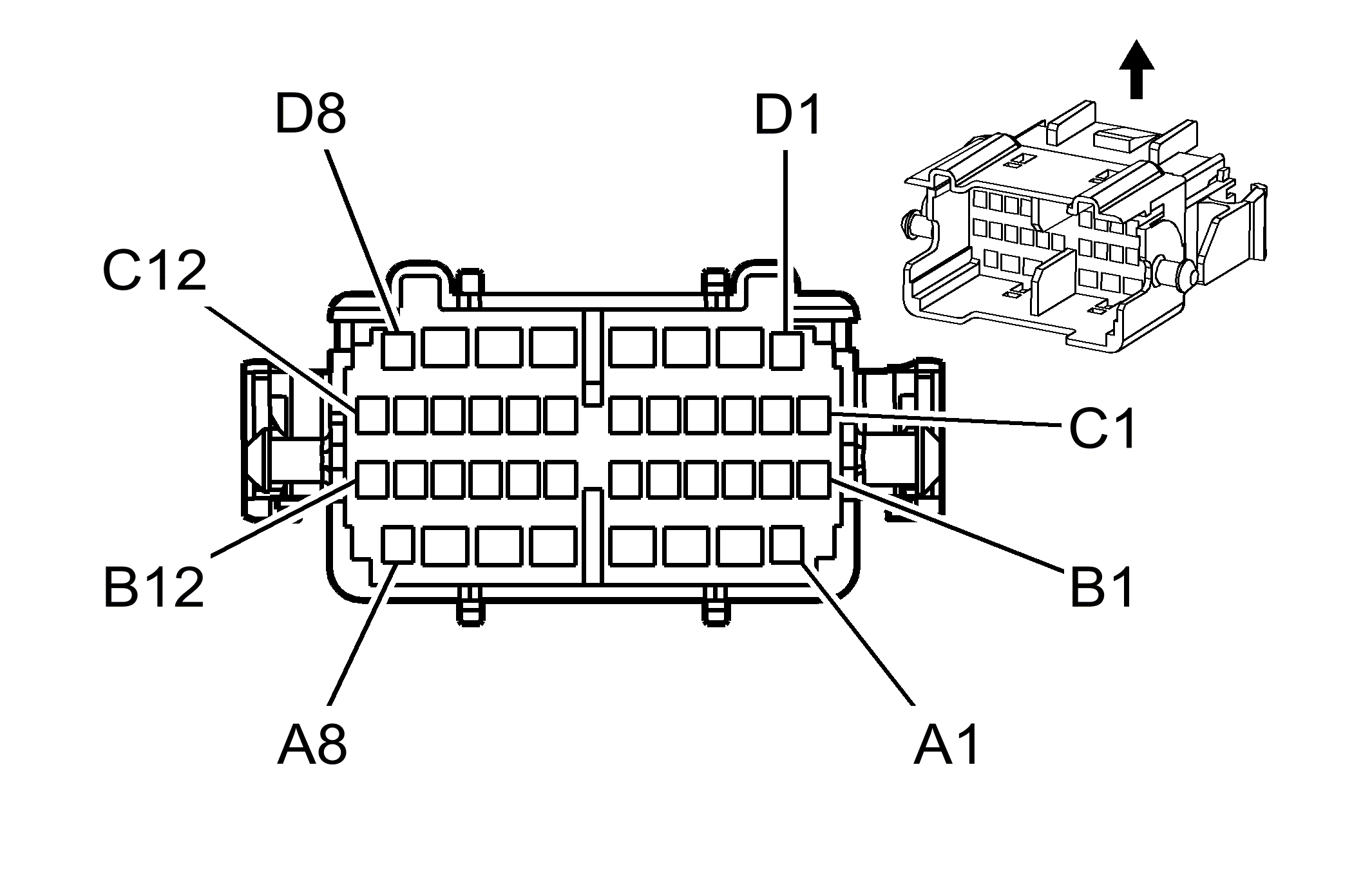

GM1243534Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15448129
  • Service: 89046969
  • Description: 40-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15475869
  • Service: 88988307
  • Description: 40-Way M GT 150, 280 Series (BK)
Terminal Part Information
  • Pins: A1, A2, A7, B1-B11, C1-C6, C8-C12, D1, D7, D8
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: Pins B7, B10, D7: C/A
  • Core/Insulation Crimp: Pins A1, A2, A7, B1-B6, B8, B9, B11, C1-C6, C8-C12, D1, D8: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A3, A5, A6, D3, D6
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins D: 62/A
  • Core/Insulation Crimp: Pins A3, A5, A6, D3: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
 Terminal Part Information
  • Pins: A1, A2, A7, B1-B11, C1-C6, C8-C12, D1, D7, D8
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: Pins B7, B10, C11, C12, D7: 2/4
  • Core/Insulation Crimp: Pins B6, B9, C3, C5, C6, D1, D8: E/4
  • Core/Insulation Crimp: Pins A1, A2, A7, B1-B5, B8, B11, C1, C2, C4, C8-C10: E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: A3, A5, A6, D3, D4
  • Terminal/Tray: 15304722/8
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pins: D6
  • Terminal/Tray: 15304724/8
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
X201 I/P Harness to the Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A1 0.35 L-BU 1162 APP Sensor 2 Signal A1 0.35 L-BU 1162 APP Sensor 2 Signal
A2 0.35 D-BU 1161 APP Sensor 1 Signal A2 0.35 D-BU 1161 APP Sensor 1 Signal
A3 - - Not Used A3 - - Not Used
A4 0.35 PK 353 I/P Module Suppression Indicator Control A4 0.35 PK 353 I/P Module Suppression Indicator Control
A5 0.5 GY 118 Left Front Speaker Output (-) (UQ3) A5 0.5 GY 118 Left Front Speaker Output (-) (UQ3)
0.35 GY 118 Left Front Speaker Output (-) 0.35 GY/BK 118 Left Front Speaker Output (-) (UQ4)
A6 0.35 PK 339 Ignition 1 Voltage (KA1) A6 0.35 PK 339 Ignition 1 Voltage (KA1)
0.35 PK 339 Ignition 1 Voltage (KA1)
A7 0.35 D-GN 5060 Low Speed GMLAN Serial Data A7 0.35 D-GN 5060 Low Speed GMLAN Serial Data
A8 0.35 OG/BK 556 Steering Wheel Position Sensor Low Reference (JL4/JL9) A8 0.5 OG/BK 556 Steering Wheel Position Sensor Low Reference (JL4/JL9)
B1 0.35 PU 1272 Low Reference B1 0.35 PU 1272 Low Reference
B2 0.35 BN 1271 Low Reference B2 0.35 BN 1271 Low Reference
B3-B4 - - Not Used B3-B4 - - Not Used
B5 0.35 D-BU/WH 7361 Clutch Pedal Position Sensor Supply Voltage (M86) B5 0.35 D-BU/WH 7361 Clutch Pedal Position Sensor Supply Voltage (M86)
0.5 GY 2709 5-Volt Reference (MU3) 0.5 GY 2709 5-Volt Reference (MU3)
B6 0.35 OG/BK 7360 Clutch Pedal Position Sensor Return (M86) B6 0.35 L-GN 7360 Clutch Pedal Position Sensor Return (M86)
0.5 TN 2759 Low Reference (MU3) 0.5 TN 2759 Low Reference (MU3)
B7 0.35 L-GN 6338 Clutch Pedal Position Sensor Signal (M86/MU3) B7 0.35 L-GN 6338 Clutch Pedal Position Sensor Signal (M86/MU3)
B8 0.35 TN 1274 5-Volt Reference B8 0.35 TN 1274 5-Volt Reference
B9 0.35 TN/BK 723 SIR Enable Signal - Passenger B9 0.35 TN/BK 723 SIR Enable Signal - Passenger
B10 0.5 D-GN/WH 1932 Ignition Lock Cylinder Control Actuator Signal (MN5) B10 0.5 D-GN/WH 1932 Ignition Lock Cylinder Control Actuator Signal (MN5)
B11 0.35 WH/BK 1164 5-Volt Reference B11 0.35 WH/BK 1164 5-Volt Reference
B12 0.35 TN 891 Boost Gage Signal (LNF) B12 0.35 TN 891 Boost Gage Signal (LNF)
C1 0.35 PK 1501 Driver Heated Seat High/Low Signal (KA1) C1 0.35 PK 1501 Driver Heated Seat High/Low Signal (KA1)
C2 0.8 L-GN/BK 1794 Rear Subwoofer Speaker Output (-) (UQ3) C2 0.8 L-GN/BK 1794 Rear Subwoofer Speaker Output (-) (UQ3)
C3 0.8 D-BU/WH 346 Rear Subwoofer Speaker Output (+) (UQ3) C3 0.8 D-BU/WH 346 Rear Subwoofer Speaker Output (+) (UQ3)
C4 0.35 L-BU 1462 Heated Seat Switch Signal (KA1) C4 0.35 L-BU 1462 Heated Seat Switch Signal (KA1)
C5 0.35 TN/BK 2500 High Speed GMLAN Serial Data Bus+ C5 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
C6 0.35 TN 2501 High Speed GMLAN Serial Data Bus- C6 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
C7 0.35 L-BU 1788 Traction Control Switch Signal (JL4/JL9) C7 0.35 L-BU 1788 Traction Control Switch Signal (JL4/JL9)
C8 0.35 BN/WH 419 MIL Control C8 0.35 BN/WH 419 MIL Control
C9 0.35 L-GN 1715 Windshield Wiper Switch High Signal C9 0.35 L-GN 1715 Windshield Wiper Switch High Signal
C10 0.35 PK/WH 1970 Headlamp Low Beam Relay Control C10 0.35 PK/WH 1970 Headlamp Low Beam Relay Control
C11 0.5 YE/BK 116 Left Rear Speaker Output (-) (UQ3) C11 1 YE/BK 116 Left Rear Speaker Output (-) (UQ3)
0.35 YE/BK 116 Left Rear Speaker Output (-) (UQ4) 0.5 YE 116 Left Rear Speaker Output (-) (UQ4)
C12 0.5 BN 199 Left Rear Speaker Output (+) (UQ3) C12 0.8 BN/BK 199 Left Rear Speaker Output (+) (UQ3)
0.35 BN 199 Left Rear Speaker Output (+) (UQ4) 0.5 BN 199 Left Rear Speaker Output (+) (UQ4)
D1 0.5 TN 201 Left Front Speaker Output (+) (UQ3) D1 0.5 TN/BK 201 Left Front Speaker Output (+) (UQ3)
0.35 TN 201 Left Front Speaker Output (+) (UQ4) 0.5 TN 201 Left Front Speaker Output (+) (UQ4)
D2 0.35 GY 1056 5-Volt Reference (JL4/JL9) D2 0.35 GY 1056 5-Volt Reference (JL4/JL9)
D3 0.8 RD/WH 40 Battery Positive Voltage D3 0.8 RD/WH 40 Battery Positive Voltage
0.8 RD/WH 40 Battery Positive Voltage
D4 0.5 RD/WH 240 Battery Positive Voltage D4 0.5 RD/WH 240 Battery Positive Voltage
D5 0.5 PK/BK 6434 CAN Bus High Serial Data (JL4/JL9) D5 0.5 PK/BK 6434 CAN Bus High Serial Data (JL4/JL9)
0.5 YE 6434 CAN Bus High Serial Data (JL4/JL9)
D6 0.5 GY/BK 6435 CAN Bus Low Serial Data (JL4/JL9) D6 0.5 L-GN 6435 CAN Bus Low Serial Data (JL4/JL9)
0.5 GY/BK 6435 CAN Bus Low Serial Data (JL4/JL9)
D7 0.8 D-GN 1795 Right Subwoofer Speaker Output (+) (UQ3) D7 0.8 D-GN 1795 Right Subwoofer Speaker Output (+) (UQ3)
D8 0.8 L-BU/BK 315 Right Subwoofer Speaker Output (-) (UQ3) D8 0.8 L-BU/BK 315 Right Subwoofer Speaker Output (-) (UQ3)
