Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Oil Level Indicator Tube
    GM1647397Courtesy of GENERAL MOTORS CORP.
  1. Install NEW oil level indicator tube O-ring seals, if necessary.
  2. Install the oil level indicator tube.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil level indicator tube bolt and tighten to 10 N.m (89 lb in).

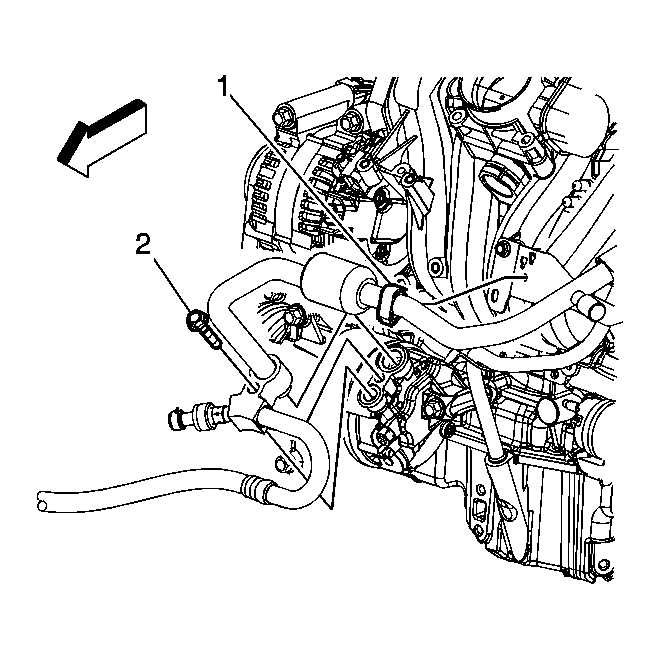

    4. Fig 2: View Of Air Conditioning (A/C) Compressor/Condenser Line Clip
    GM1694737Courtesy of GENERAL MOTORS CORP.
  4. Install the A/C compressor/condenser line clip (1) to the oil level indicator tube bracket.
    5. Fig 3: View Of Engine Harness Clip
    GM1656100Courtesy of GENERAL MOTORS CORP.
  5. Install the engine harness clip (1) to the oil level indicator tube bracket.
    6. Fig 4: Oil Level Indicator
    GM1571745Courtesy of GENERAL MOTORS CORP.
  6. Install the oil level indicator.
  7. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
