Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

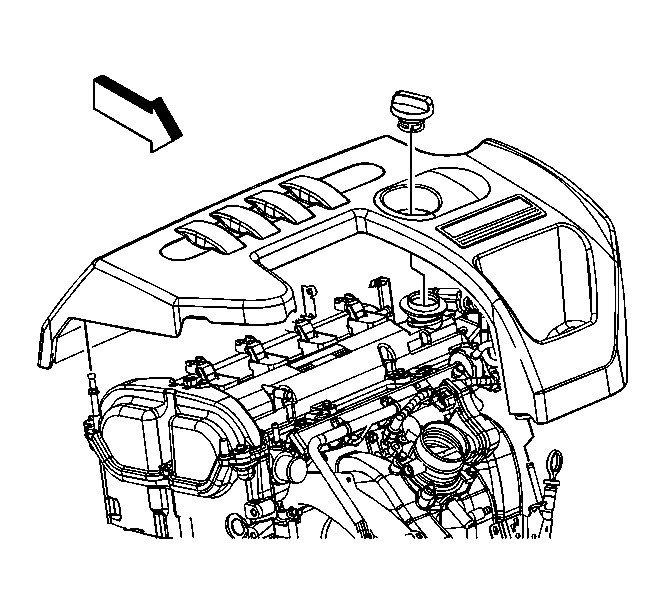

Fig 1: View Of Intake Manifold Cover

Courtesy of GENERAL MOTORS CORP.

Place the intake manifold cover onto the engine over the studs.
Push down on the intake manifold cover directly over the lower right stud in order to engage the cover to the stud.
Push down on the intake manifold cover directly over the upper left stud in order to engage the cover to the stud.
Install the engine oil fill cap.
