Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

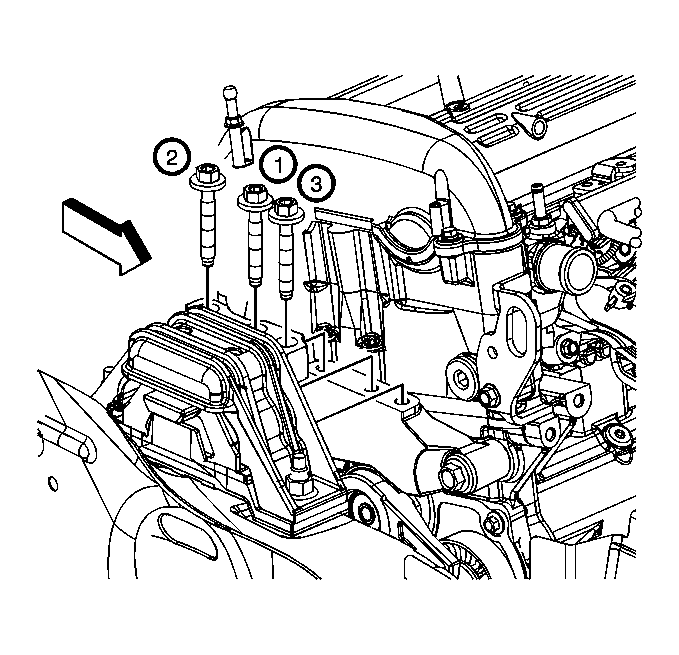

    Fig 1: View Of Engine Mount To Bracket Bolts
    GM1656093Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Support the engine with a hydraulic floor jack. Use a piece of wood between the floor jack and the oil pan.
  3. Remove the engine mount to bracket bolts.

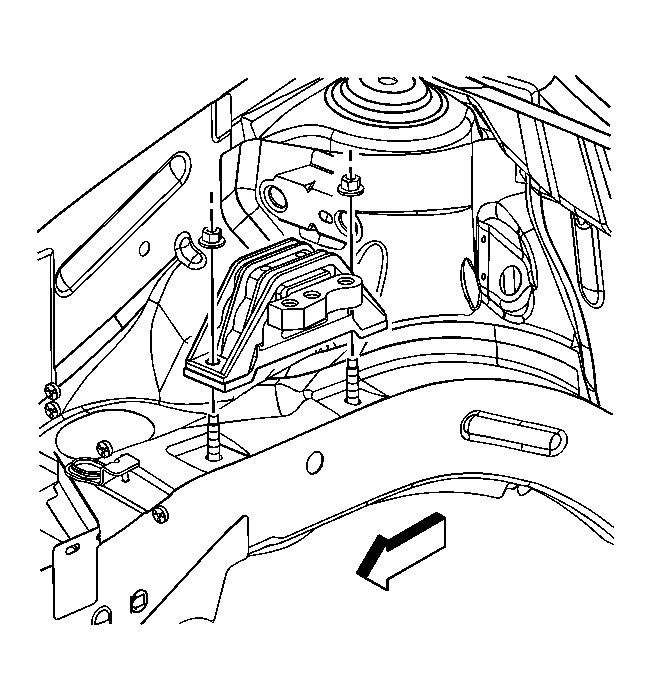

    4. Fig 2: View Of Engine Mount
    GM1647351Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount to side rail nuts.
  5. Remove the engine mount from the engine compartment.
