Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

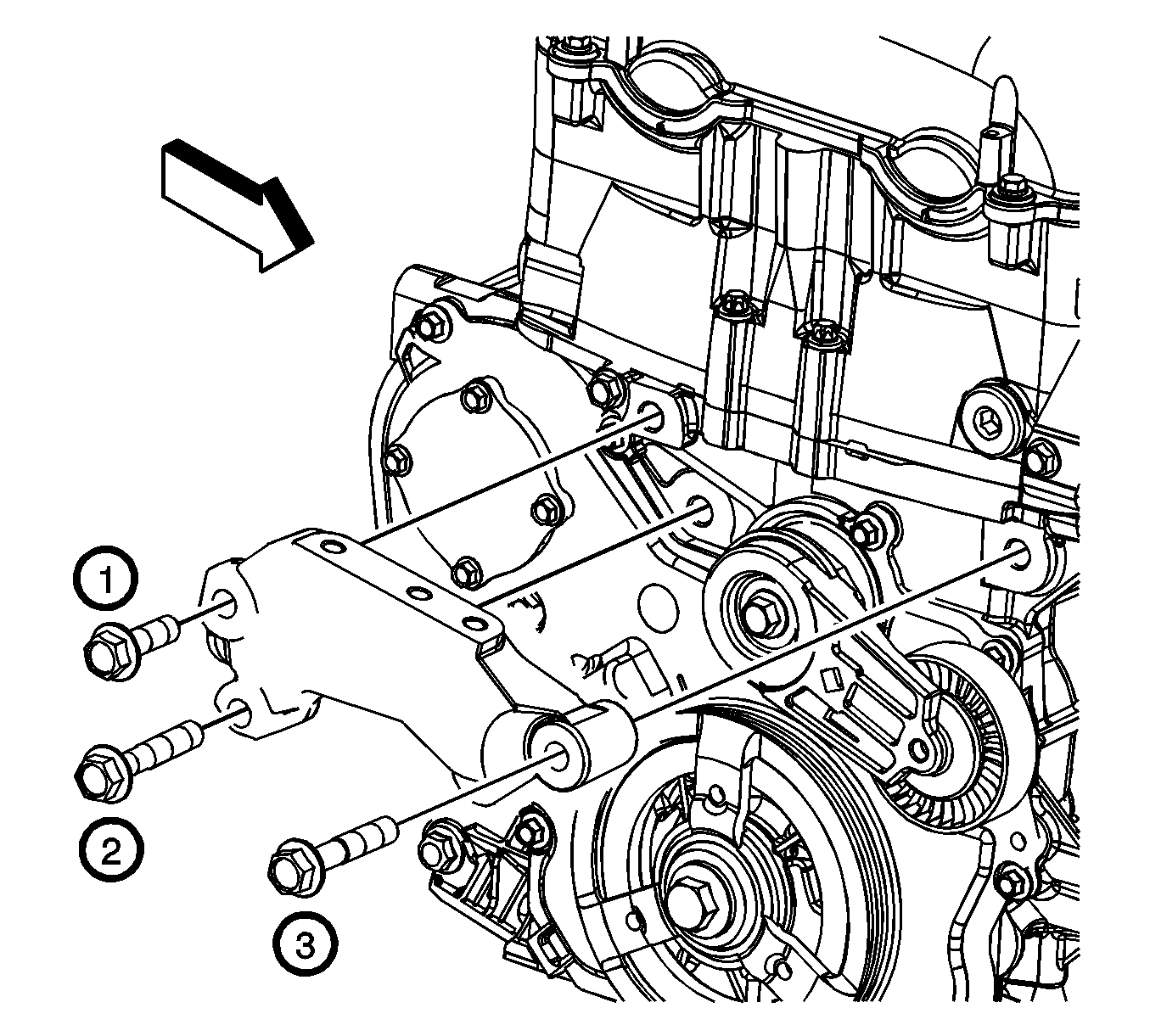

    Fig 1: View Of Engine Mount Bracket To Engine Bolts
    GM1656094Courtesy of GENERAL MOTORS CORP.
  1. Position the engine mount bracket to the engine.
  2. Install the engine mount bracket bolts in the following locations:
    • The long bolts in the forward and lower front holes
    • The short bolt in the upper rear hole
    3. CAUTION: Refer to Fastener Caution .
  3. Tighten the engine mount bracket bolts in the sequence shown to 100 N.m (74 lb ft).
  4. Install the engine mount. Refer to Engine Mount Replacement .
