Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

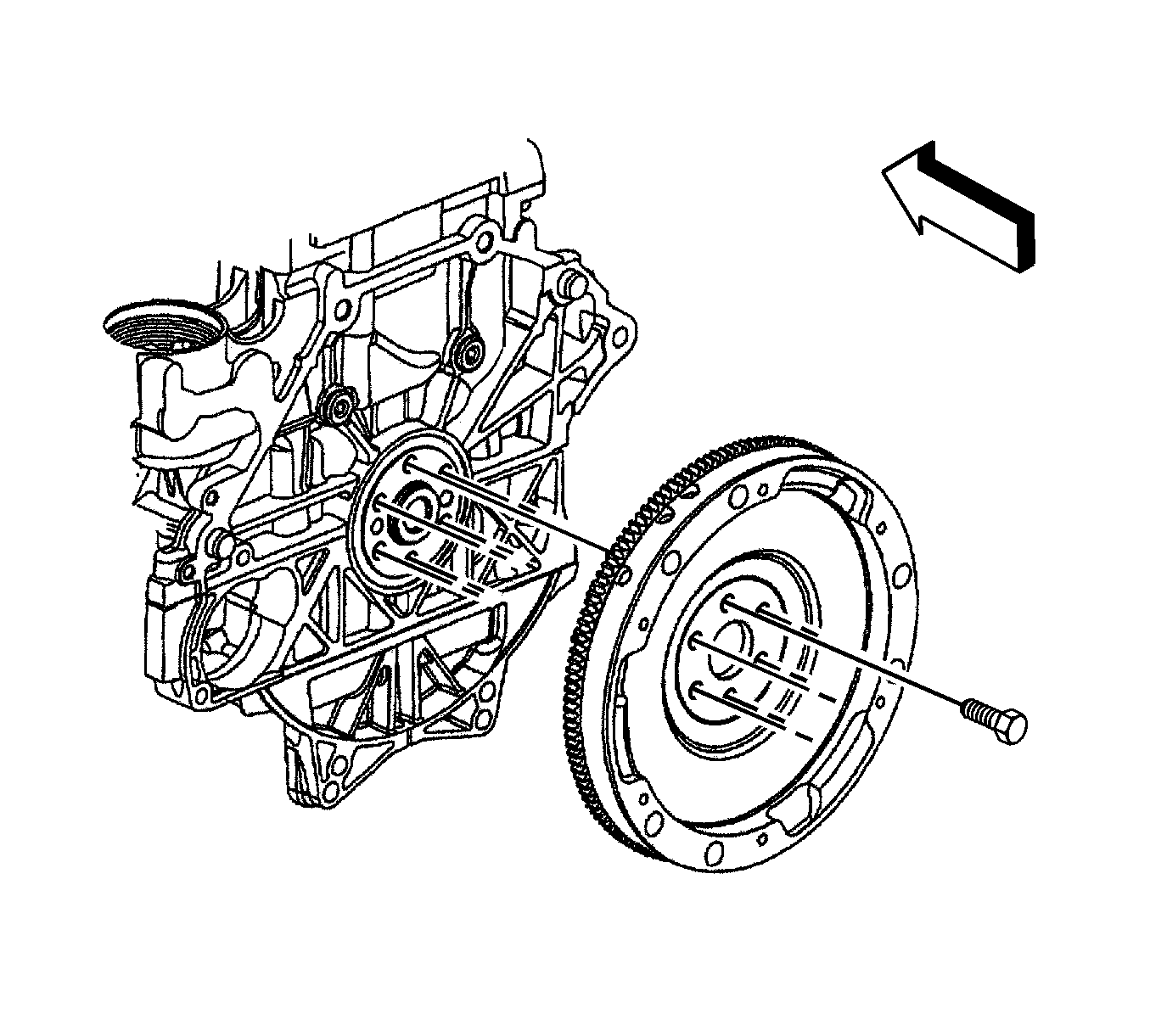

    Fig 1: View Of Flywheel (Manual Transaxle)
    GM1625312Courtesy of GENERAL MOTORS CORP.
  1. Install the manual transaxle flywheel, if equipped.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the NEW manual transaxle flywheel bolts, if equipped.

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft) plus an additional 25 degrees using the J 45059  .

    3. Fig 2: View Of Flywheel (Automatic Transaxle)
    GM1578311Courtesy of GENERAL MOTORS CORP.
  3. Install the automatic transaxle flywheel, if equipped.
  4. Install the NEW automatic transaxle flywheel bolts, if equipped.

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft) plus an additional 25 degrees using the J 45059  .

  5. Remove the J 38122-A  .
  6. If equipped with a manual transaxle, install the clutch. Refer to Clutch Pressure and Driven Plate Replacement .
  7. If equipped with a automatic transaxle, install the transaxle. Refer to Transmission Replacement .
