Exhaust Manifold Replacement (LNF)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

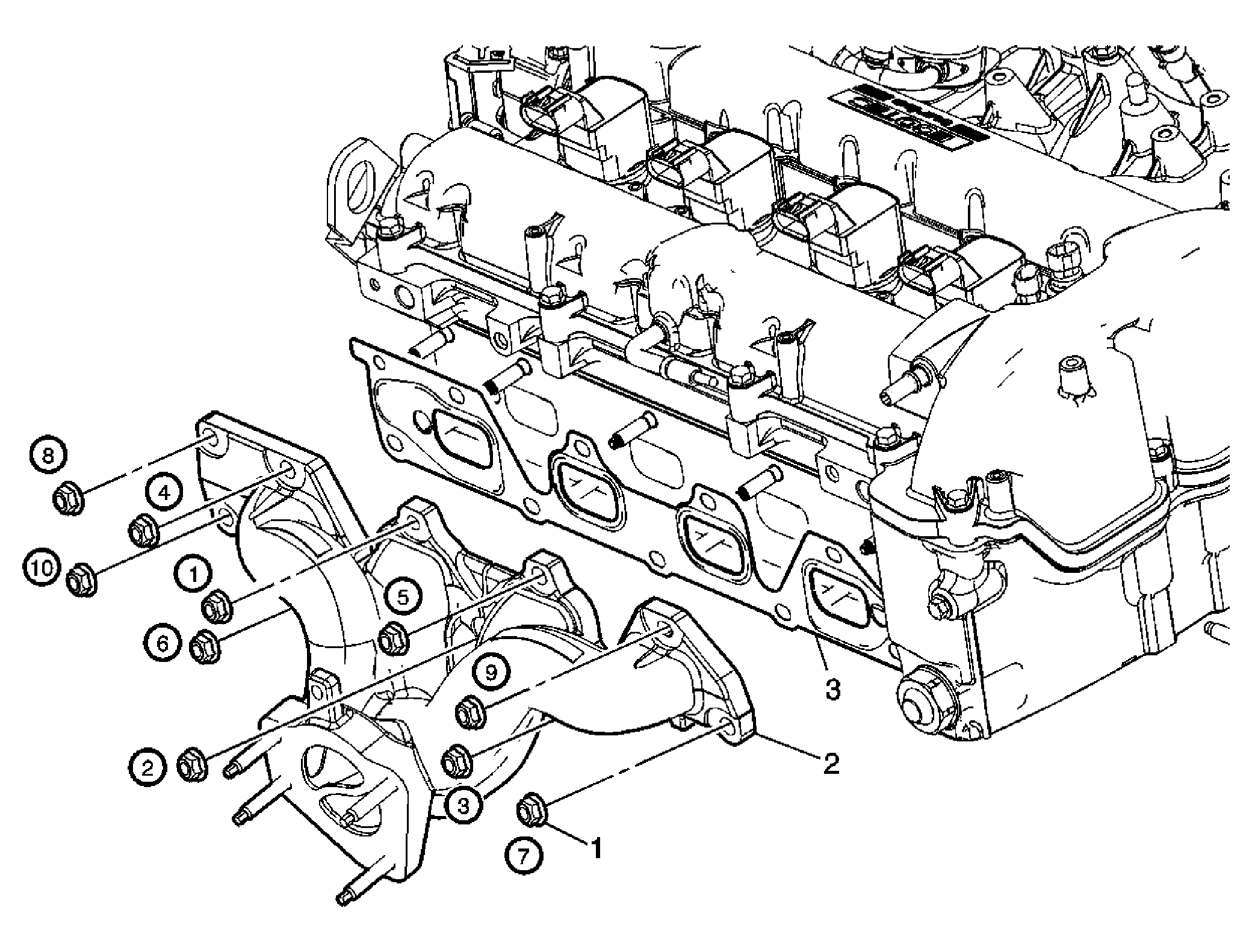

Fig 1: View Of Exhaust Manifold & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the turbo charger. Refer to Turbocharger Replacement . Disconnect the catalytic converter. Refer to Catalytic Converter Replacement (LNF) . Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement .
1	Exhaust Manifold Nut (Qty: 10) CAUTION: Refer to Fastener Caution . Tip: Install NEW exhaust manifold nuts. Tighten: 14 N.m (124 lb in)
2	Exhaust Manifold
3	Exhaust Manifold Gasket Tip: Discard the old gasket and install a new gasket.
