Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

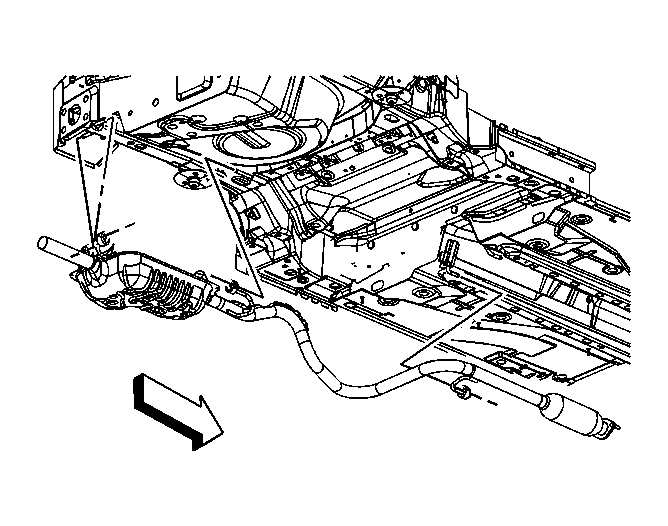

    Fig 1: Exhaust Pipe Insulators
    GM1631769Courtesy of GENERAL MOTORS CORP.
  1. Remove the catalytic converter. Refer to Catalytic Converter Replacement (LNF)  or Catalytic Converter Replacement (LAP) .
  2. To aid in removal, spray a non petroleum based lubricant onto the insulators.
  3. Remove the insulators from the resonator pipe and the muffler.
  4. Using a suitable jack stand for support, lower the resonator pipe and the muffler for clearance.

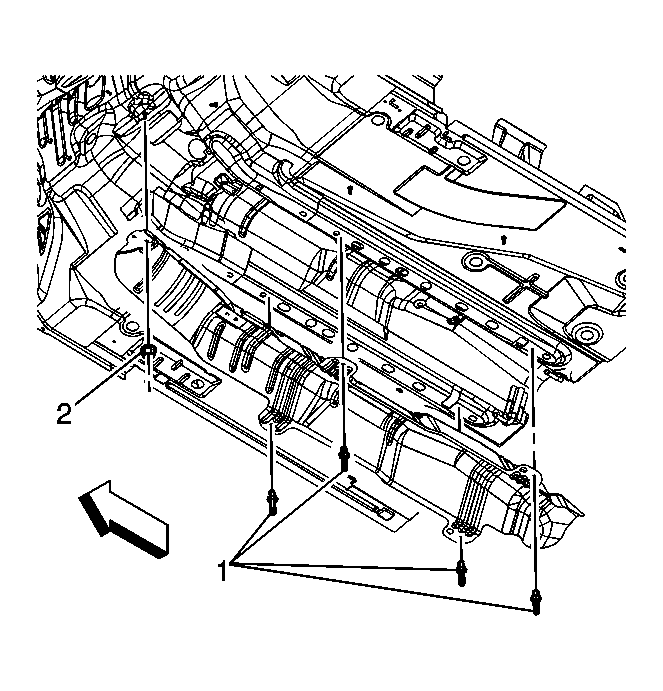

    5. Fig 2: View Of Heat Shield, Rivets & Nuts
    GM1631773Courtesy of GENERAL MOTORS CORP.
  5. Drill out and remove the 4 heat shield rivets (1).
  6. Remove the heat shield nut (2).
  7. Remove the heat shield.
