Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61)  or Cooling System Draining and Filling (Static Fill LNF)  or Cooling System Draining and Filling (GE 47716 Fill) .
    2. Fig 1: Surge Tank
    GM1548519Courtesy of GENERAL MOTORS CORP.
  2. Reposition the surge tank inlet hose clamp using J 38185  . See Special Tools .
  3. Remove the surge tank inlet hose from the surge tank.
  4. Remove the underhood junction block and bracket. Refer to Underhood Electrical Center or Junction Block Bracket Replacement
    5. Fig 2: Identifying Surge Tank Outlet Hose
    GM1548520Courtesy of GENERAL MOTORS CORP.
  5. Lift the surge tank and reposition the surge tank outlet hose clamp using J 38185  . See Special Tools .
  6. Remove the surge tank outlet hose.

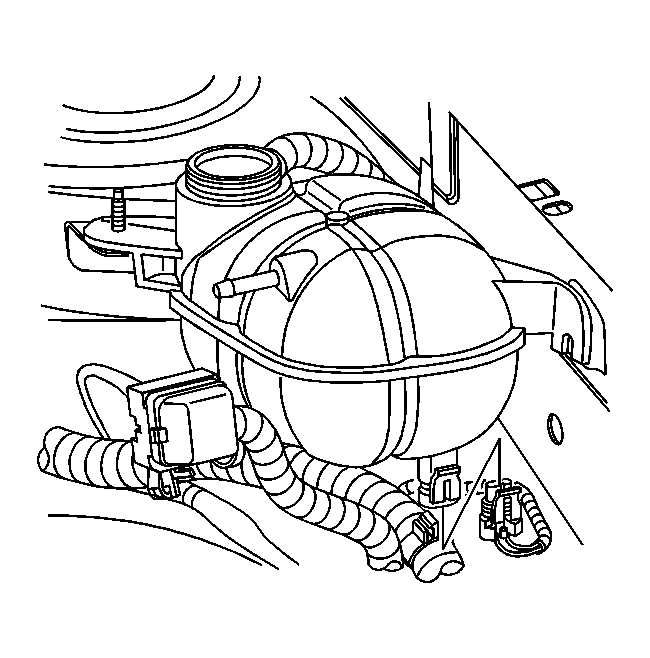

    7. Fig 3: View Of Coolant Level Sensor Electrical Connector
    GM873721Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the coolant level sensor electrical connector.
  8. Remove the surge tank.
