Radiator Surge Tank Outlet Hose/Pipe Replacement (LNF)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

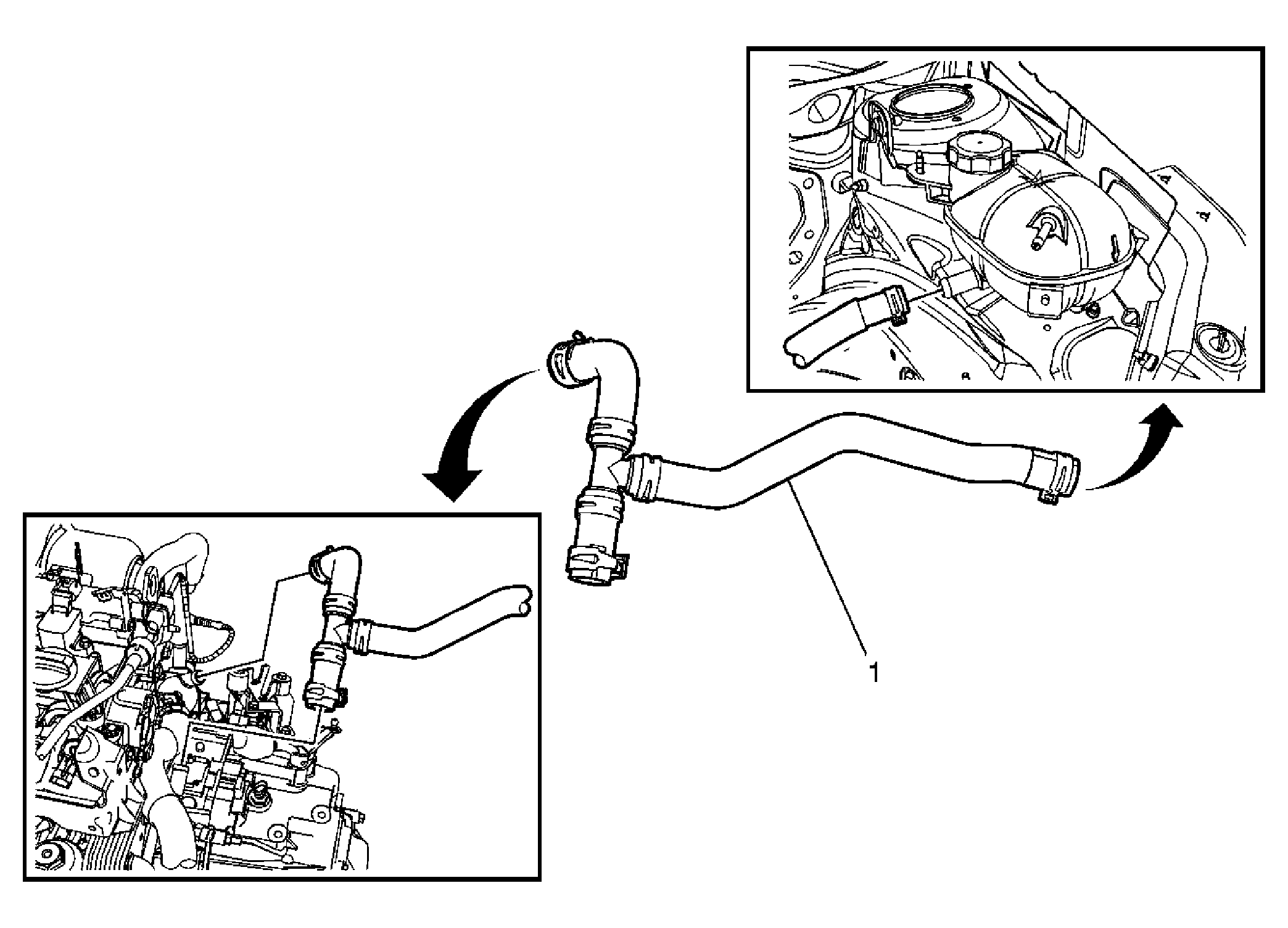

Fig 1: View Of Radiator Surge Tank Outlet Hose/Pipe (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61) or Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) . Remove the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .
1	Radiator Surge Tank Outlet Hose Procedure: Reposition the surge tank outlet hose clamp using J 38185 . See Special Tools . Special Tools: J-38185: Hose Clamp Pliers

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61) or Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) .
Remove the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .

Radiator Surge Tank Outlet Hose
Procedure:
Reposition the surge tank outlet hose clamp using J 38185 . See Special Tools .
Special Tools:
J-38185: Hose Clamp Pliers
