Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders, and the person removing the cap. Serious bodily injury may result.

Remove the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement .

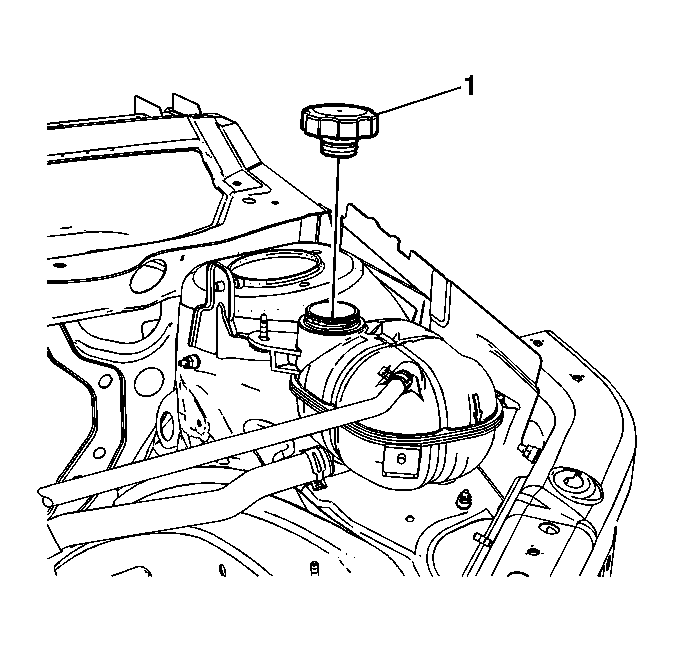

Fig 1: View Of Surge Tank Cap

Courtesy of GENERAL MOTORS CORP.

Remove the surge tank cap (1).

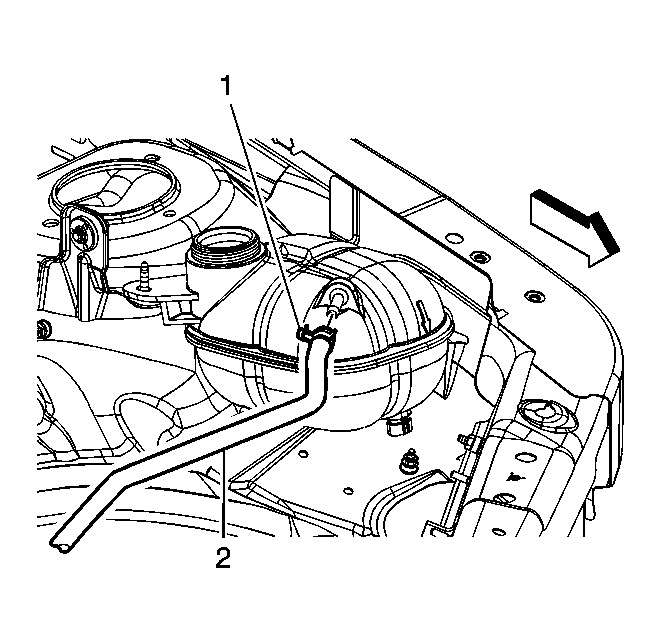

Fig 2: Identifying Surge Tank Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Reposition the surge tank inlet hose clamp (1) using J 38185 . See Special Tools .
Remove the surge tank inlet hose (2) from the surge tank.

Fig 3: Identifying Surge Tank Inlet Hoses, Pipe & Clamps

Courtesy of GENERAL MOTORS CORP.

Reposition the surge tank inlet hose clamp (1) using J 38185 . See Special Tools .
Remove the surge tank inlet hose (2) from the engine.
