Radiator Outlet Hose Replacement (LNF)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

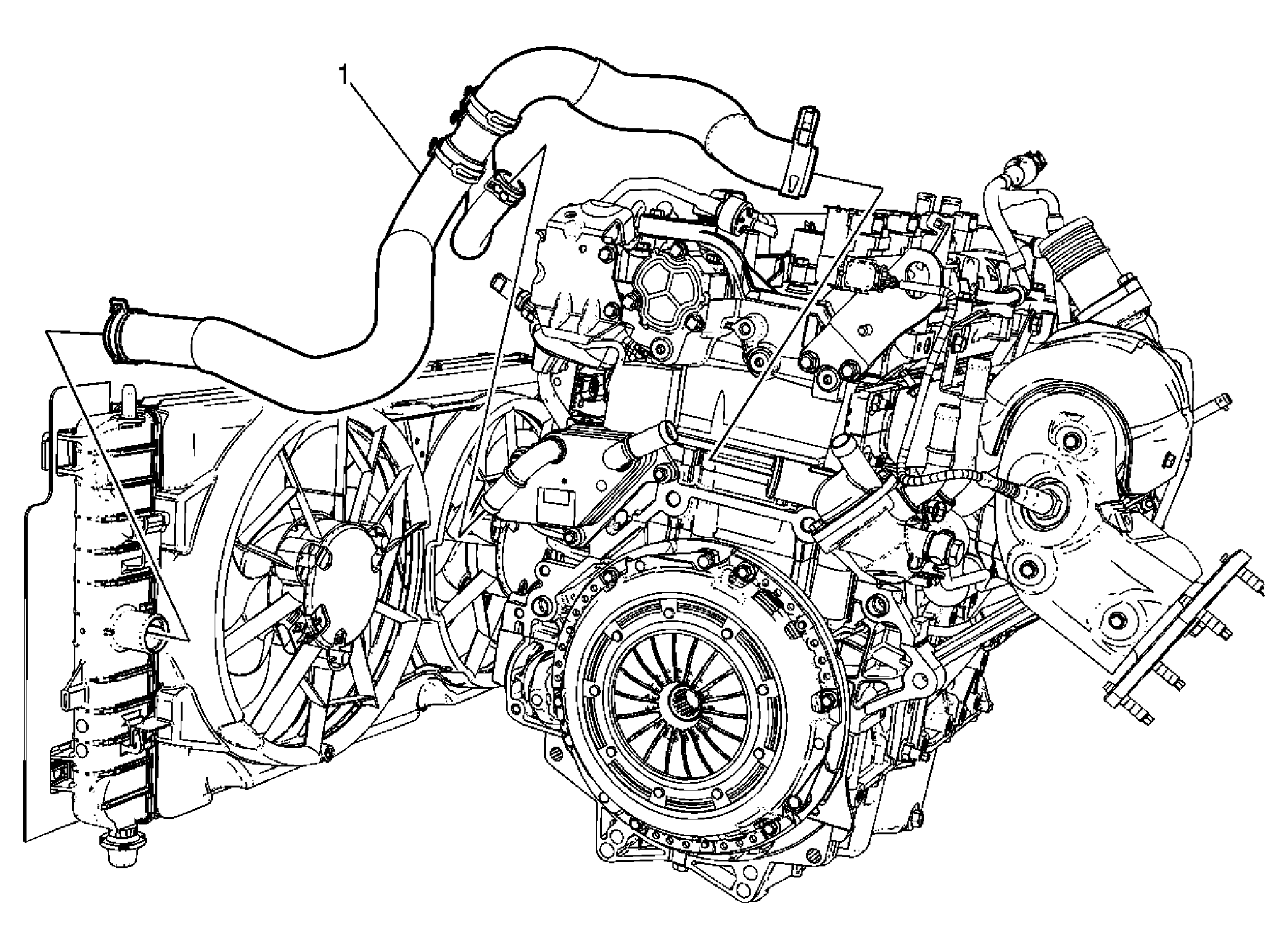

Fig 1: View Of Radiator Outlet Hose (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) . Remove the underhood electrical junction block bracket. Refer to Underhood Electrical Center or Junction Block Bracket Replacement
1	Radiator Outlet Hose Assembly Tip: Using J 38185 , position the radiator outlet hose clamps aside and remove the hose from the fittings. See Special Tools . Note routing of the radiator outlet hose to ensure proper installation. Special Tools: J-38185: Hose Clamp Pliers

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) .
Remove the underhood electrical junction block bracket. Refer to Underhood Electrical Center or Junction Block Bracket Replacement

Radiator Outlet Hose Assembly
Tip:

Using J 38185 , position the radiator outlet hose clamps aside and remove the hose from the fittings. See Special Tools .
Note routing of the radiator outlet hose to ensure proper installation.

Special Tools:
J-38185: Hose Clamp Pliers
