Radiator Outlet Hose Replacement (LE5, L61)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

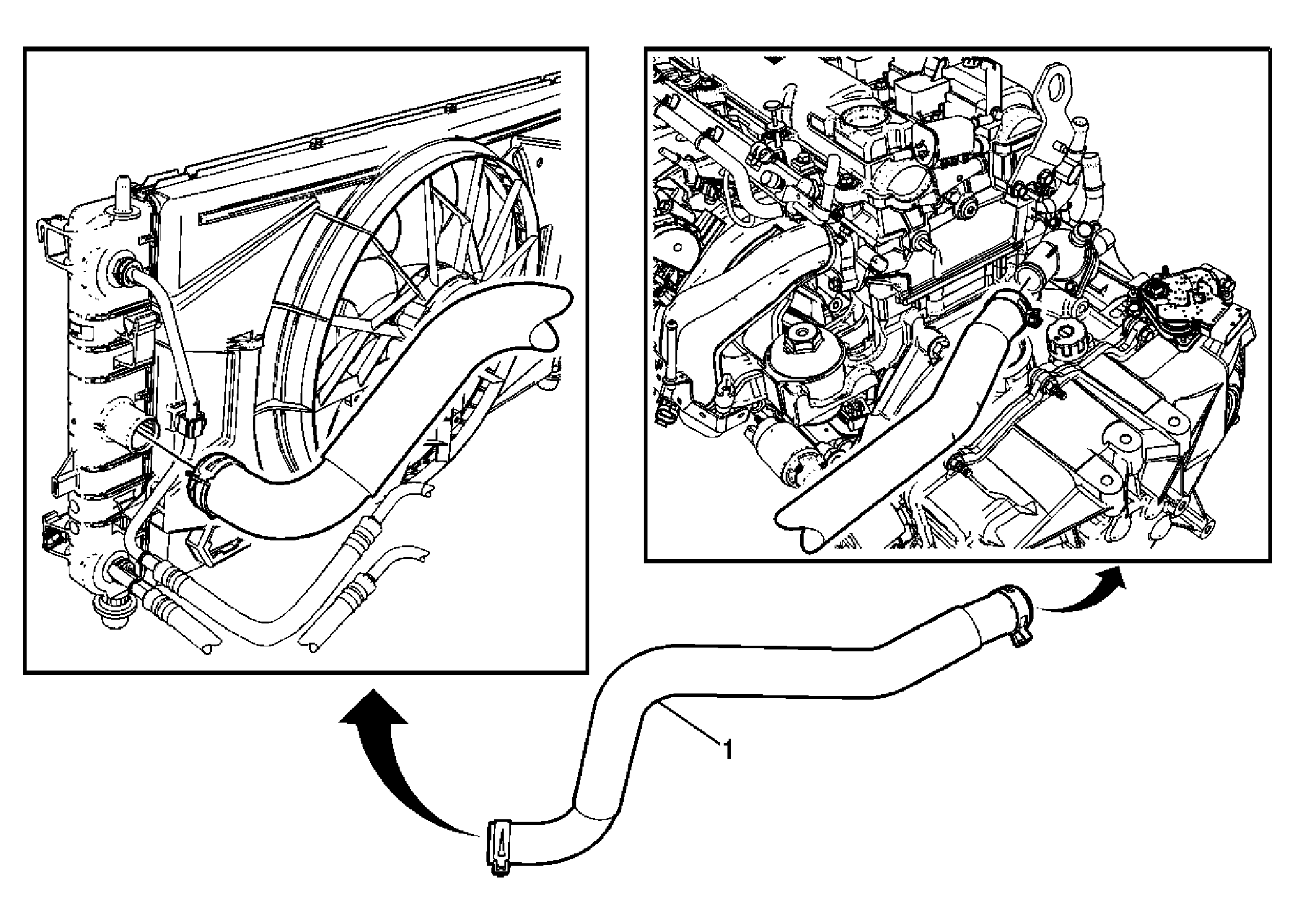

Fig 1: View Of Radiator Outlet Hose (LE5, L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61) or Cooling System Draining and Filling (GE 47716 Fill) .
1	Radiator Outlet Hose Assembly Tip: Using J 38185 , position the radiator outlet hose clamps aside and remove the hose from the fittings. See Special Tools . Note routing of the radiator outlet hose to ensure proper installation. Special Tools: J-38185: Hose Clamp Pliers
