Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

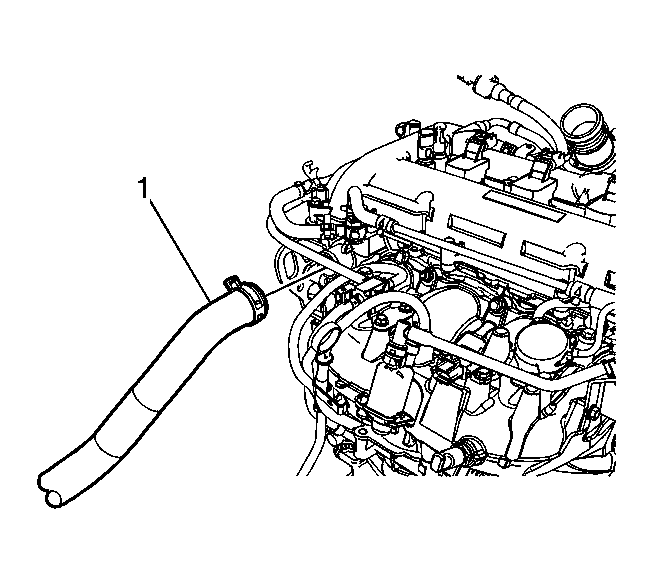

    Fig 1: View Of Radiator Inlet Hose
    GM2040400Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator inlet hose to the radiator (1).
  2. Reposition the radiator inlet hose clamp to secure the hose using J 38185  . See Special Tools .
    3. Fig 2: View Of Radiator Inlet Hose & Clamp
    GM2040317Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator inlet hose to the engine (1).
  4. Reposition the radiator inlet hose clamp to secure the hose using J 38185  . See Special Tools .
  5. Install the right headlamp. Refer to Headlamp Replacement .
  6. Reposition the radiator air baffle.
  7. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill LNF)  or Cooling System Draining and Filling (GE 47716 Fill) .
