Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

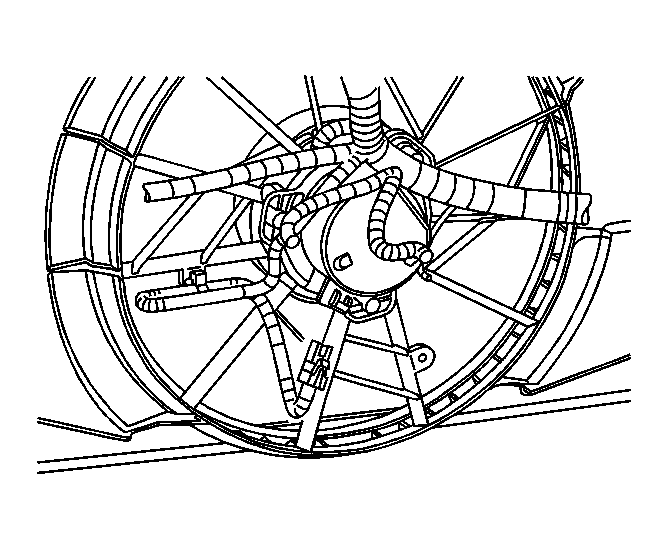

Fig 1: View Of Cooling Fan Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the cooling fan electrical connector.

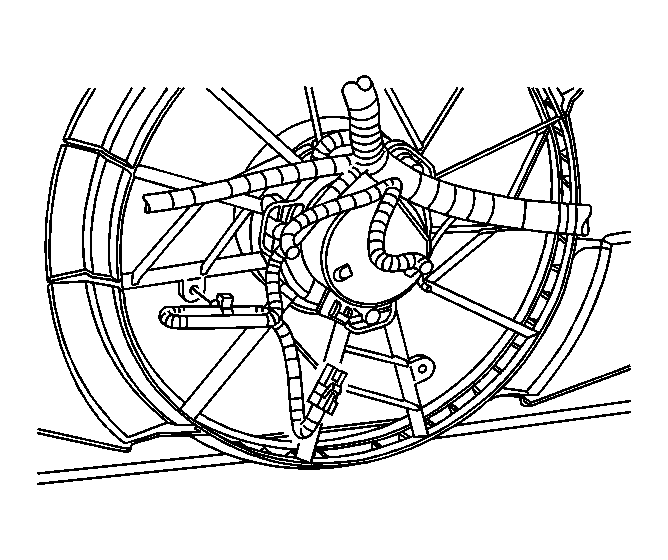

Fig 2: View Of Cooling Fan Wire

Courtesy of GENERAL MOTORS CORP.

Remove the cooling fan wire from the fan shroud.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Fig 3: View Of Cooling Fan Assembly-To-Radiator Connectors

Courtesy of GENERAL MOTORS CORP.

Remove the cooling fan assembly from the radiator by pushing up on the fan shroud to unsnap the retaining features. Position the cooling fan assembly away from the radiator.

Fig 4: View Of Air Dam And Push-In Retainers

Courtesy of GENERAL MOTORS CORP.

Remove the air dam push-in retainers.

Fig 5: View Of Left Engine Splash Shield-To-Radiator Mount Push-In Retainer

Courtesy of GENERAL MOTORS CORP.

Remove the right engine splash shield to radiator mount push-in retainer.
Remove the left engine splash shield to radiator mount push-in retainer.

Fig 6: View Of Lower Radiator Mount, Brackets And Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the lower radiator mount, brackets, bolts, and lower air dam. Support the radiator and condenser.

Fig 7: View Of Cooling Fan Assembly, Radiator, & Condenser

Courtesy of GENERAL MOTORS CORP.

Tilt the radiator and condenser forward in the vehicle. Remove the cooling fan assembly from the vehicle.
