Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Coolant Heater Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the coolant heater cord (1).

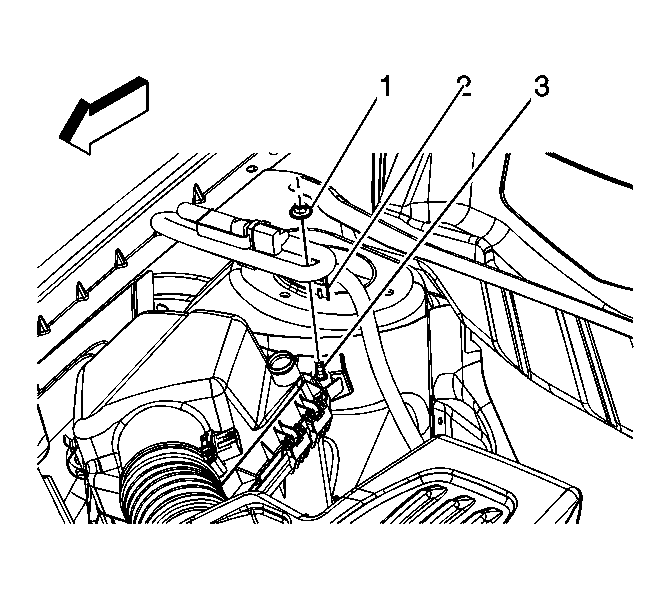

Fig 2: Identifying Heater Cord Clip At Shock Tower Stud

Courtesy of GENERAL MOTORS CORP.

If equipped with regular production options (RPOs) LE5/L61, remove the air cleaner nut (1).
Remove the heater cord clip (2) from the shock tower stud (3).

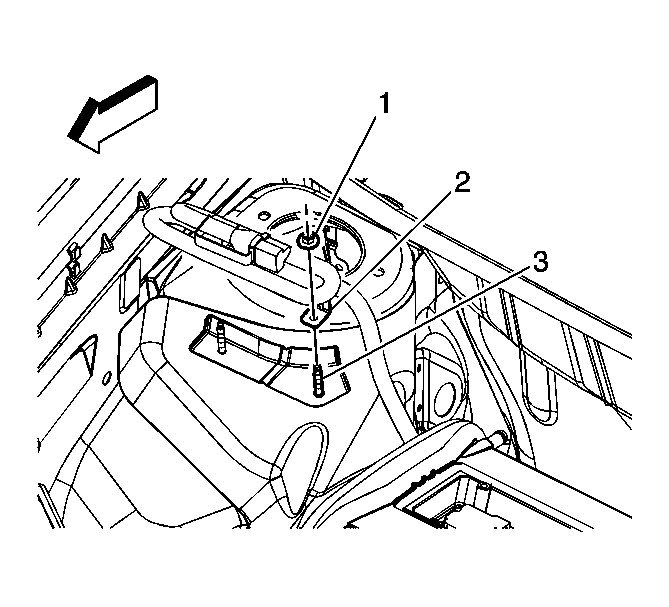

Fig 3: Identifying Coolant Heater Cord

Courtesy of GENERAL MOTORS CORP.

If equipped with RPO LSJ, remove the coolant heater clip nut (1).
Remove the heater cord clip (2) from the shock tower stud (3).
Remove the coolant heater cord.
