HVAC Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

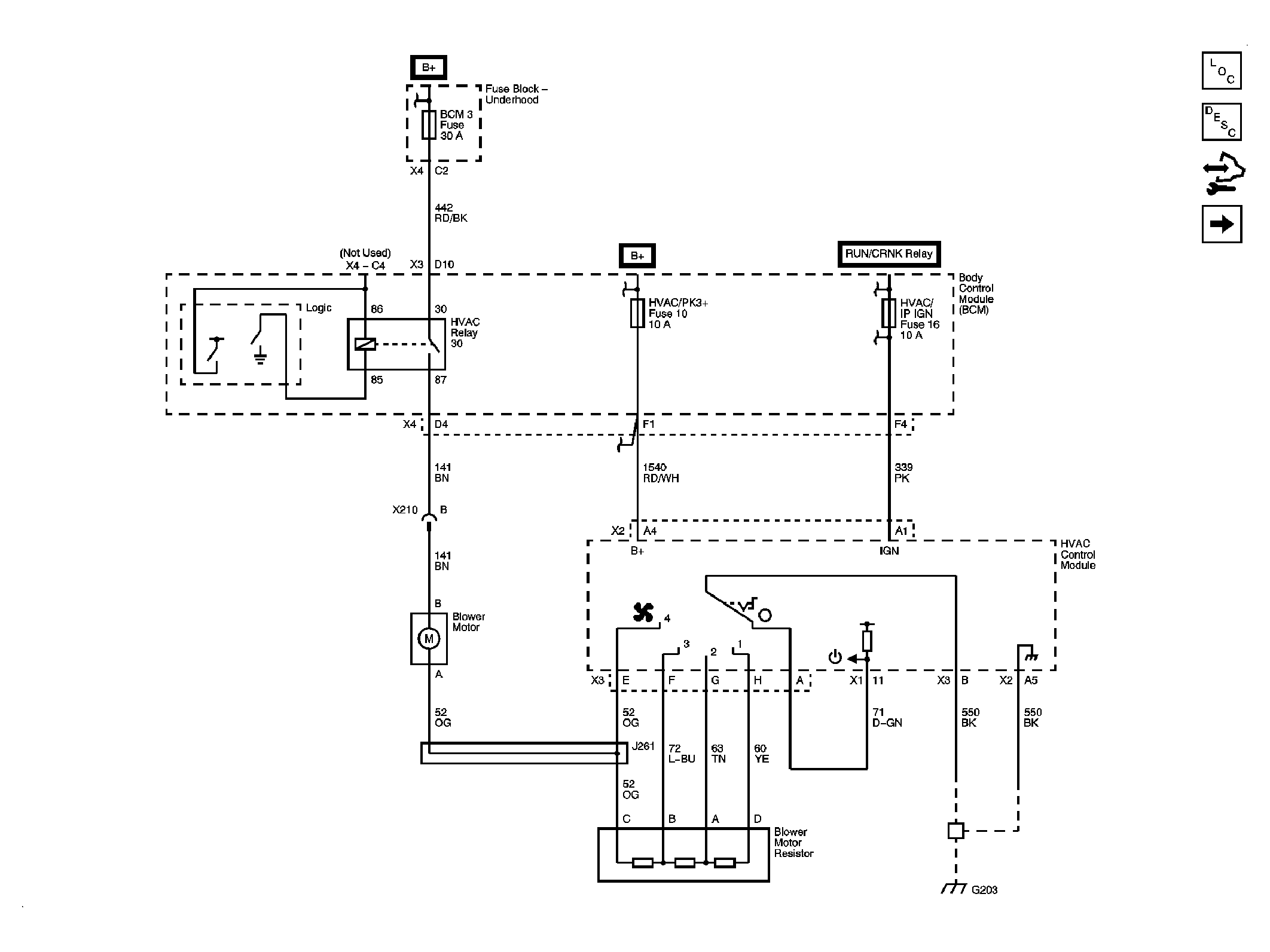

Fig 1: Power, Ground, Blower Motor

Courtesy of GENERAL MOTORS CORP.

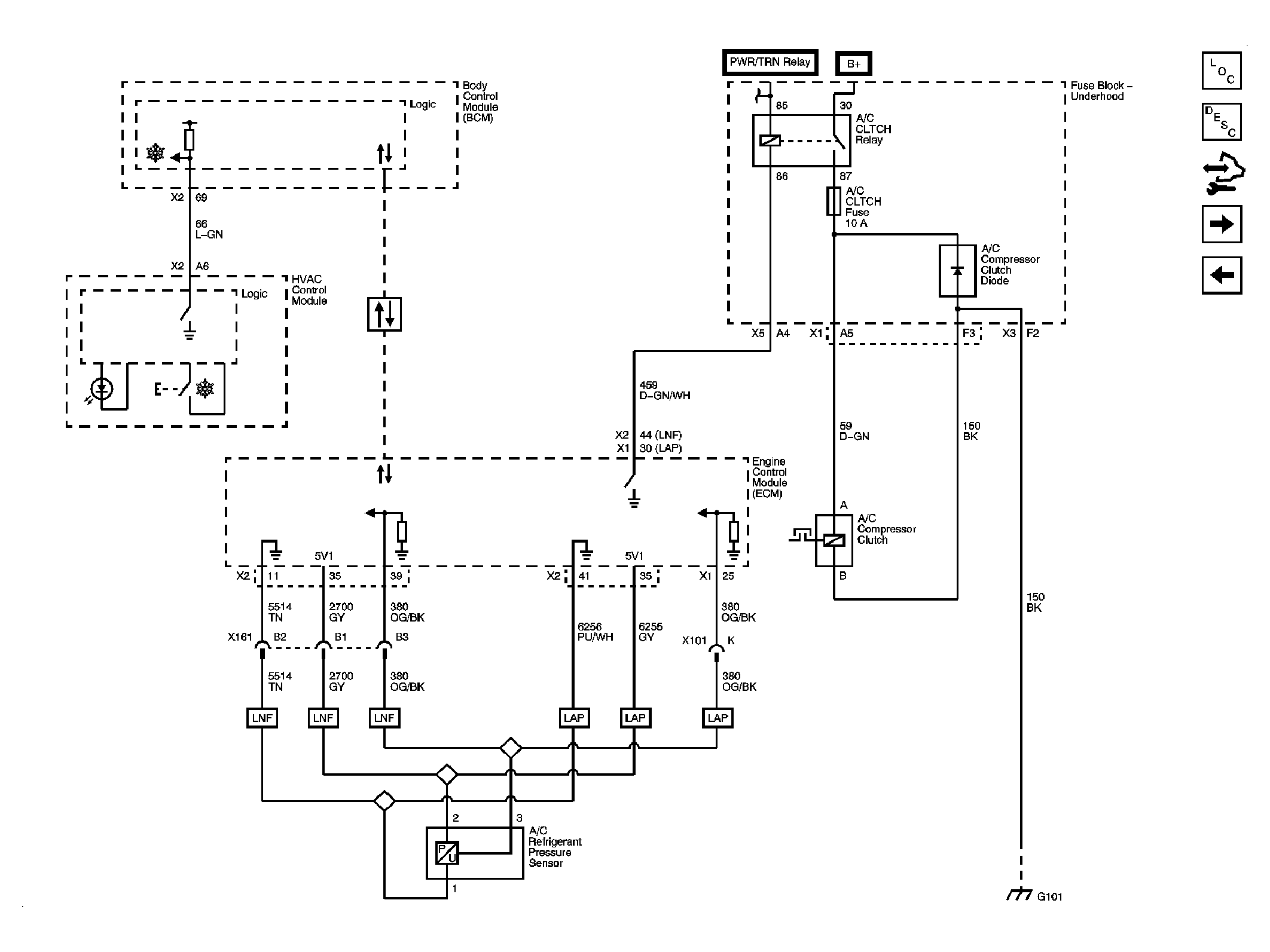

Fig 2: Compressor Controls

Courtesy of GENERAL MOTORS CORP.

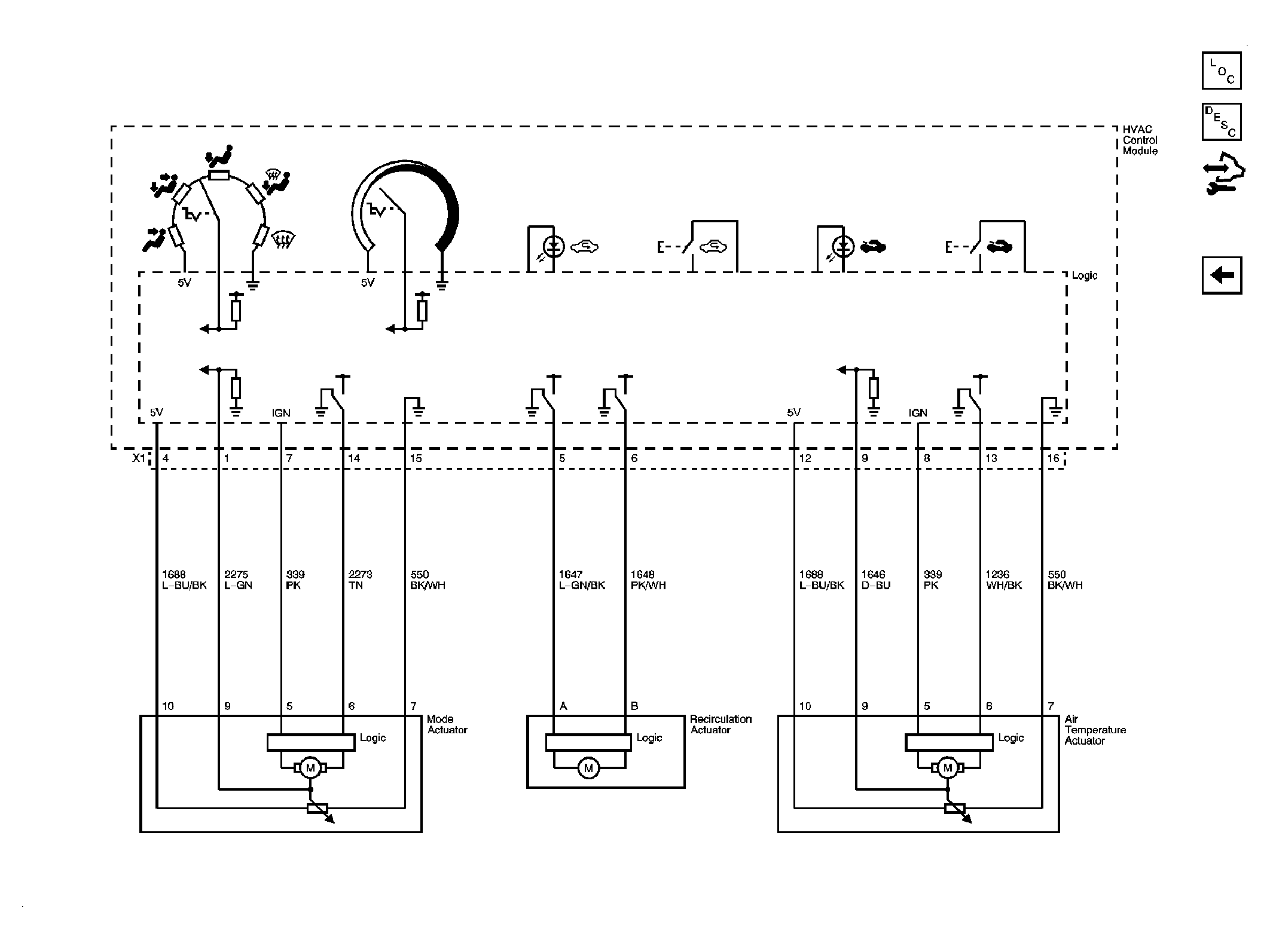

Fig 3: Mode and Temperature Controls

Courtesy of GENERAL MOTORS CORP.
