Installation Procedure
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

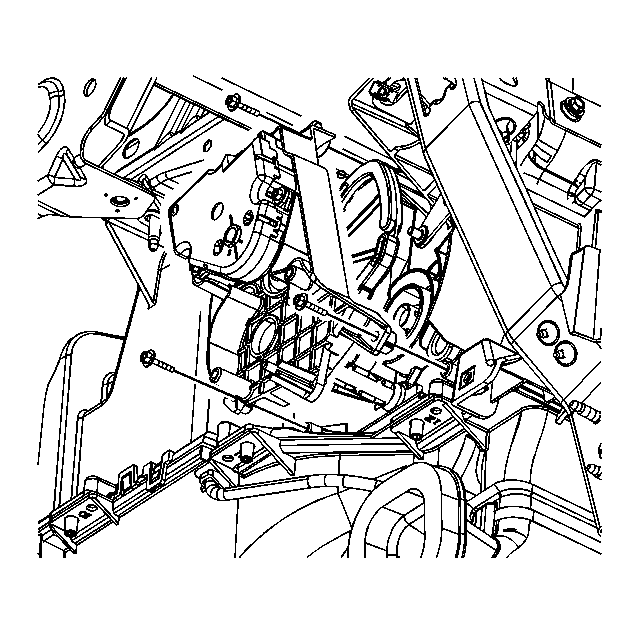

- Install the mode actuator assembly.
- Install the mode actuator assembly screws.
Tighten: Tighten the screws to 2.2 N.m (19 lb in).

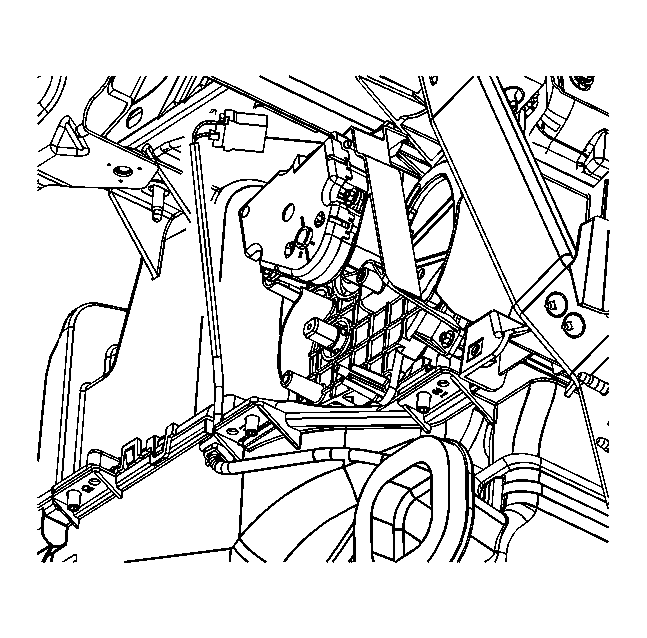

- Install the mode actuator electrical connector.
- Install the air temperature actuator. Refer to Temperature Valve Actuator Replacement .
- Start the engine and let run for one minute.
NOTE:
The key should be in the OFF position when connecting the electrical connectors to ensure proper calibration.
CAUTION:
Refer to Fastener Caution
.
NOTE:
Do not adjust any controls on the HVAC control assembly while the HVAC control assembly and actuators are calibrating. If interrupted improper HVAC performance will result.
