Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

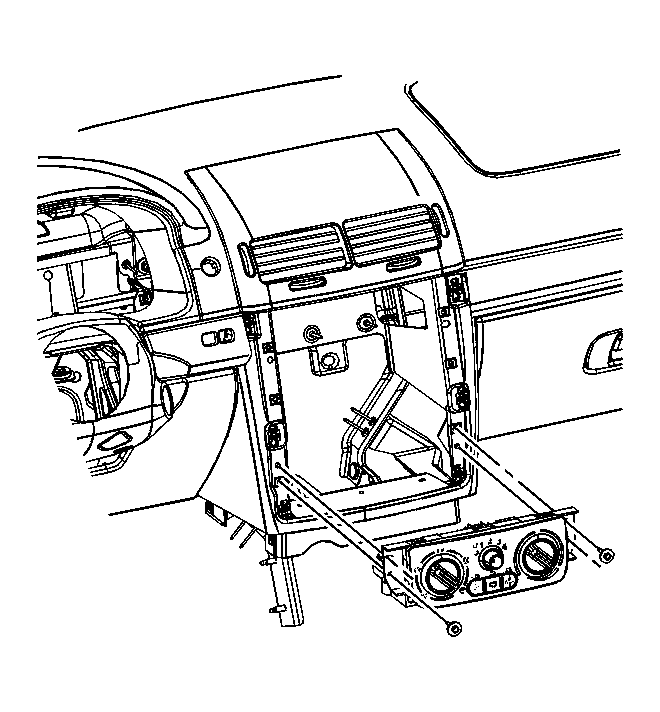

    Fig 1: View Of HVAC Control Module Assembly
    GM1552388Courtesy of GENERAL MOTORS CORP.
  1. Connect the HVAC control module assembly electrical connectors.
  2. Install the HVAC control module assembly.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the HVAC control module screws.

    Tighten:  Tighten the screws to 2.2 N.m (19 lb in).

  4. Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
