Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuse labeled HVAC CTRL (BATT).
  2. Remove the instrument panel (I/P) retainer. Refer to Instrument Panel Tie Bar Replacement .

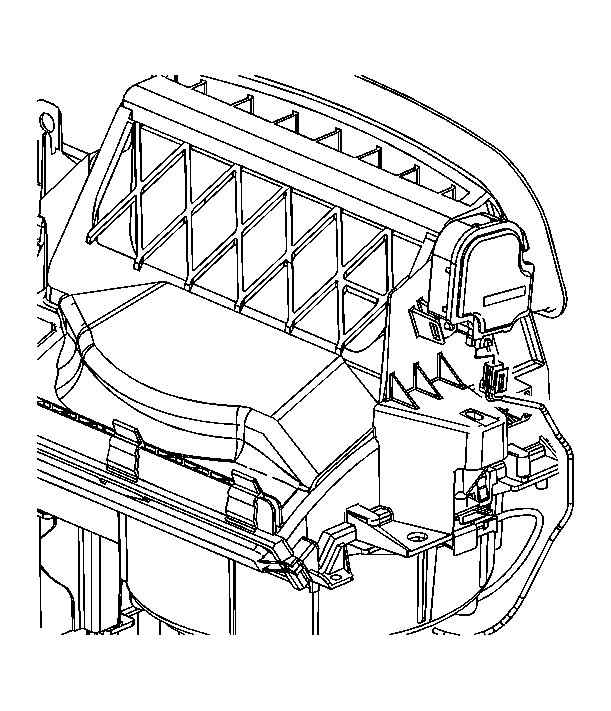

    3. Fig 1: Recirculation Actuator Electrical Connector
    GM1552373Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the recirculation actuator electrical connector.

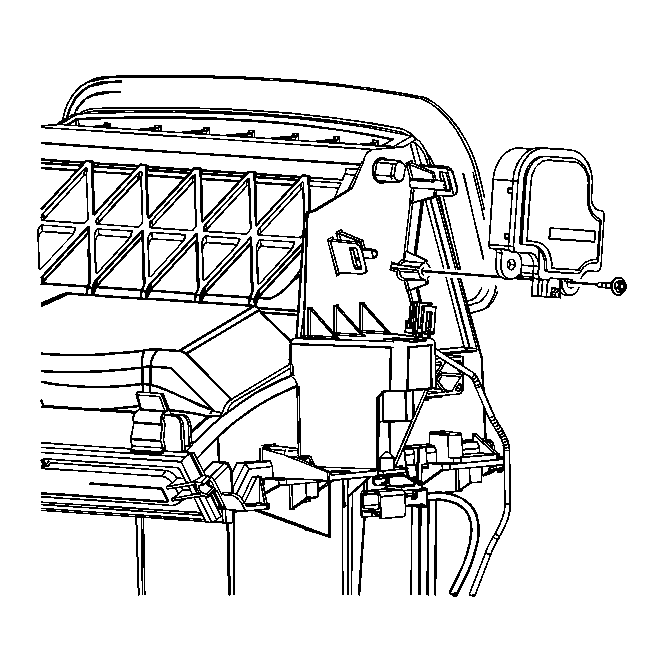

    4. Fig 2: Recirculation Actuator
    GM1552372Courtesy of GENERAL MOTORS CORP.
  4. Remove the recirculation actuator screw.
  5. Remove the recirculation actuator.
