Power Distribution Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

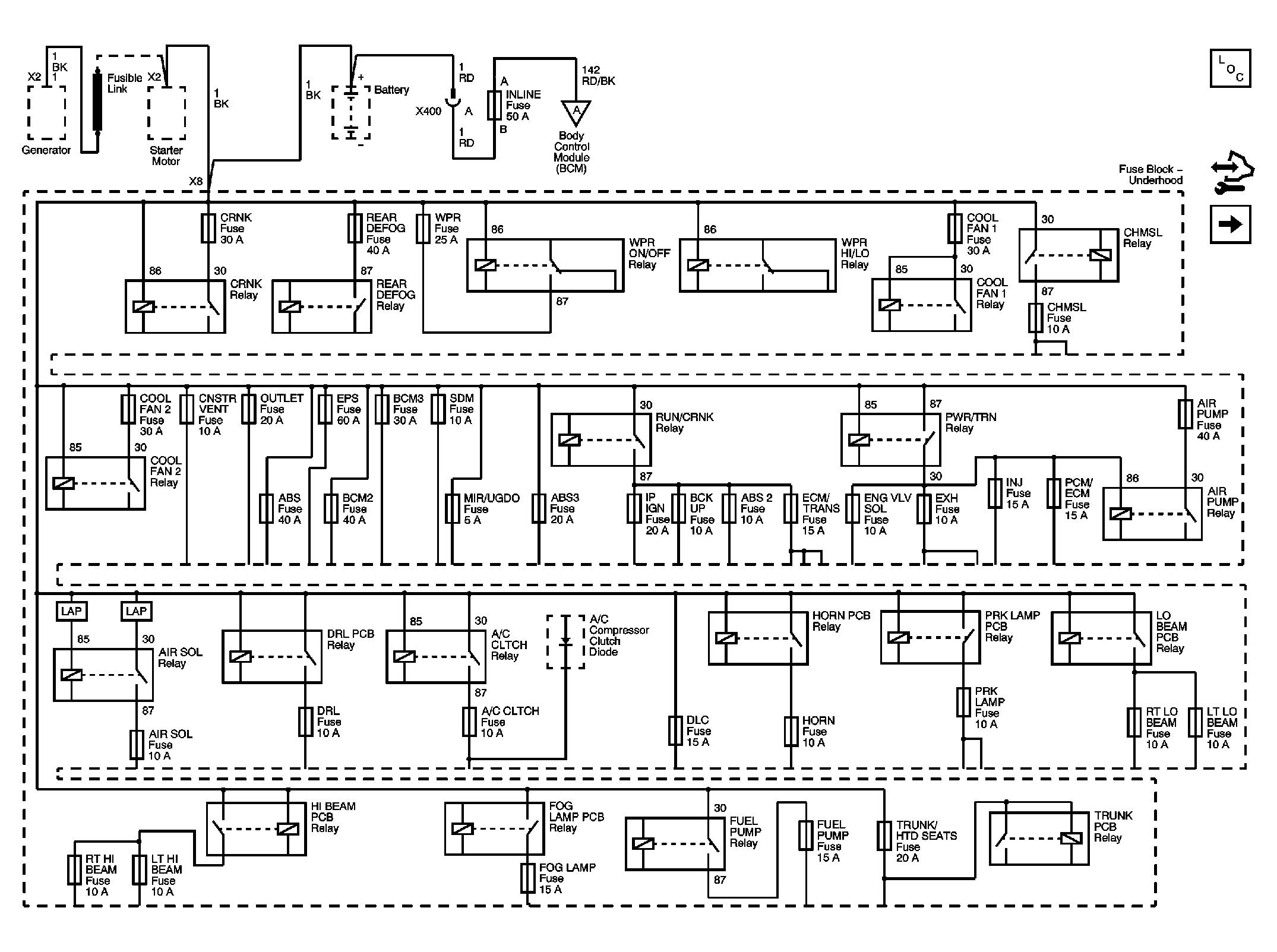

Fig 1: B+ Bus

Courtesy of GENERAL MOTORS CORP.

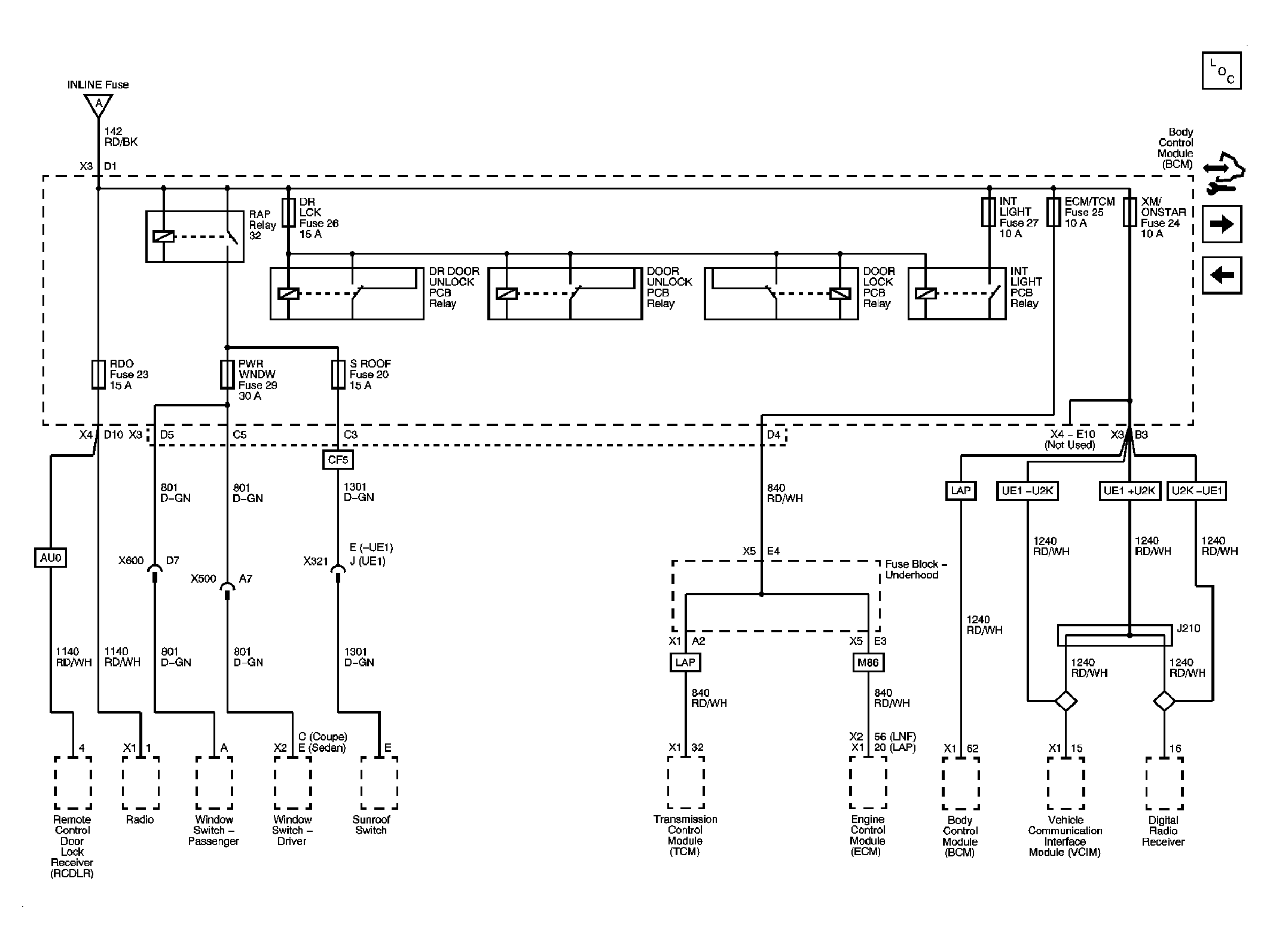

Fig 2: DR LCK, ECM/TCM, INT LIGHT, PWR WNDW, RDO, S ROOF, and XM/ONSTAR Fuses

Courtesy of GENERAL MOTORS CORP.

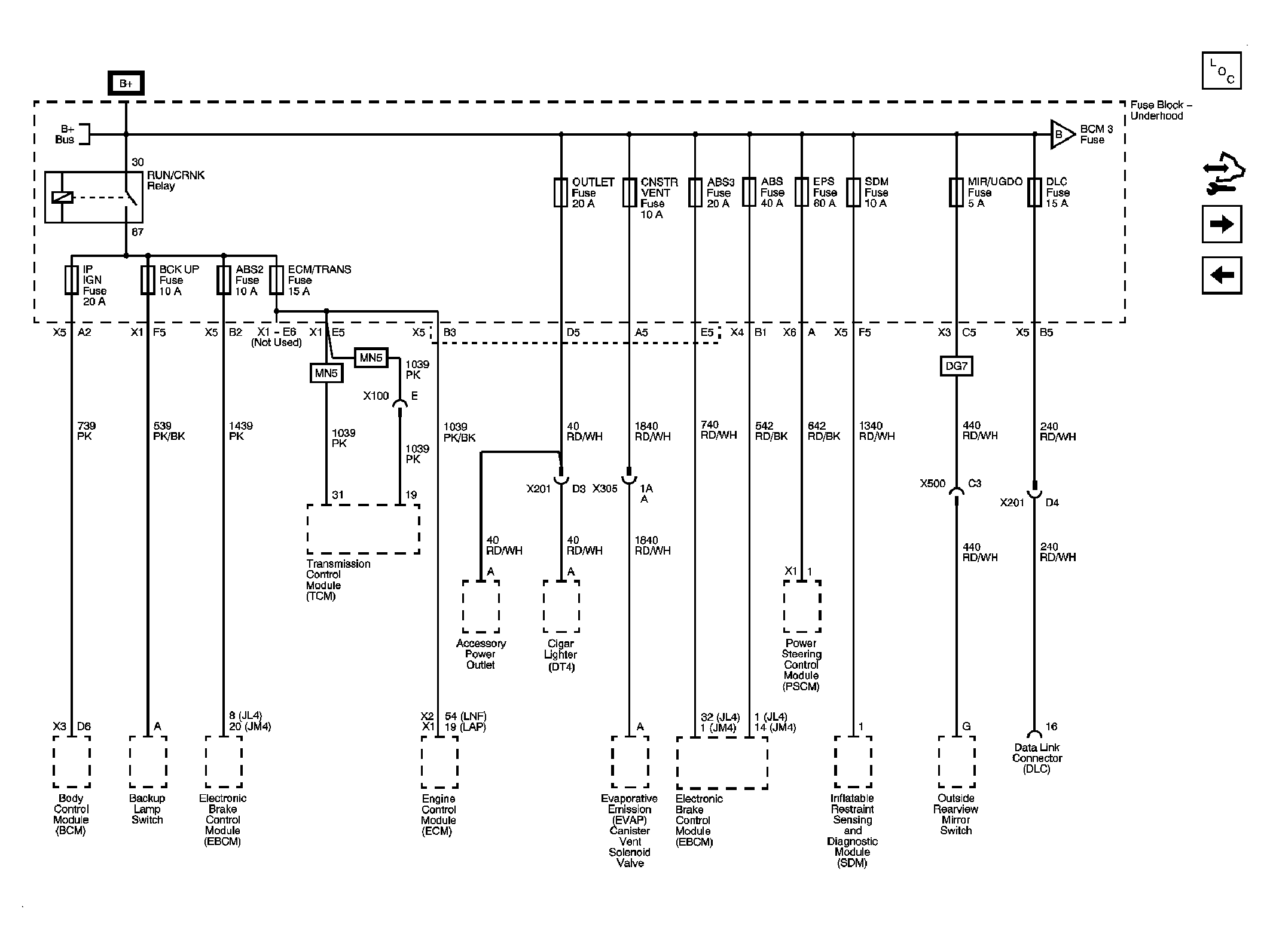

Fig 3: ABS, ABS2, ABS3, BCK UP, CNSTR VENT, DLC, ECM/TRANS, EPS, IP IGN, MIR/UGDO, OUTLET, and SDM Fuses

Courtesy of GENERAL MOTORS CORP.

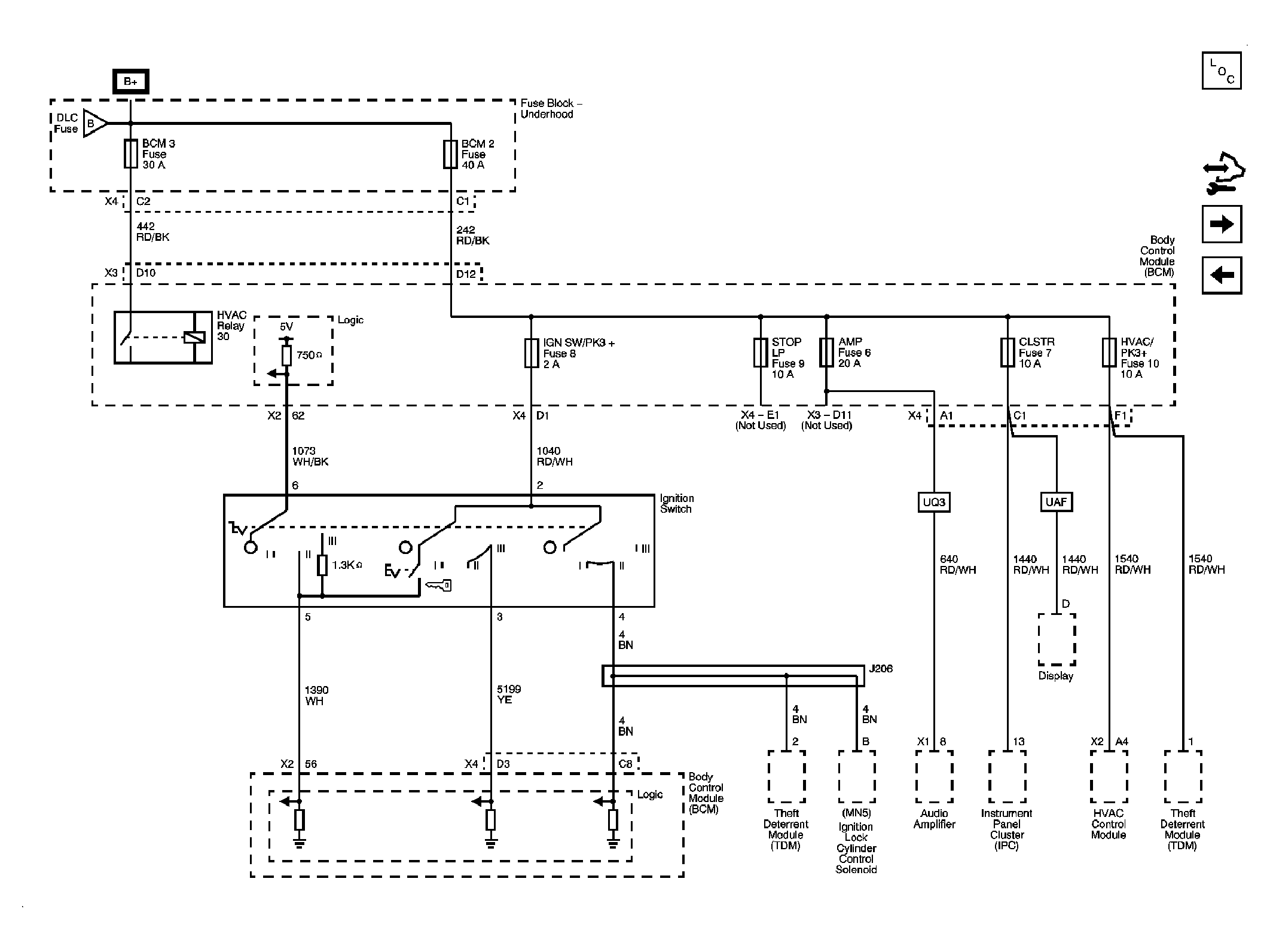

Fig 4: AMP, BCM2, BCM3, CLSTR, HVAC/PK3+, IGN SW/PK3+, and STOP LP Fuses

Courtesy of GENERAL MOTORS CORP.

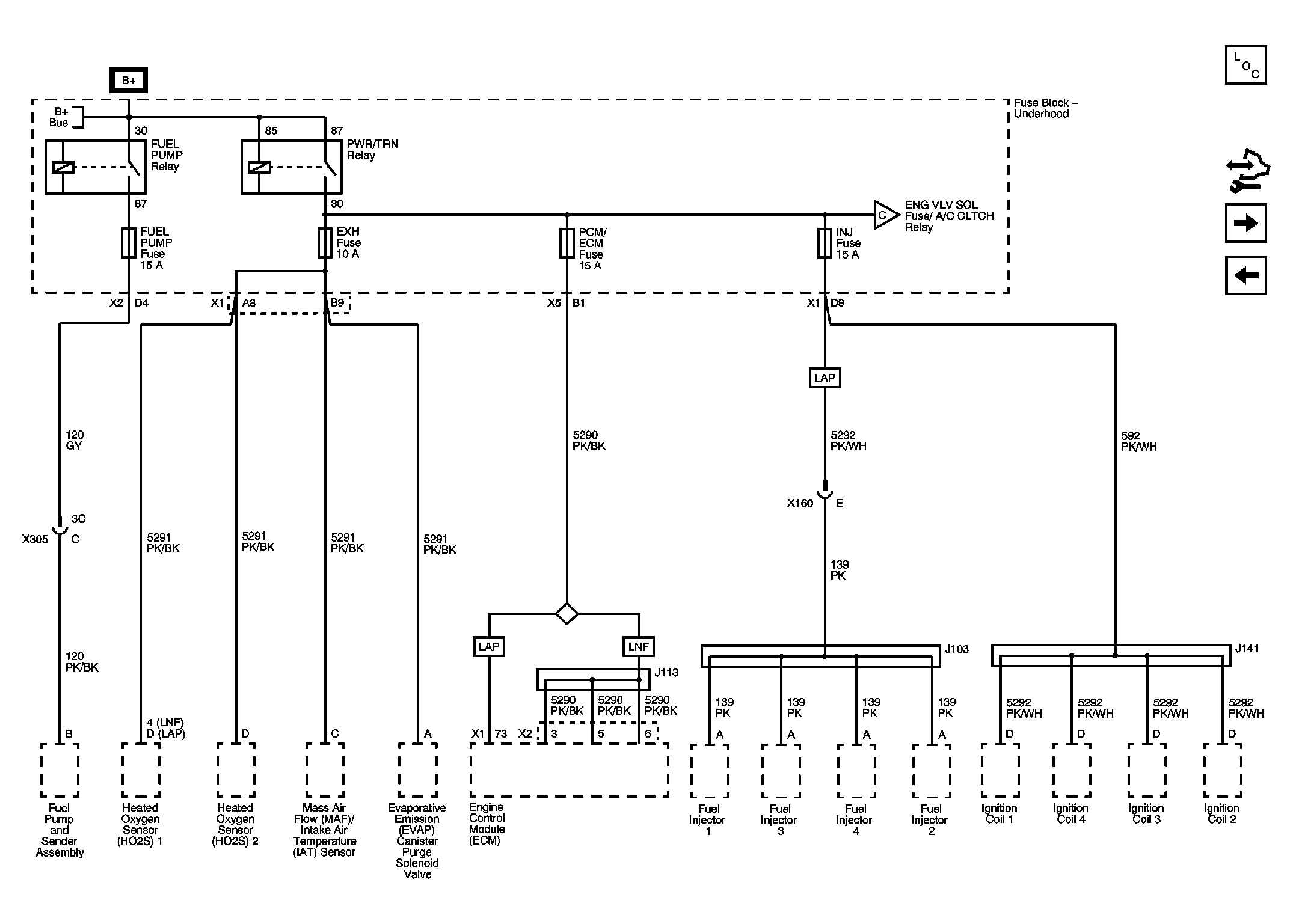

Fig 5: EXH, FUEL PUMP, INJ, and PCM/ECM Fuses

Courtesy of GENERAL MOTORS CORP.

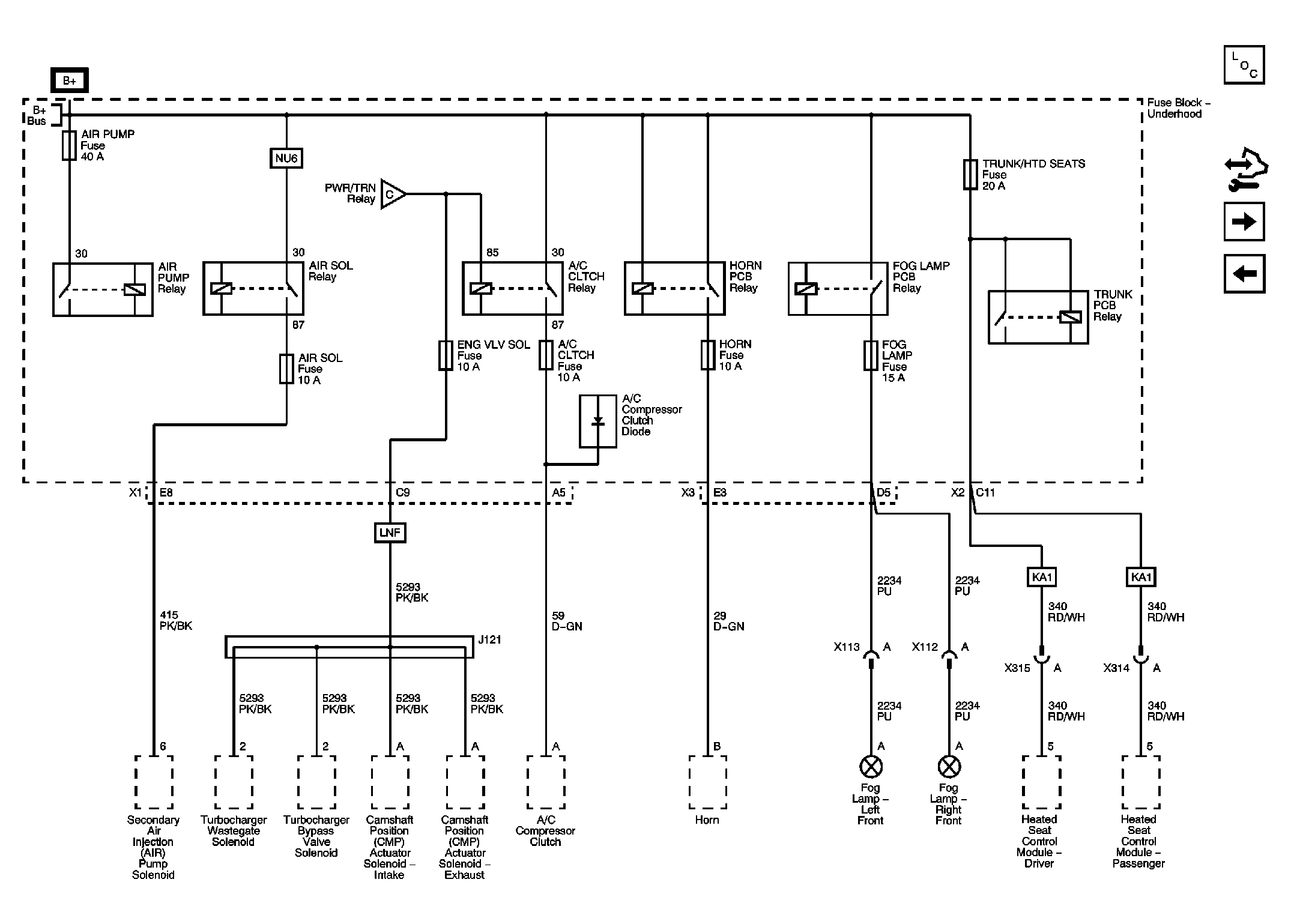

Fig 6: A/C CLTCH, AIR PUMP, AIR SOL, ENG VLV SOL, FOG LAMP, HORN, and TRUNK/HTD SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

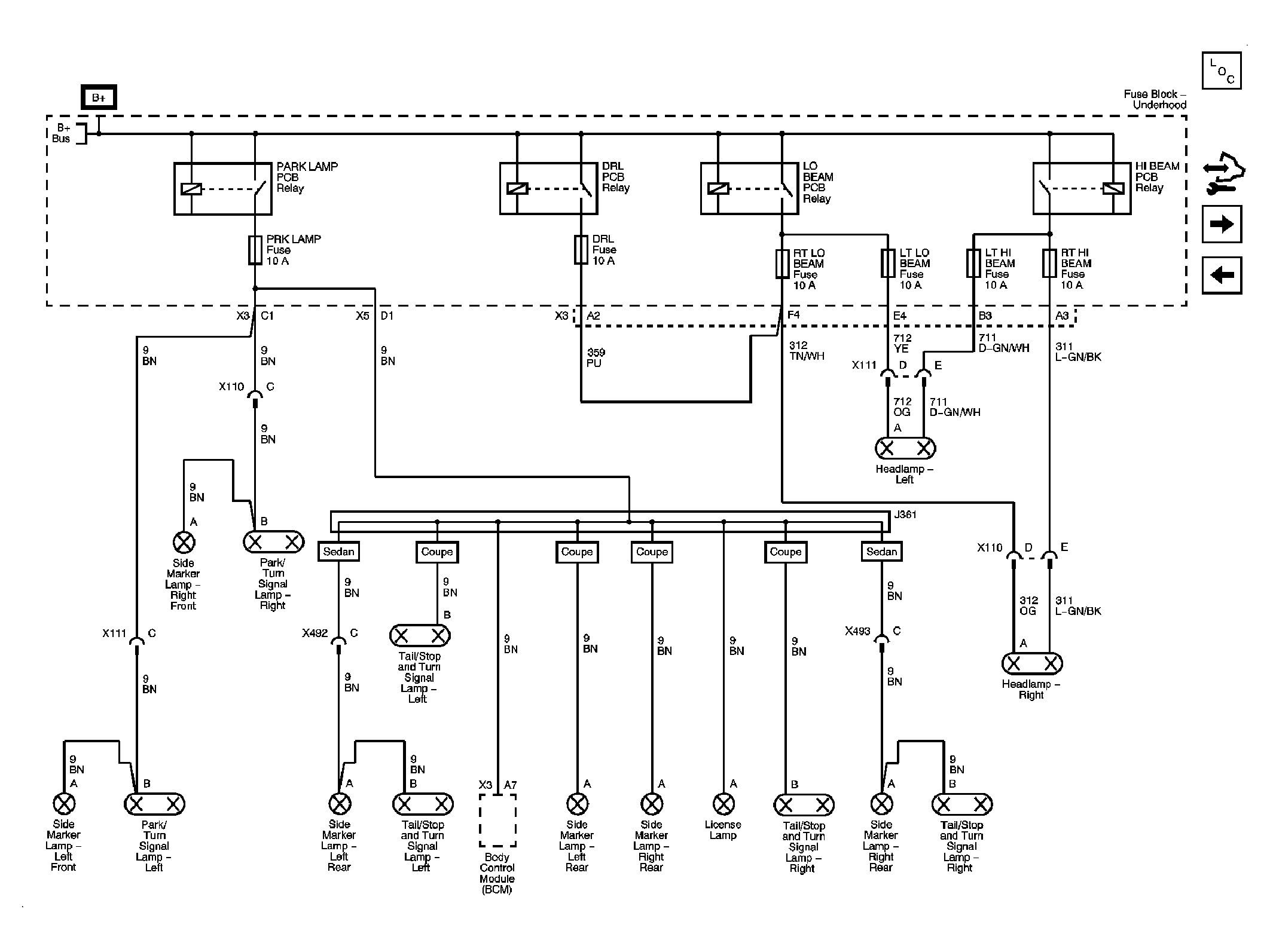

Fig 7: DRL, LT HI BEAM, LT LO BEAM, PRK LAMP, RT HI BEAM, and RT LO BEAM Fuses

Courtesy of GENERAL MOTORS CORP.

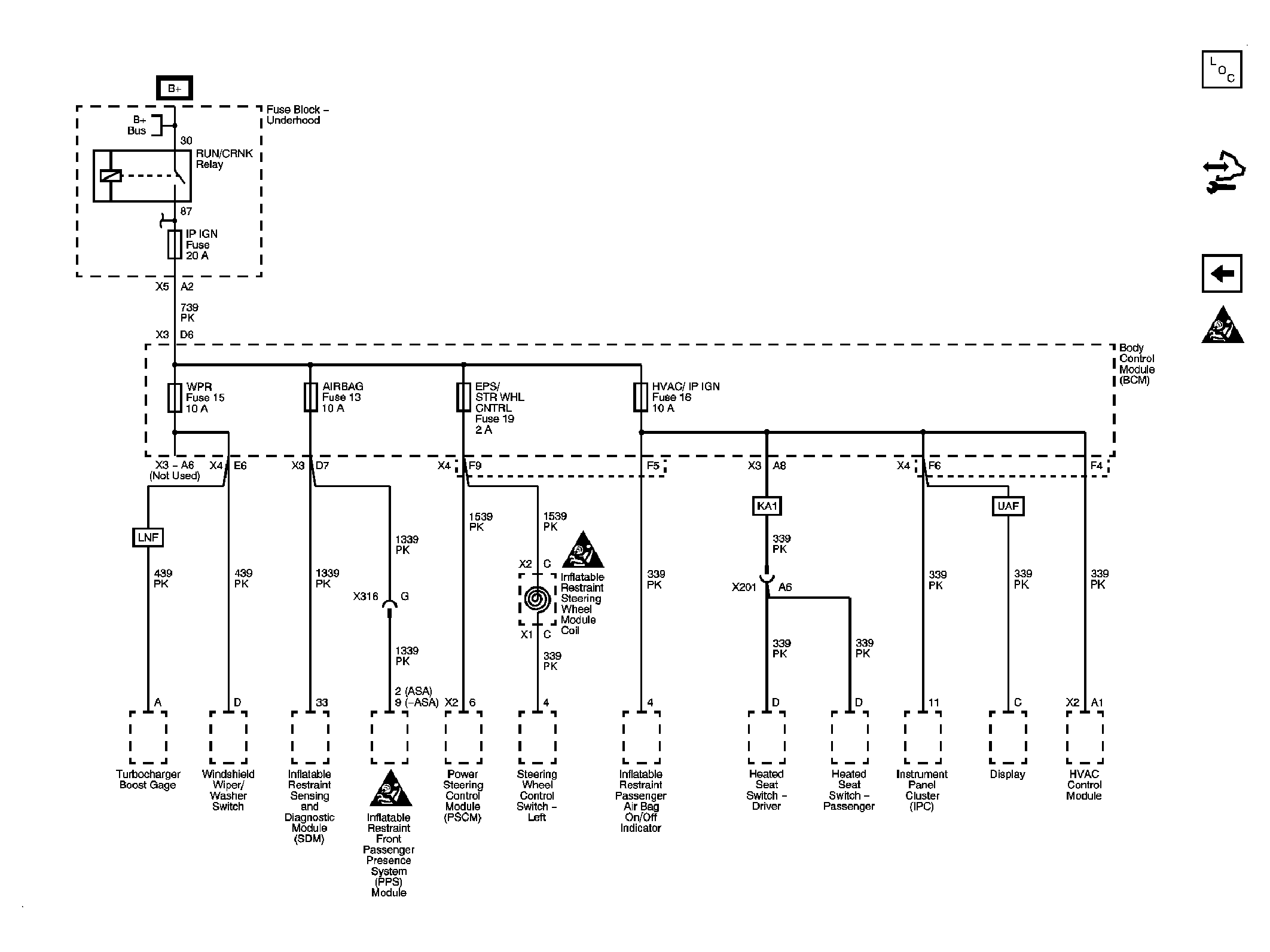

Fig 8: AIRBAG, EPS/STR WHL CNTRL, HVAC/IP IGN, IP IGN, and WPR Fuses

Courtesy of GENERAL MOTORS CORP.
