Harness Routing Views

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Forward Lamp Harness
GM1524052Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X121
2 G102
3 Fuse Block - Underhood X3
4 Inflatable Restraint Front End Sensor Connector
5 Front Fascia
6 Fog Lamp - Right (T37)
7 Fog Lamp - Left (T37)
8 G101
Fig 2: Forward Lamp Harness Routing
GM1857054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Right
2 X110
3 Fog Lamp - Right (T37)
4 X121
5 Fuse Block - Underhood X3
6 G101
7 G102
8 X111
9 Headlamp - Left
Fig 3: Engine Harness Routing - L61
GM1857056Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Power Steering (EPS) Harness
2 G109
3 Fuse Block - Underhood
4 G103
5 Battery Cable Harness
6 X100
7 G105
8 G111
9 X160
Fig 4: Engine Harness Routing (LAP)
GM1857056Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Power Steering (EPS) Harness
2 G109
3 Fuse Block - Underhood
4 G103
5 Battery Cable Harness
6 X100 (MN5 without MXO)
7 G105
8 G111
9 X160
Fig 5: Fuel Injector Harness (LAP)
GM1549154Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cylinder Head
2 J103
3 Ignition Control Module (ICM)
4 Intake Manifold
5 X160
Fig 6: Body Harness - Engine Compartment
GM1524019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X101
2 Windshield Wiper Motor Connector
3 Fuse Block - Underhood X4
4 Fuse Block - Underhood X2
5 G101
6 X121
7 Engine Control Module (ECM) X1
8 Electronic Brake Control Module (EBCM) Connector
9 Fuse Block - Underhood X5
Fig 7: Near The Front Strut Towers
GM1749972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X170
2 Right Front Wheel Speed Harness
3 X171
4 Left Front Strut
Fig 8: Instrument Panel Harness
GM2034603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X210
2 X200
3 G203
4 G201
5 J233
6 X275
7 JX200
8 X201
9 Radio Antenna Coax
Fig 9: Identifying Instrument Panel
GM1850435Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 X200
3 X202
4 X600
Fig 10: HVAC Assembly Harness
GM1549144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Box
2 X210
3 Blower Motor
4 J261
Fig 11: Body Harness Components - Passenger Compartment
GM1850416Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X316 (AOS)
2 X314 (KA1)
3 Inflatable Restraint Roof Rail Module - Passenger (ASF)
4 X320 (ASF)
5 Rear Decklid
6 X319 (ASF)
7 Inflatable Restraint Roof Rail Module - Driver (ASF)
Fig 12: Left Front Door - Sedan
GM1524041Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 J200
3 X500
4 Speaker Connector
5 Door Latch Connector
6 Door Latch - Driver
Fig 13: Left Front Door - Coupe
GM1524037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 J200
3 X500
4 Speaker Connector
5 Window Motor Connector
6 Inflatable Restraint Side Impact Sensor (SIS) Connector
Fig 14: Passenger Door (Base)
GM1739274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Door
2 X600
Fig 15: Right Front Door - Sedan
GM1524045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Speaker Connector
4 X600
Fig 16: Right Front Door - Coupe
GM1524042Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Inflatable Restraint Side Impact Sensor (SIS) Connector
3 Window Motor Connector
4 Speaker Connector
5 X600
Fig 17: Left Rear Door - Sedan
GM1524047Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Window Motor Connector
4 X700
Fig 18: Right Rear Door - Sedan
GM1524048Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 X800
3 Window Motor Connector
4 Door Latch Connector
Fig 19: Driver Seat
GM1524033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Buckle - Driver
2 Heated Seat Element - Driver Back (KA1)
3 Heated Seat Element - Driver Cushion (KA1)
4 Seat Belt Switch Connector - Driver
5 X315 (KA1)
6 Heated Seat Module - Driver (KA1)
Fig 20: Passenger Seat
GM1524032Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (KA1)
2 Seat Belt Buckle - Passenger
3 Heated Seat Module - Passenger (KA1)
4 X314 (KA1)
5 Heated Seat Element - Passenger Cushion (KA1)
Fig 21: Passenger Seat (AOS)
GM1856806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Buckle - Passenger
2 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3 X316
Fig 22: Headliner Harness (CF5)
GM1524013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 X304 (Coax)
3 X321 (UE1)
4 X302
5 Cellular Micophone Connector (UE1)
6 Inside Rearview Mirror (ISRVM) Connector
7 Sunroof Switch Connector (CF5)
Fig 23: Headliner Harness (without CF5)
GM1524018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Dome Lamp
3 X323
4 J300
5 Inside Rearview Mirror (ISRVM) Connector

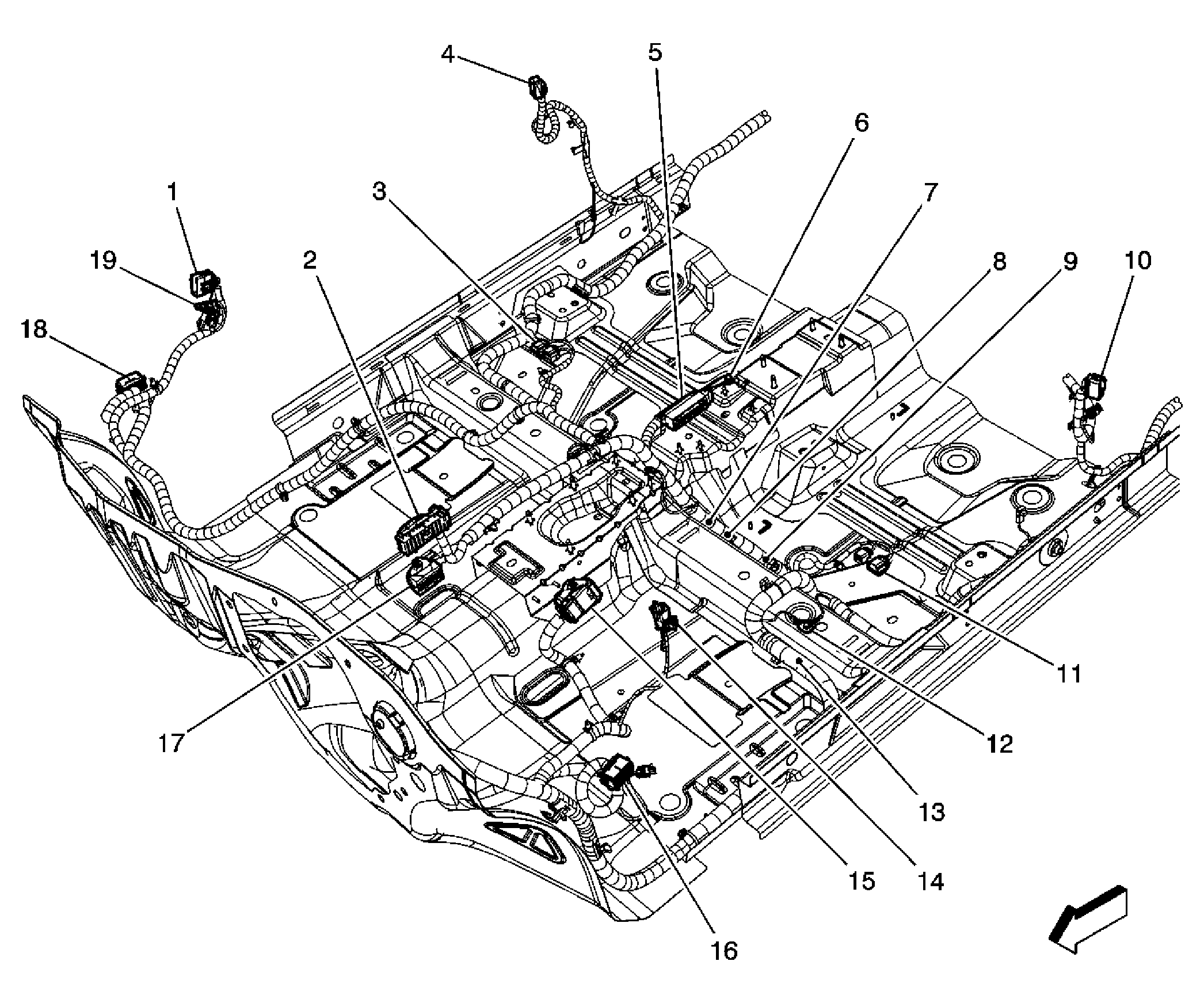

Fig 24: Body Harness - Passenger Compartment
GM2285185Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X200
2 Body Control Module (BCM) X3
3 X314
4 X800 (Sedan)
5 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6 G306
7 J361
8 J210
9 J360
10 X700 (Sedan)
11 X315
12 G301
13 J335
14 X275
15 X201
16 X301
17 Body Control Module (BCM) X1
18 X600
19 X304
Fig 25: Body Harness - Rear Compartment
GM1524028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X493
2 G402 (Coupe)
3 Fuse Holder 50 A
4 X401
5 G401
6 Center High Mounted Stop Lamp (CHMSL) Connector
7 Rear Compartment Lid Ajar Switch
8 X492
9 X321 (UE1)
10 X323 (without UE1)
11 X319
12 J401
13 J351
14 J352
15 Floor Panel
16 X305
17 Wheel Well
18 X320
19 Coax
Fig 26: Rear Floor Pan Components and G403
GM1549037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Holder 50A
3 Battery Current Sensor
4 G403
5 X400
6 Spare Tire Well
Fig 27: Rear ABS Harness
GM1524054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - Left Rear
2 X305
3 Wheel Speed Sensor (WSS) - Right Rear
Fig 28: Rear Fascia (G5)
GM1850375Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X497
2 X496
3 X492
4 J401
5 X494
6 J402
7 X495
8 X493
