Ground Distribution Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

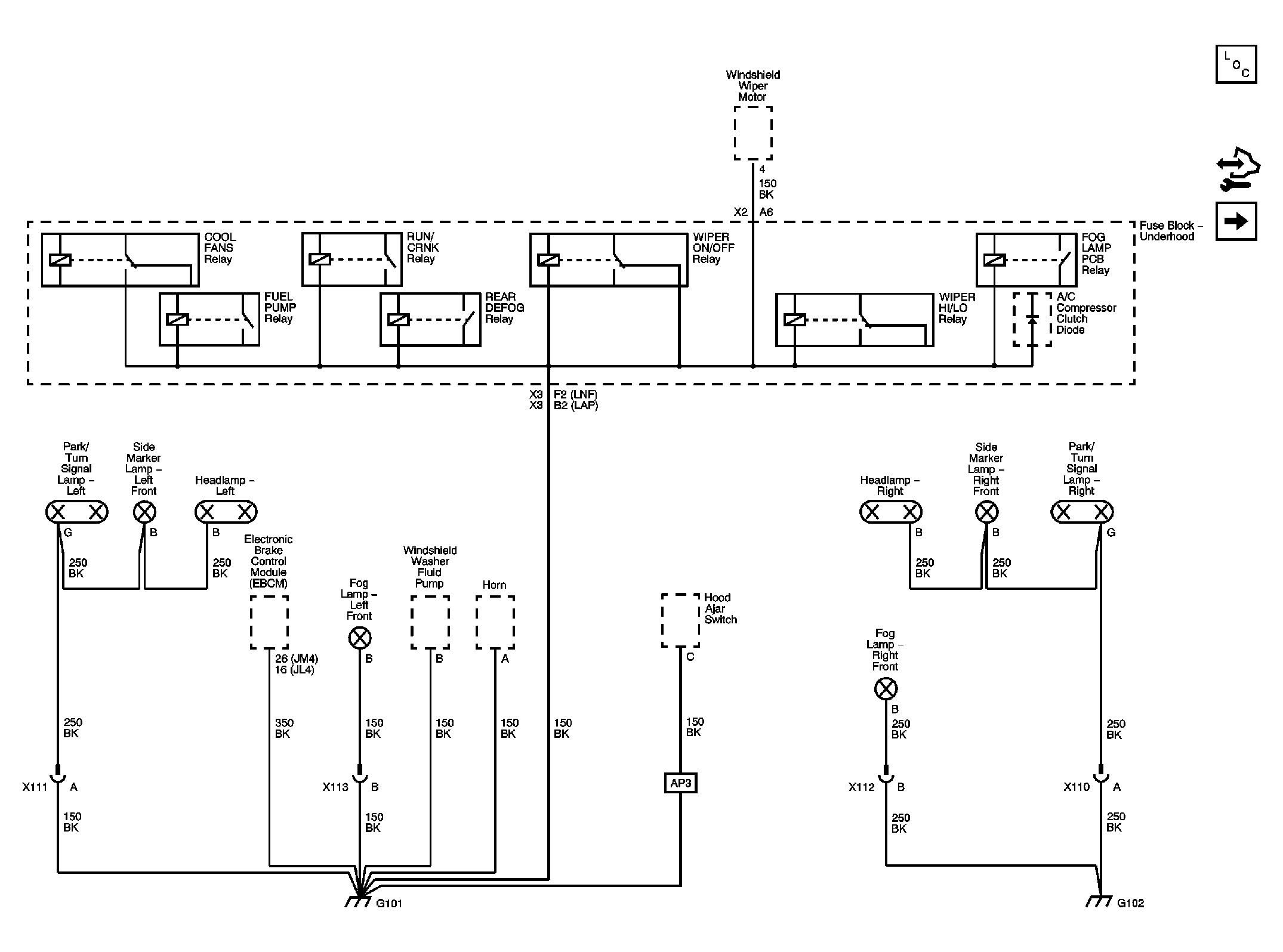

Fig 1: G101, G102

Courtesy of GENERAL MOTORS CORP.

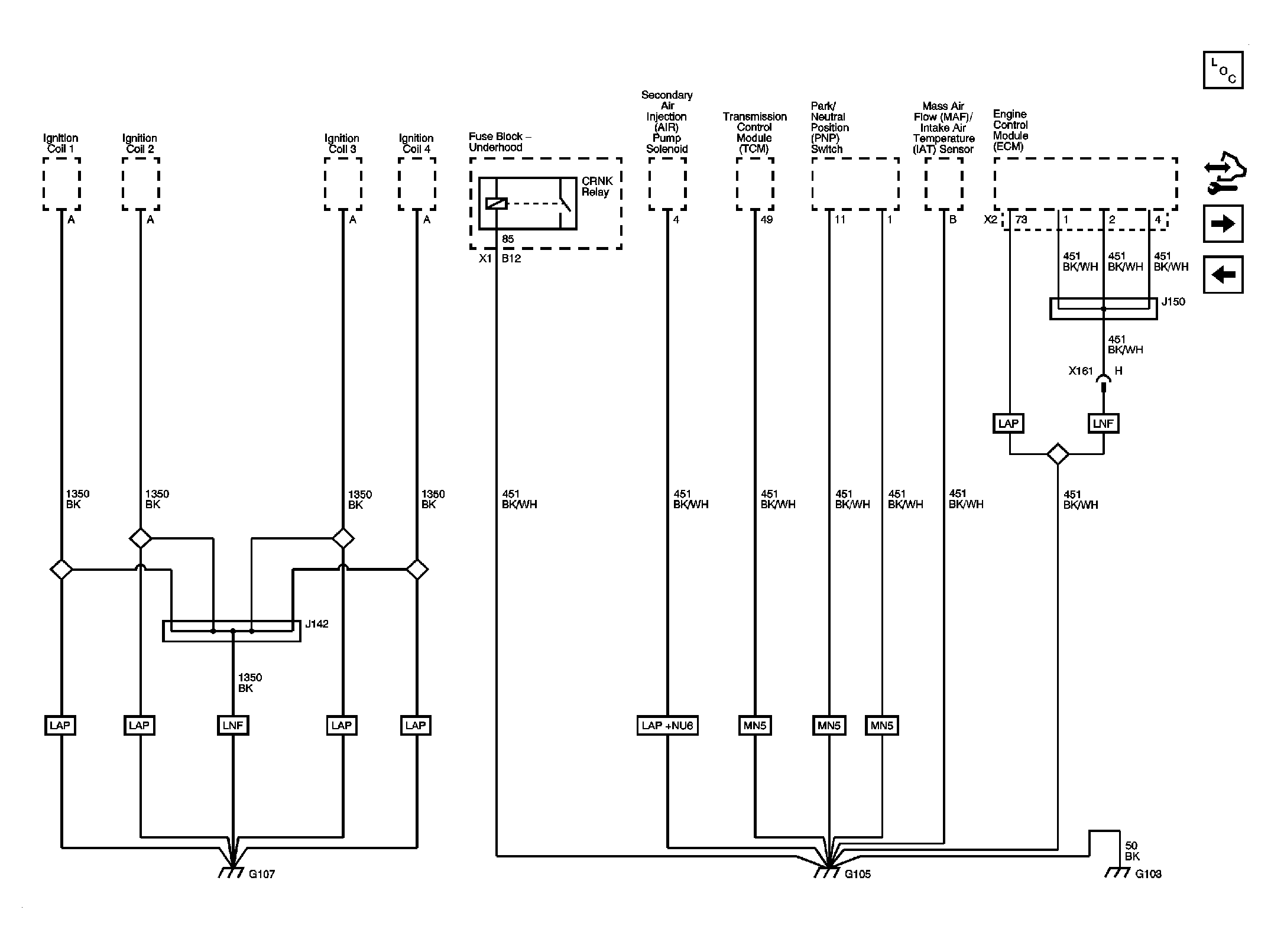

Fig 2: G103, G105, G107

Courtesy of GENERAL MOTORS CORP.

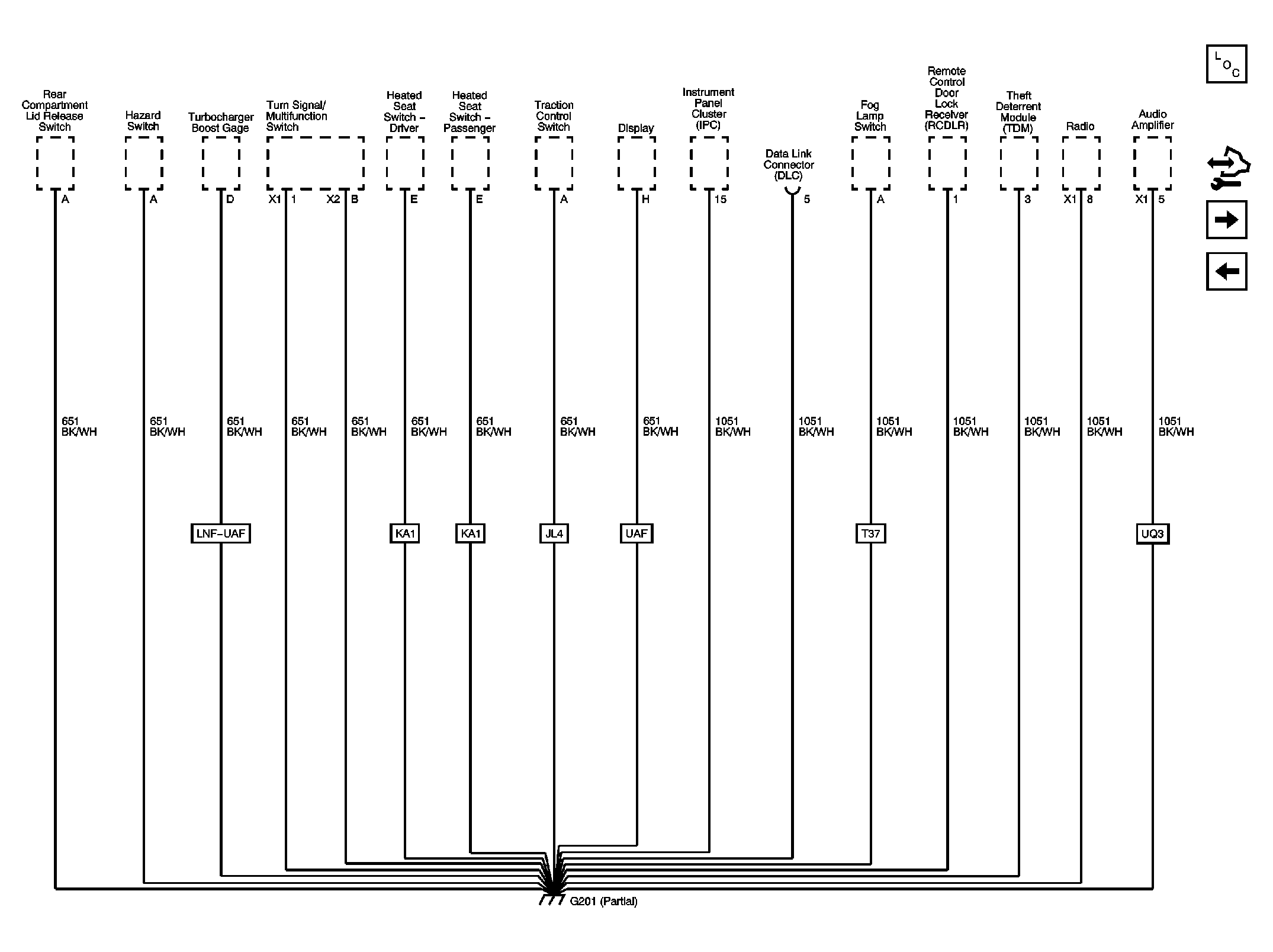

Fig 3: G201 (1 of 2)

Courtesy of GENERAL MOTORS CORP.

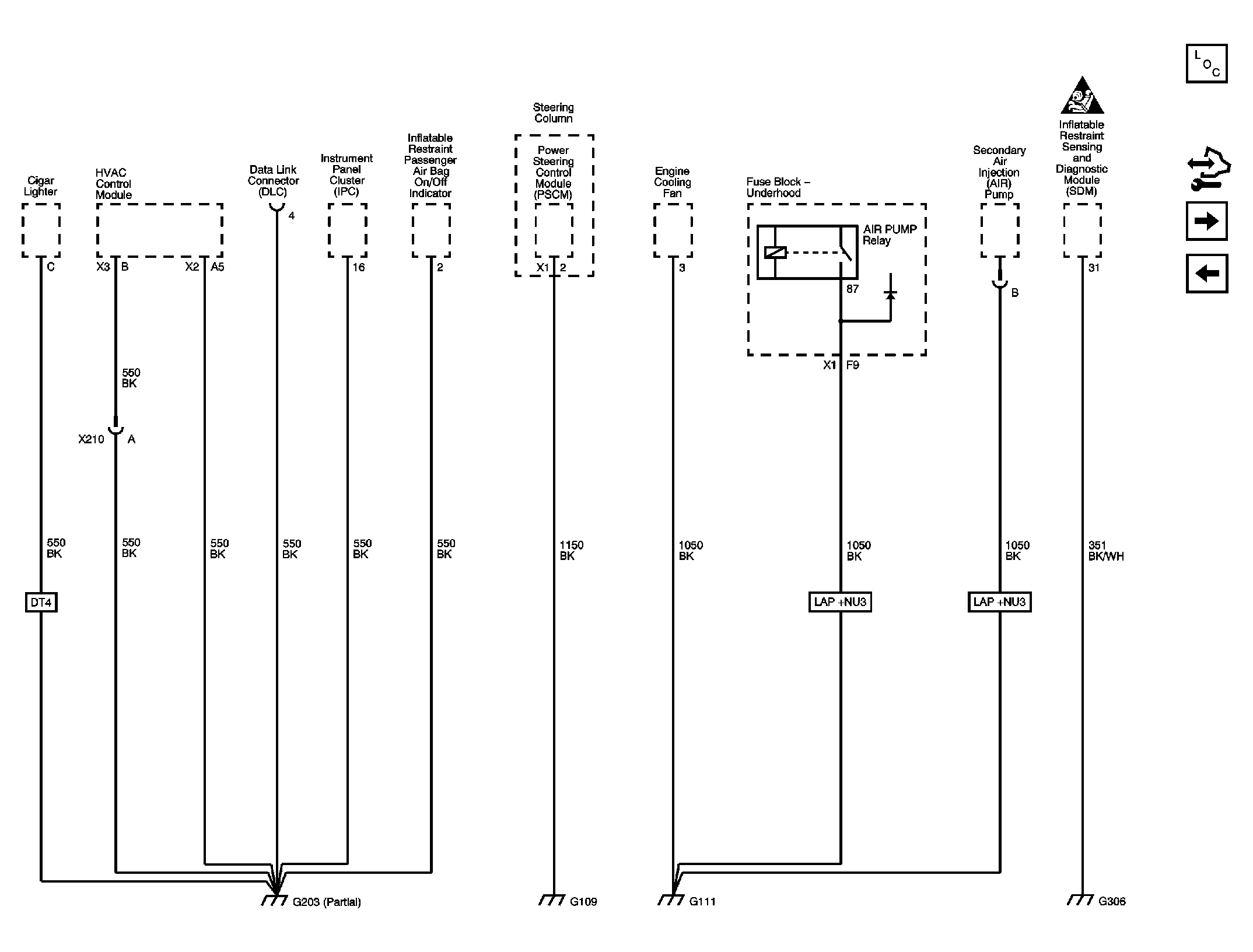

Fig 4: G109, G111, G203 (1 of 2) and G306

Courtesy of GENERAL MOTORS CORP.

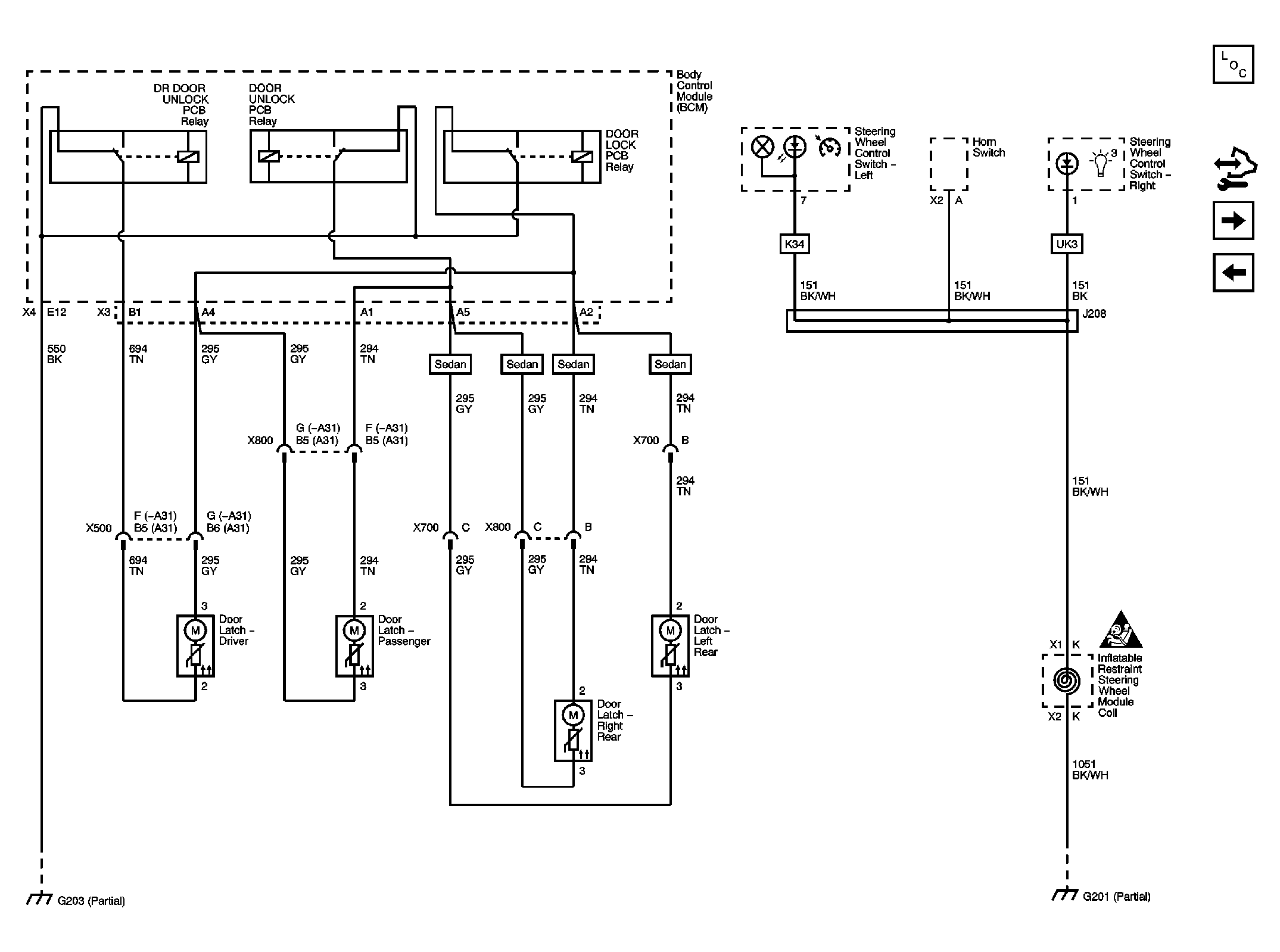

Fig 5: G201 (2 of 2) and G203 (2 of 2)

Courtesy of GENERAL MOTORS CORP.

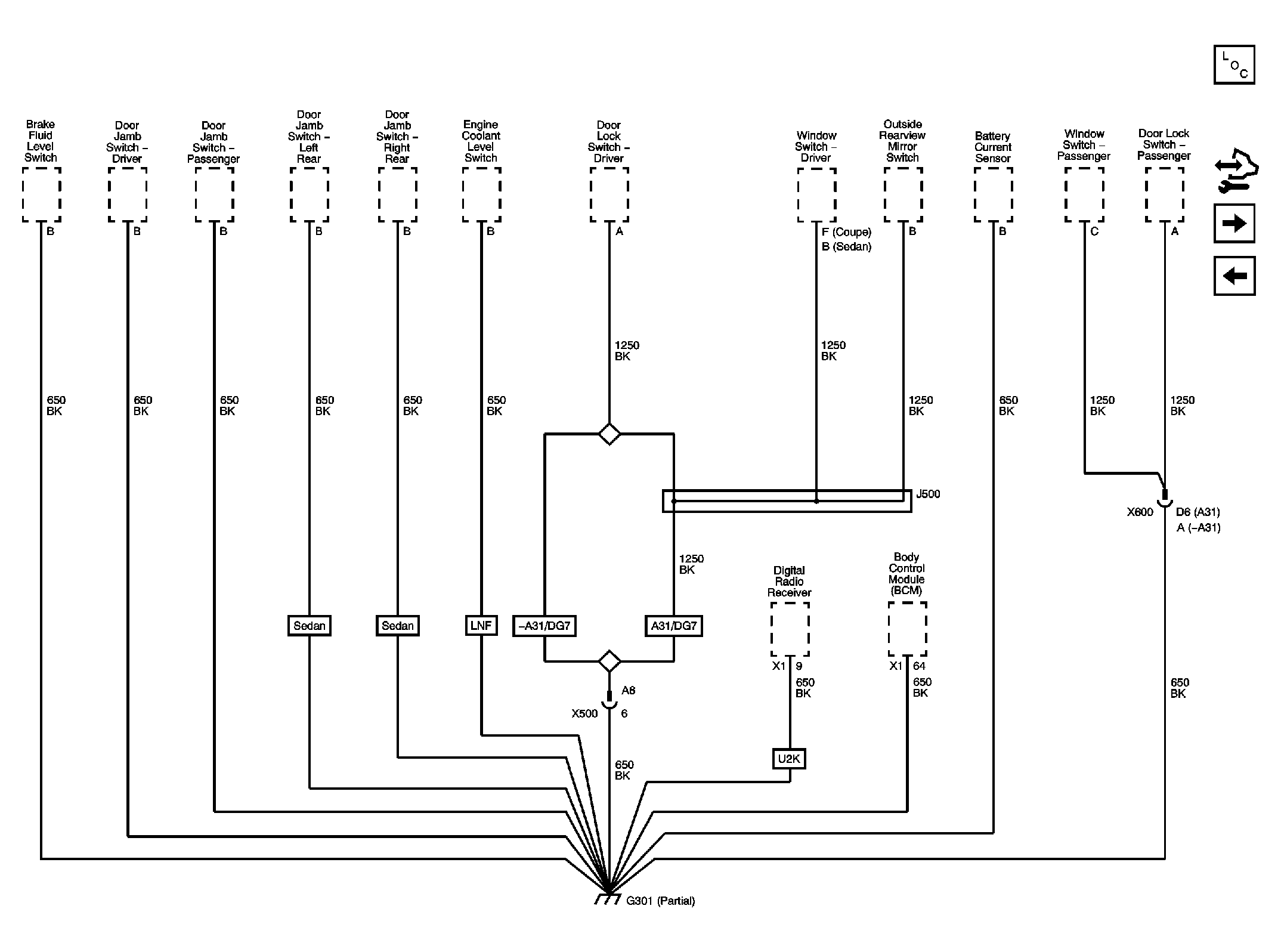

Fig 6: G301 (1 of 2)

Courtesy of GENERAL MOTORS CORP.

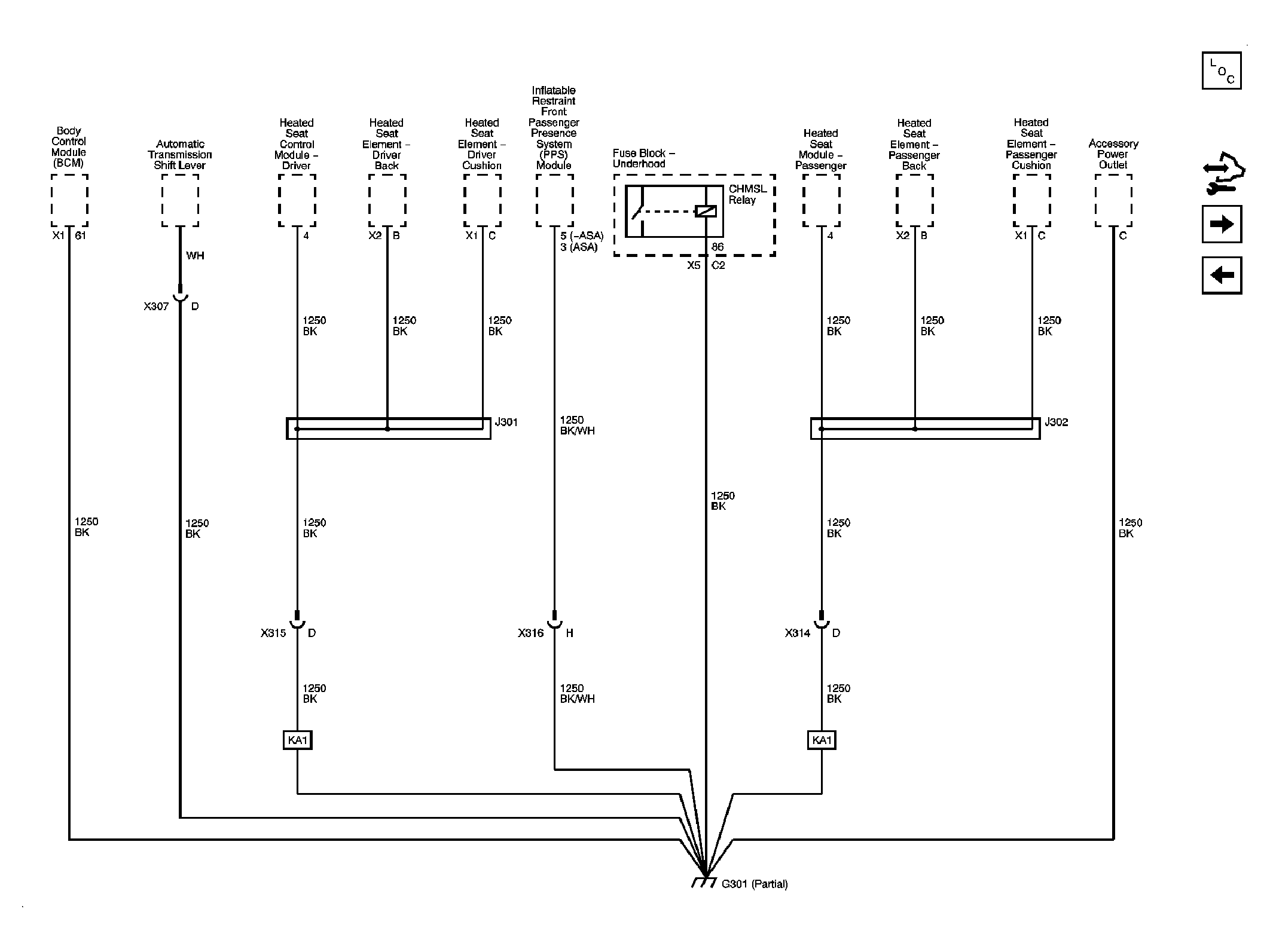

Fig 7: G301 (2 of 2)

Courtesy of GENERAL MOTORS CORP.

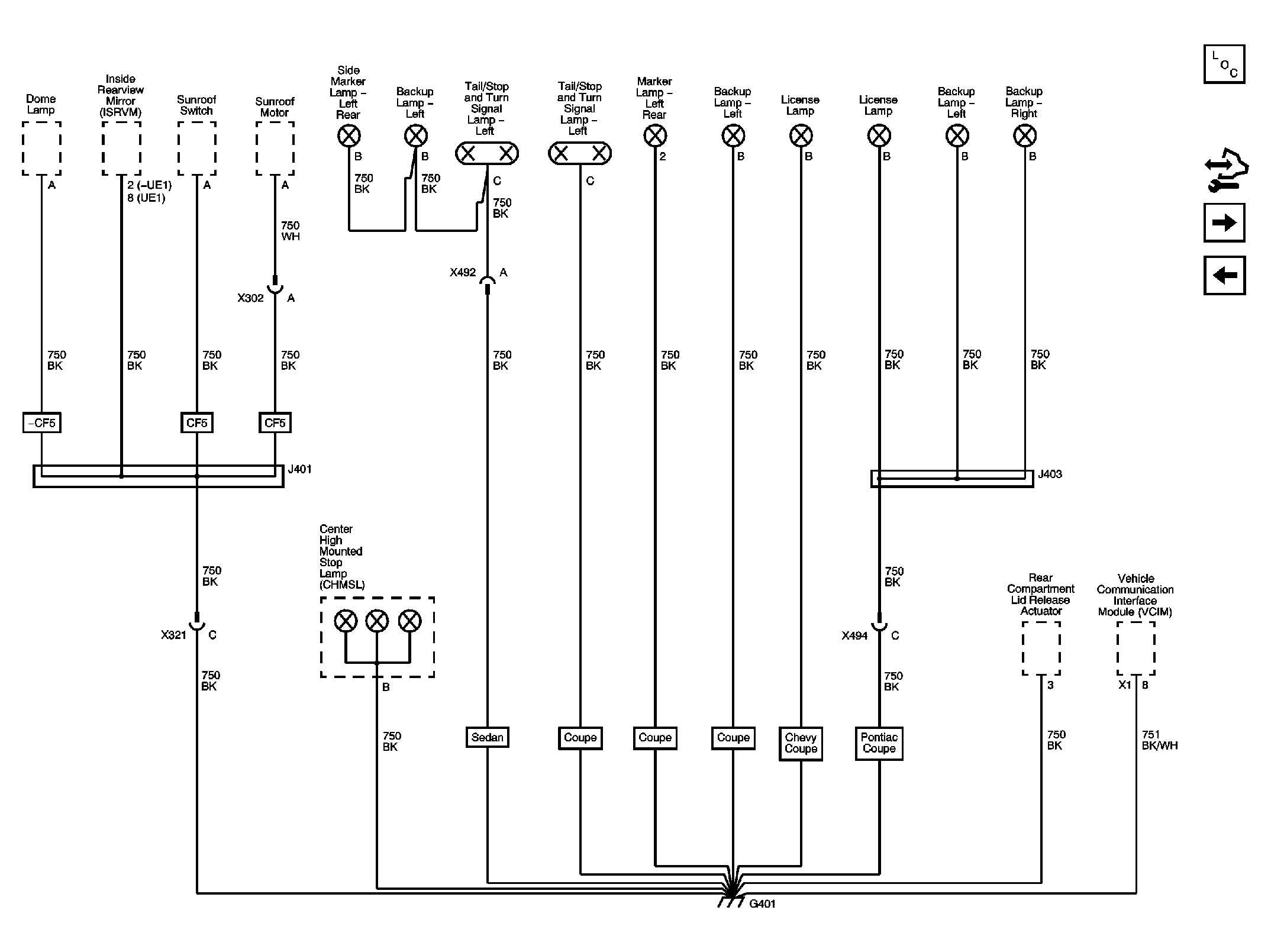

Fig 8: G401

Courtesy of GENERAL MOTORS CORP.

Fig 9: G402, G403

Courtesy of GENERAL MOTORS CORP.
