Special Tools

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Illustration	Tool Number/ Description

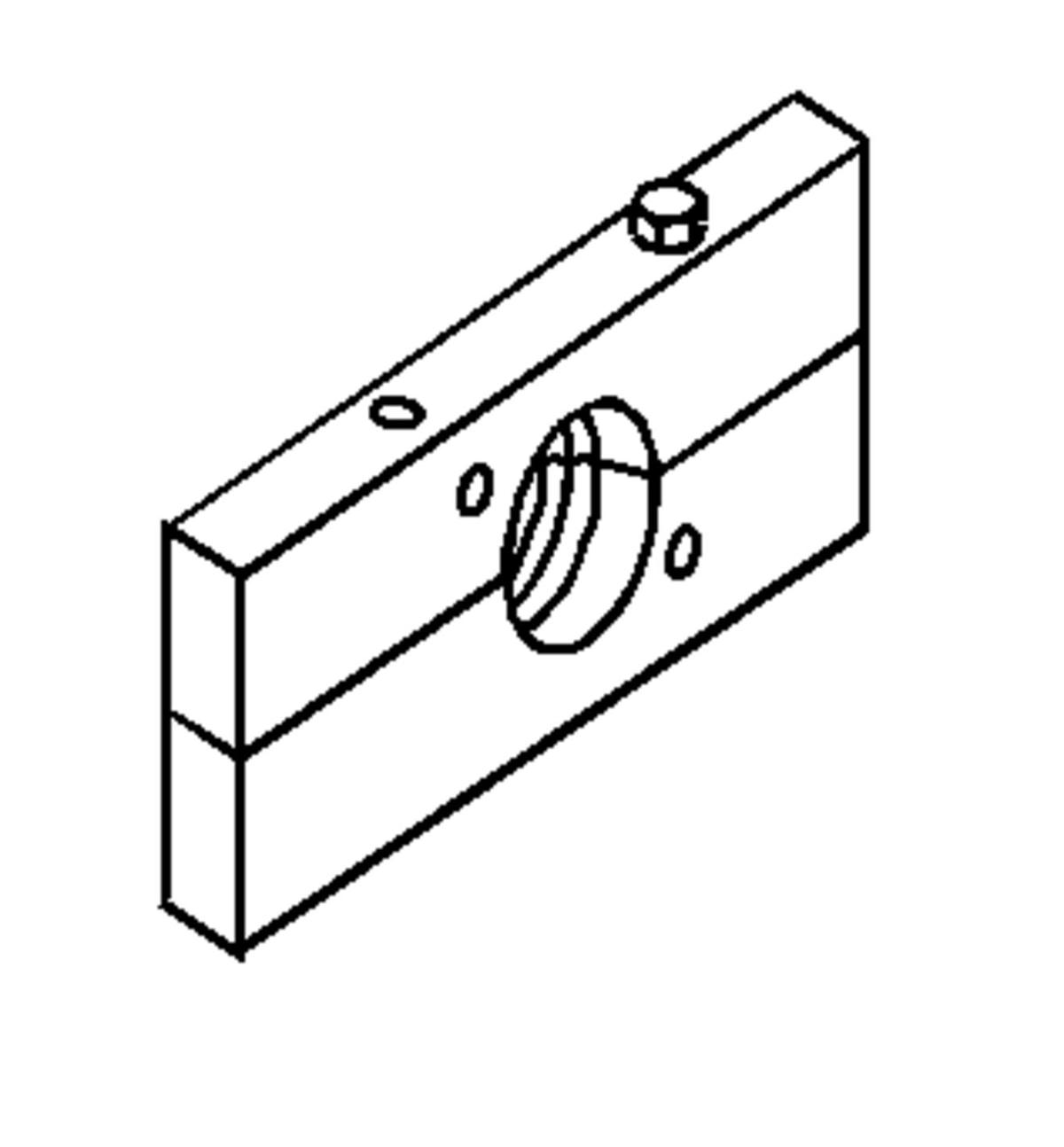

Courtesy of GENERAL MOTORS CORP.	78-41-067 Sleeve Inner Driver
Courtesy of GENERAL MOTORS CORP.	83-90-114 Sleeve
Courtesy of GENERAL MOTORS CORP.	83-90-312 Drift, Bearing Race Input Shaft
Courtesy of GENERAL MOTORS CORP.	87-90-636 Pinion Fixture
Courtesy of GENERAL MOTORS CORP.	87-90-800 Drift, Differential Seal
Courtesy of GENERAL MOTORS CORP.	87-90-867 Input Shaft Bearing Ring
Courtesy of GENERAL MOTORS CORP.	87-91-121 Input Shaft Bearing Puller Ring
Courtesy of GENERAL MOTORS CORP.	87-91-188 Screw Press Support
Courtesy of GENERAL MOTORS CORP.	87-91-204 Output Shaft Bearing Race Sleeve
Courtesy of GENERAL MOTORS CORP.	87-91-261 Output Shaft Remover
Courtesy of GENERAL MOTORS CORP.	87-91-287 Puller
Courtesy of GENERAL MOTORS CORP.	87-91-295 Puller Arms, 300 mm
Courtesy of GENERAL MOTORS CORP.	87-91-303 Puller Arms, 150 mm
Courtesy of GENERAL MOTORS CORP.	87-91-311 Sleeve, Bearing Driver Shaft
Courtesy of GENERAL MOTORS CORP.	87-91-410 Output Shaft Protector
Courtesy of GENERAL MOTORS CORP.	87-91-428 Driver
Courtesy of GENERAL MOTORS CORP.	87-91-642 Basic Puller
Courtesy of GENERAL MOTORS CORP.	87-91-972 Assembly Ring
Courtesy of GENERAL MOTORS CORP.	87-92-053 Companion Flange
Courtesy of GENERAL MOTORS CORP.	87-92-061 Millimeter Disc
Courtesy of GENERAL MOTORS CORP.	87-92-095 Weight (10 Kilograms)
Courtesy of GENERAL MOTORS CORP.	87-92-103 Output Shaft Assembly Tool
Courtesy of GENERAL MOTORS CORP.	87-92-129 Lifting Eye
Courtesy of GENERAL MOTORS CORP.	87-92-137 Milled Bearing Race
Courtesy of GENERAL MOTORS CORP.	87-92-152 Input Shaft Bearing Puller
Courtesy of GENERAL MOTORS CORP.	87-92-178 Output Shaft Puller Ring
Courtesy of GENERAL MOTORS CORP.	87-92-202 Output Shaft Bearing Race Sleeve
Courtesy of GENERAL MOTORS CORP.	87-92-210 Support, Differential Bearing
Courtesy of GENERAL MOTORS CORP.	87-92-236 Support
Courtesy of GENERAL MOTORS CORP.	J 7754-C Torque Wrench Beam Type
Courtesy of GENERAL MOTORS CORP.	J 8001 Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8107-2 Side Bearing Puller Pilot
Courtesy of GENERAL MOTORS CORP.	J 22875 Differential Bearing Installer
Courtesy of GENERAL MOTORS CORP.	J 22888-20A Universal Two Jaw Puller
Courtesy of GENERAL MOTORS CORP.	J 22919 Differential Side Bearing Installer
Courtesy of GENERAL MOTORS CORP.	J 24319-B Steering Linkage and Tie Rod Puller
Courtesy of GENERAL MOTORS CORP.	J 25031-A Three Jaw Puller
Courtesy of GENERAL MOTORS CORP.	J 35616 GM Terminal Test Kit
Courtesy of GENERAL MOTORS CORP.	J 39511 Countershaft Bearing Installer
Courtesy of GENERAL MOTORS CORP.	J 43483 Impact Driver
Courtesy of GENERAL MOTORS CORP.	J 43628 Frame Alignment Fixture
Courtesy of GENERAL MOTORS CORP.	J 43707 Transaxle Support Fixture
Courtesy of GENERAL MOTORS CORP.	J 43915 Brake Bleeder Adapter
Courtesy of GENERAL MOTORS CORP.	J 43964 Engine Stand Fixture Adapter
Courtesy of GENERAL MOTORS CORP.	J 44015 Steering Linkage Installer
Courtesy of GENERAL MOTORS CORP.	J 44362 Input Shaft Support
Courtesy of GENERAL MOTORS CORP.	J 44394 Seal Protector
Courtesy of GENERAL MOTORS CORP.	J 44809 Output Shaft Seal Installer
