Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Transmission Mount-To-Mid-rail Bolts
    GM851557Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission mount to the mid-rail.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the transmission mount to mid-rail bolts and tighten to 27 N.m (20 lb ft).
    3. Fig 2: Supporting Engine/Transmission With Hydraulic Floor Jack
    GM851552Courtesy of GENERAL MOTORS CORP.
  3. Using a floor jack, raise the transmission until it contacts the transmission mount.

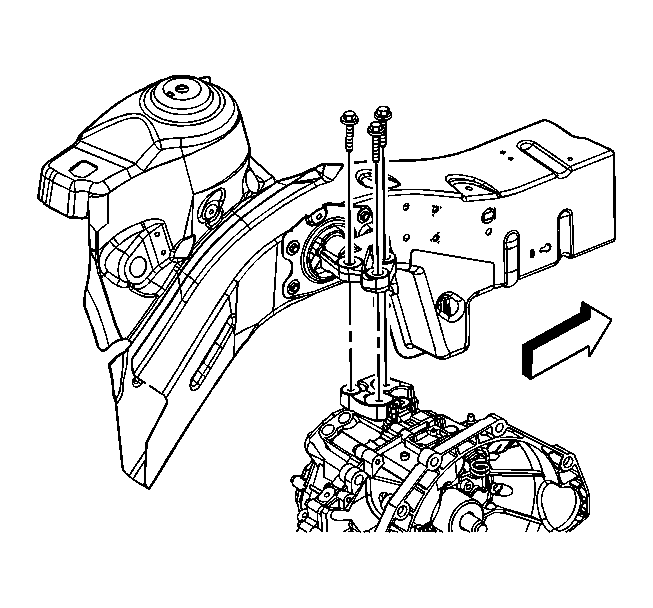

    4. Fig 3: View Of Transmission Mount To Transmission Bolts
    GM1376169Courtesy of GENERAL MOTORS CORP.
    NOTE: The transmission mount to transmission bolts must be hand started. Do not pry the transmission or mount to align the holes.
  4. Hand start the transmission mount to bracket bolts using the following sequence:
    1. Rear bolt
    2. Middle bolt
    3. Front bolt
  5. Using the previous sequence, tighten the transmission mount bolts to 65 N.m (48 lb ft).
  6. Install the underhood electrical center bracket to the vehicle and install the electrical center into position on the bracket. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .
