Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

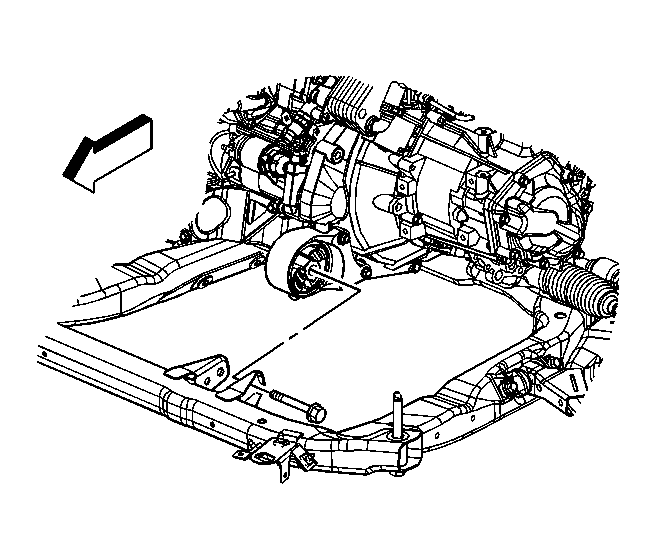

    2. Fig 1: View Of Front Transmission Mount Through Bolt
    GM1376073Courtesy of GENERAL MOTORS CORP.
  2. Remove the front transaxle mount through bolt.

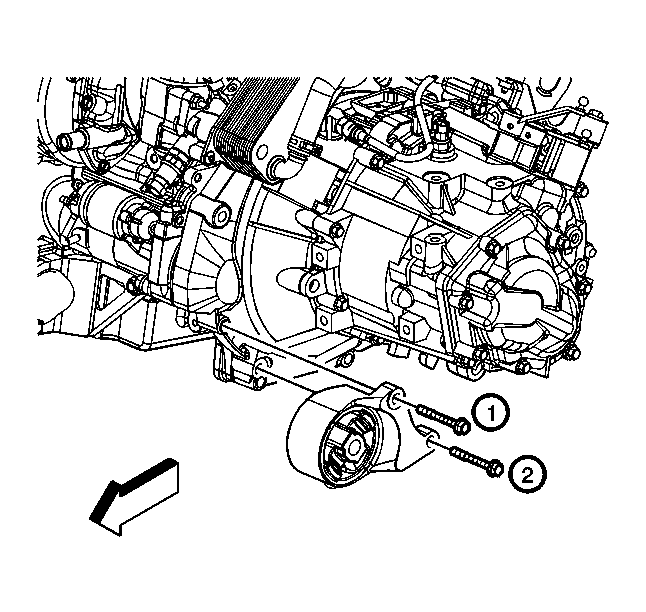

    3. Fig 2: View Of Front Transaxle Mount-To-Transaxle Bolts
    GM1376115Courtesy of GENERAL MOTORS CORP.
  3. Remove the front transaxle mount to transaxle bolts.
  4. Remove the front transaxle mount from the vehicle.
