Shift Linkage Assemble
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
- Install the gear position guide on the shaft. Press the shaft until the middle groove is located centrally on the opening in the gear position guide.
- Install the dual interlock on the shaft and install a NEW rollpin.
- Install the tension spring taut with the spring ends on each side of the pin.
- Install the lockring. Do not place the preload washer on until the gear-changing mechanism has been fitted in the gear box.
- If any shift forks, shift shafts, or shift shaft blocks were disassembled, reassemble the shift shafts by driving new retaining pins into the shift forks or shift shaft blocks.
- Install all shift shafts partially onto the shift control bracket assembly. Partial insertion of the shift shafts provide considerable end play during the installation of the gear shift mechanism.
- Install the gear position mechanism with the spring ends on each side of the guide lug and the dual interlock in the driver groove.

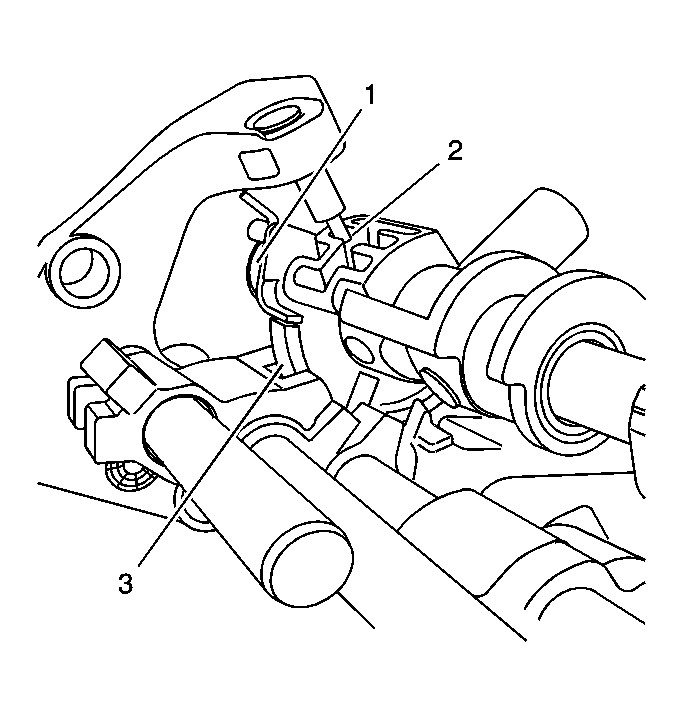

- While installing the gear shift mechanism, simultaneously align the following:
- the shift position mechanism's shaft to the shift control bracket assembly hole (1).
- the shift control bracket pin to the shift position mechanism shift pattern (2).
- The brass double position blocker to the shift shaft block notches (3). The brass double position blocker should be aligned properly with the shift cylinder.
- Set the shift linkage assembly upright to encourage components to settle into position.
- Align the shift forks with synchronizer sleeves and install the shift linkage to the clutch housing case.
IMPORTANT:
While assembling shafts, ensure that the shift shaft block notches line up.
IMPORTANT:
Ensure that the gear position mechanism engages the shift blocks.
