Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

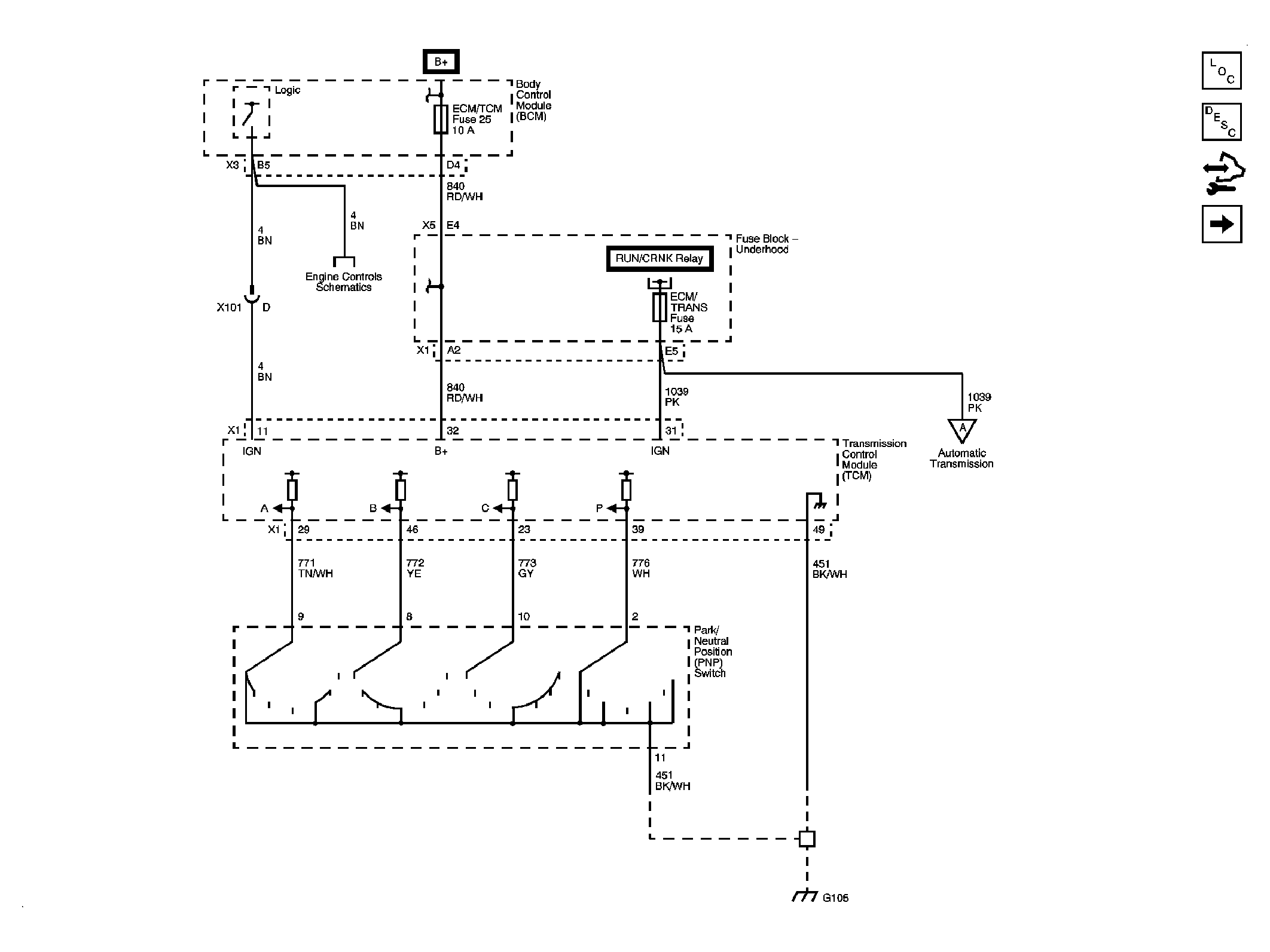

Fig 1: Power, Ground, PNP Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Solenoids, VSS

Courtesy of GENERAL MOTORS CORP.

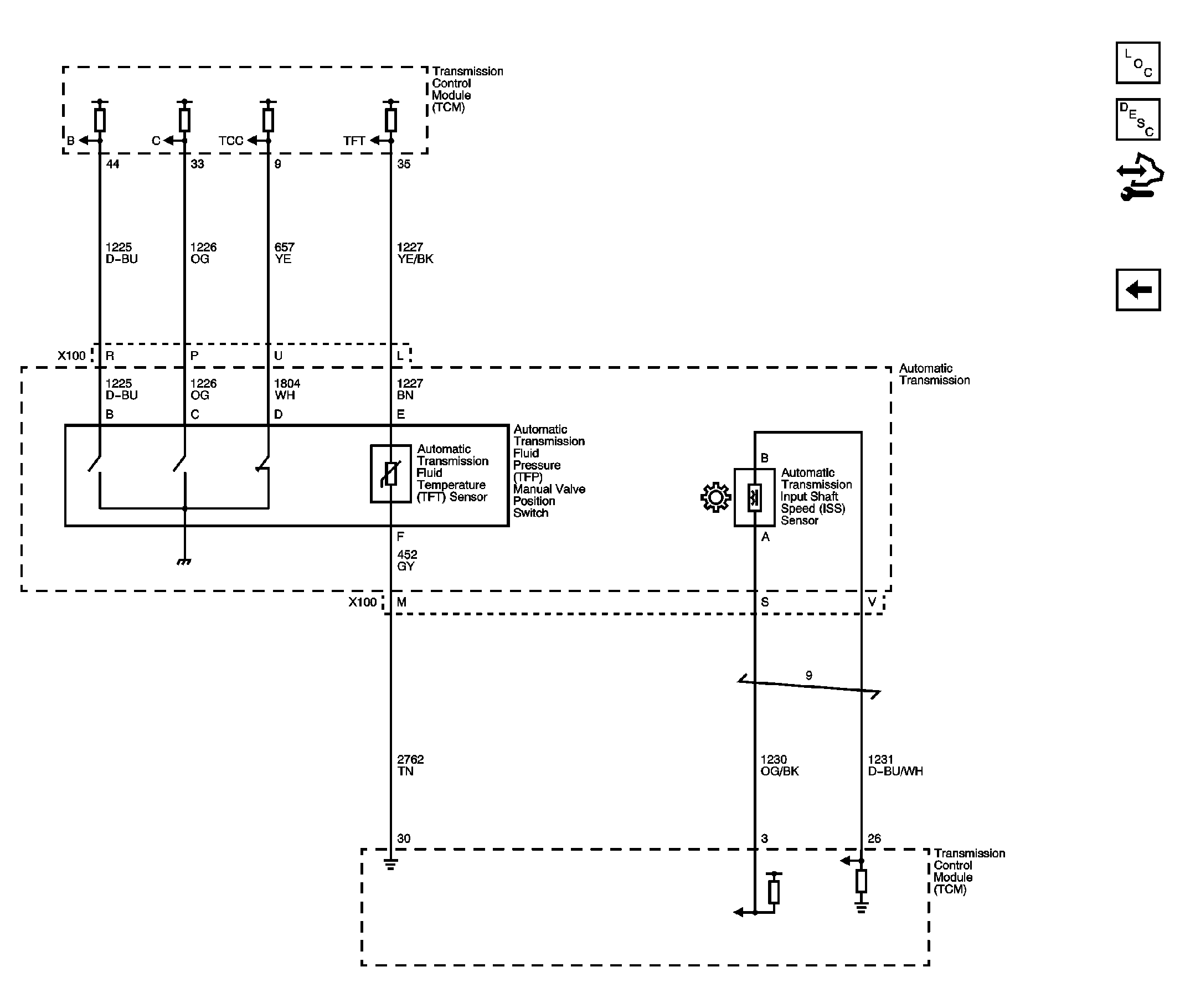

Fig 3: Switches, TFT, ISS, Sensors

Courtesy of GENERAL MOTORS CORP.
