Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

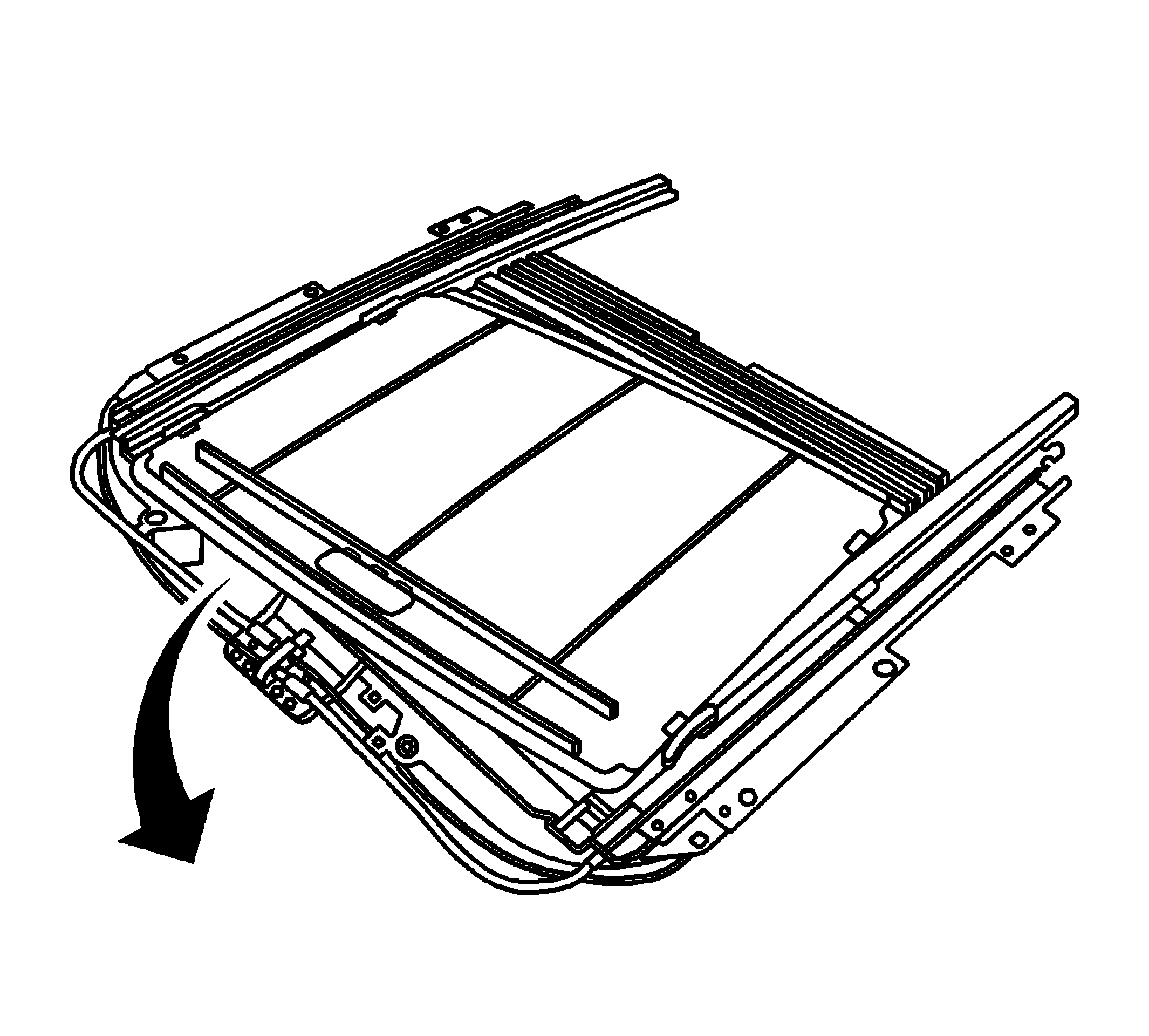

    Fig 1: View Of Sunshade & Track Assembly
    GM861212Courtesy of GENERAL MOTORS CORP.
  1. Position rear edge of the sunshade panel to the track assembly.
  2. Ensure that the slider pad at the rear is positioned into the track assembly.
  3. Depress the rear slider pad on the opposite side of the sunshade panel and release it into the track assembly.

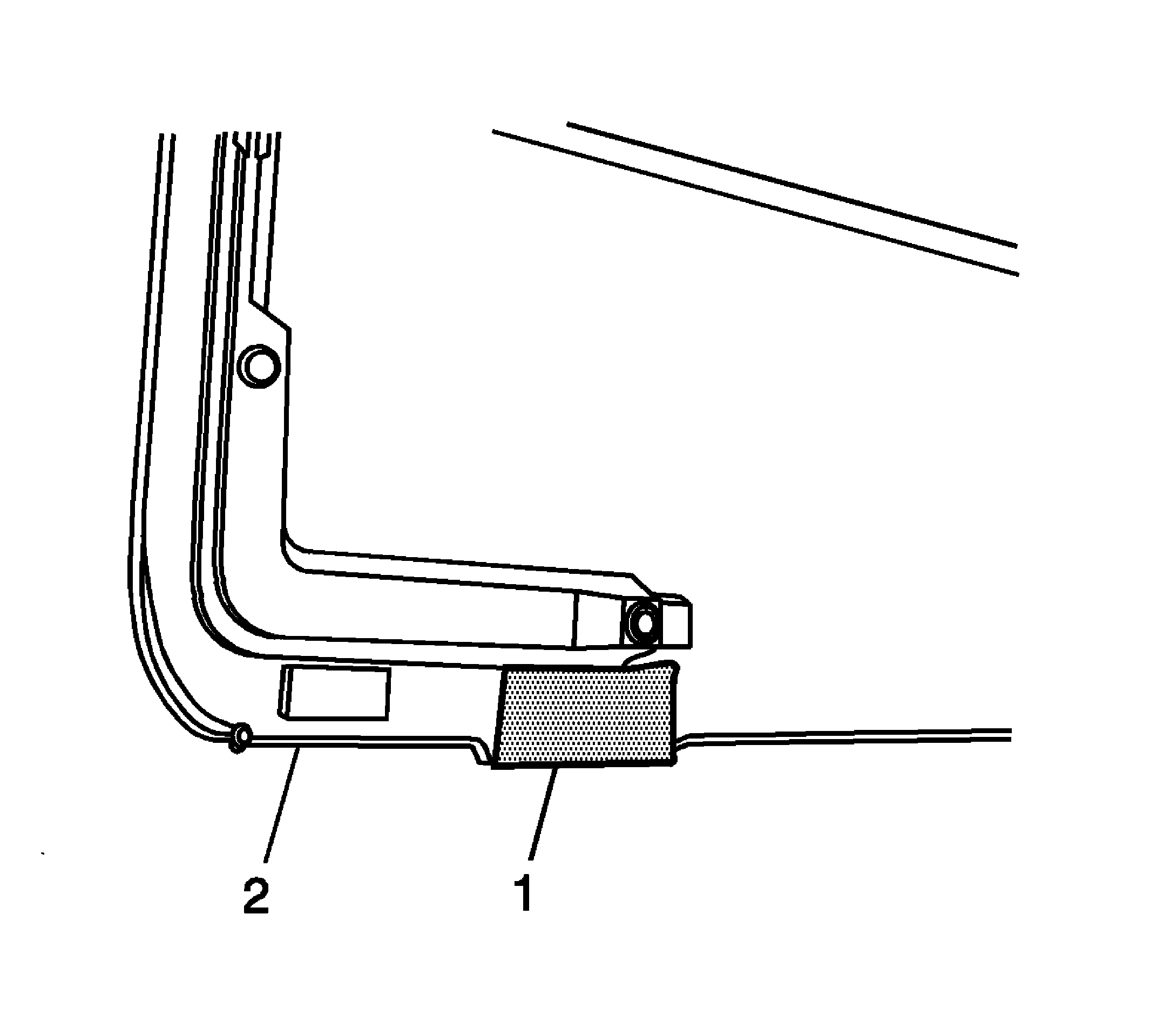

    4. Fig 2: Identifying Sunshade & Tab
    GM1609774Courtesy of GENERAL MOTORS CORP.
  4. Install the front edge (1) of the sunshade panel slider pad into the track assembly.
  5. Arch the forward edge of the sunshade in order to insert it into sunshade track.
  6. Install the slider pad into the track assembly and release.
  7. Slide the sunshade panel forward and rearward to ensure free operation is present.
  8. With the sunshade partially open, pull downward on the sunshade. Cycle the sunroof to the vent position, allowing the glass panel to travel past the sunshade front edge.

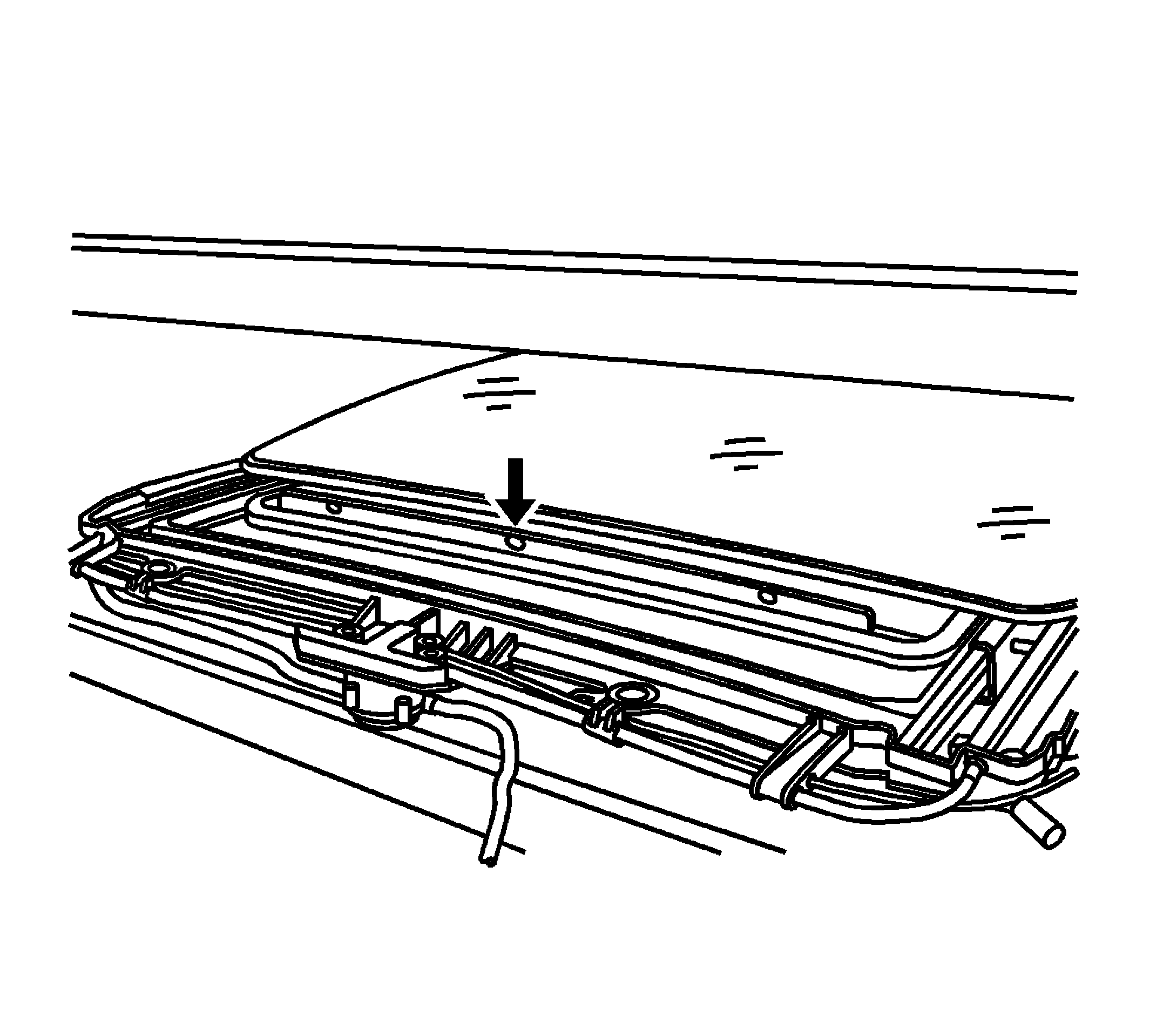

    9. Fig 3: Locating Sunshade
    GM861214Courtesy of GENERAL MOTORS CORP.
  9. Release the sunshade. Cycle the sunroof to the open position. Inspect for proper engagement of the sunroof glass panel and the sunshade panel.
