Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

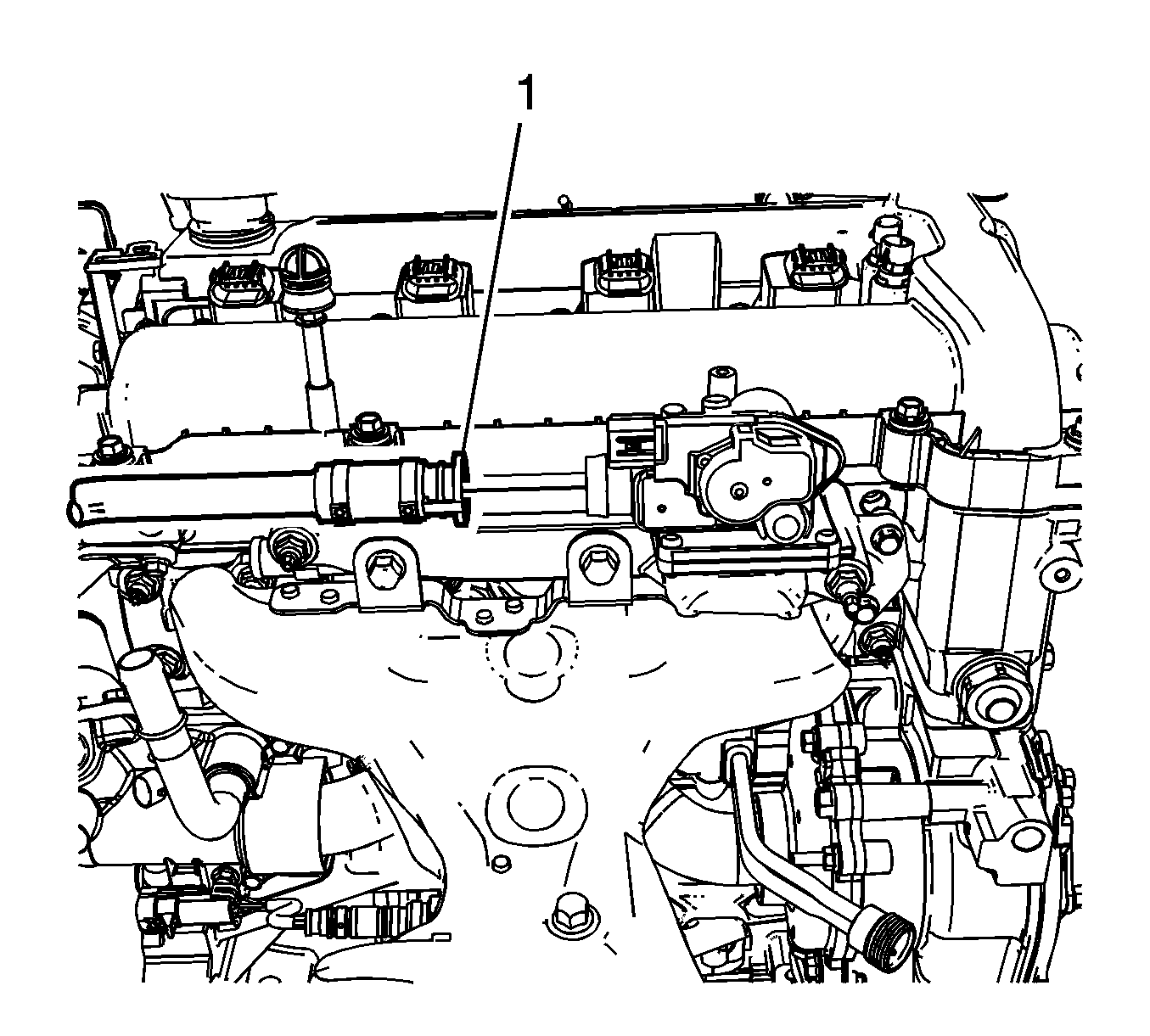

    Fig 1: Identifying Secondary Air Injection Pump Hose & Secondary Air Injection Check Valve
    GM2093739Courtesy of GENERAL MOTORS CORP.
  1. Connect the secondary air injection pump hose (1) to the secondary air injection check valve. Refer to Plastic Collar Quick Connect Fitting Service
  2. Install the secondary air injection pump hose to the vehicle.

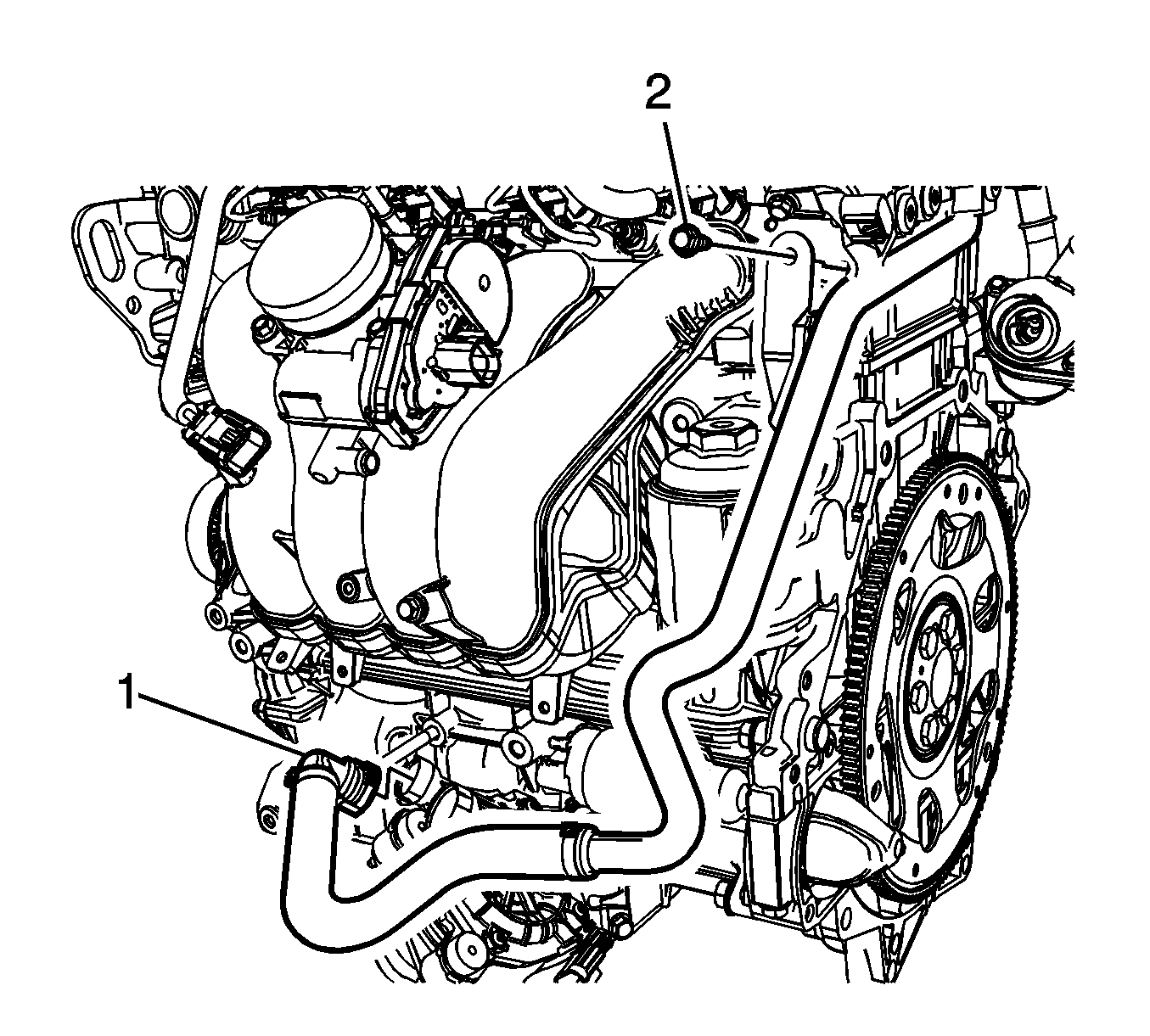

    3. Fig 2: Identifying Secondary Air Injection Pump Hose Replacement
    GM2093703Courtesy of GENERAL MOTORS CORP.
  3. Connect the secondary air injection pump hose (1) to the secondary air injection pump. Refer to Plastic Collar Quick Connect Fitting Service
