Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of PCV Hose From Outlet Duct

Courtesy of GENERAL MOTORS CORP.

If necessary, install the PCV hose to the outlet duct.
If necessary, position the PCV hose clamp at the outlet duct.

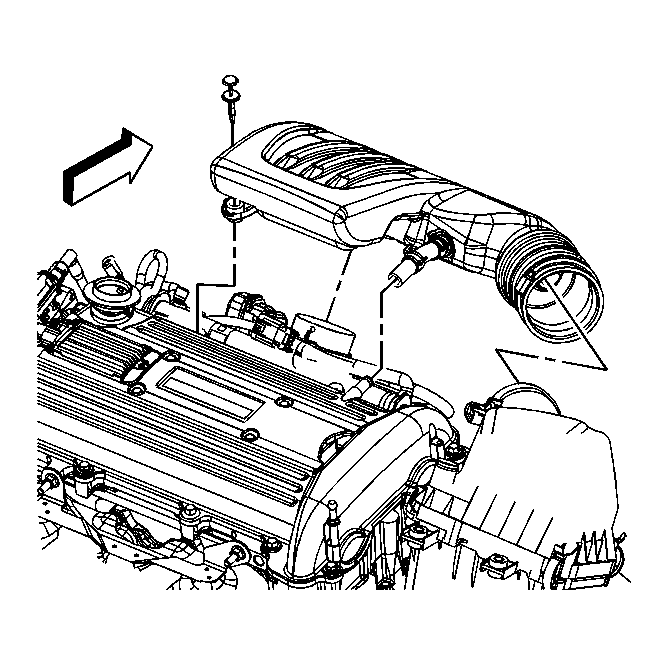

Fig 2: View Of Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner outlet duct to the throttle body and air cleaner housing.

CAUTION: Refer to Fastener Caution .

Tighten the clamps at the air cleaner housing and throttle body to 5 N.m (44 lb in).
Install the push pin retainer.
Install the PCV hose to the camshaft cover.
Position the PCV hose clamp at the camshaft cover.
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
