Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

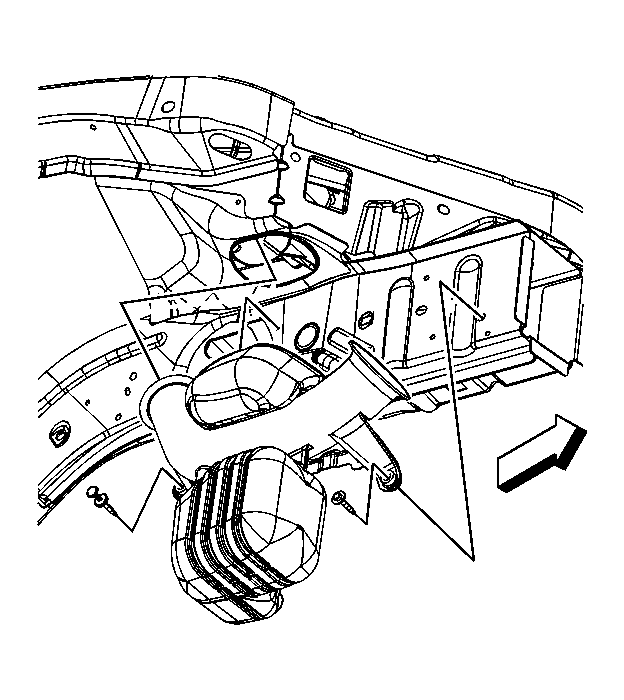

    Fig 1: View Of Air Cleaner Intake Duct
    GM1657025Courtesy of GENERAL MOTORS CORP.
  1. Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation .
  2. Remove the right front fender liner. Refer to Front Fender Liner Replacement .
  3. Remove the air cleaner intake duct retainer.
  4. Remove the air cleaner intake duct bolt.
  5. Remove the air cleaner intake duct.
