Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

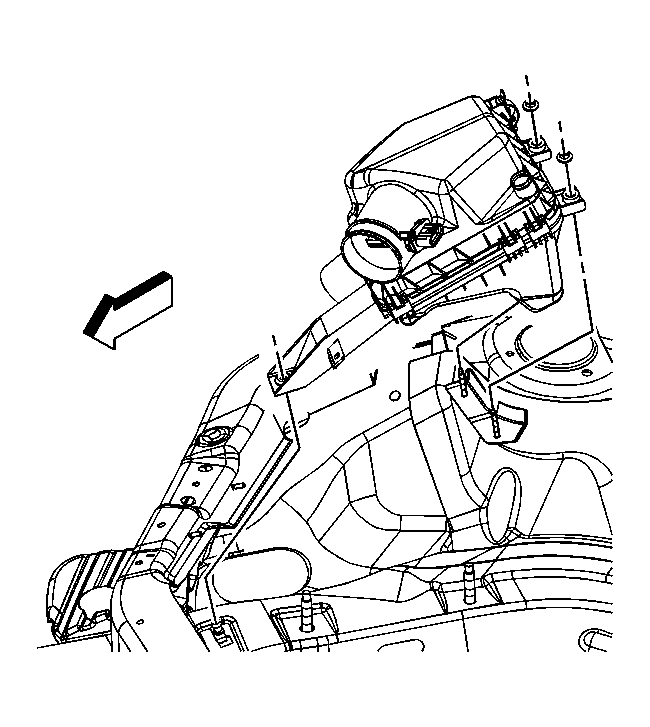

    Fig 1: View Of Air Cleaner Nuts
    GM1657015Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner, push down the front leg of the housing in order to seat the housing onto the stud.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the air cleaner nuts and tighten to 10 N.m (89 lb in).
    3. Fig 2: View Of Engine Harness Electrical Connector To MAF/IAT Sensor
    GM1647998Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  4. Connect the engine harness electrical connector to the MAF/IAT sensor.
