Turbocharger Wastegate Actuator Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

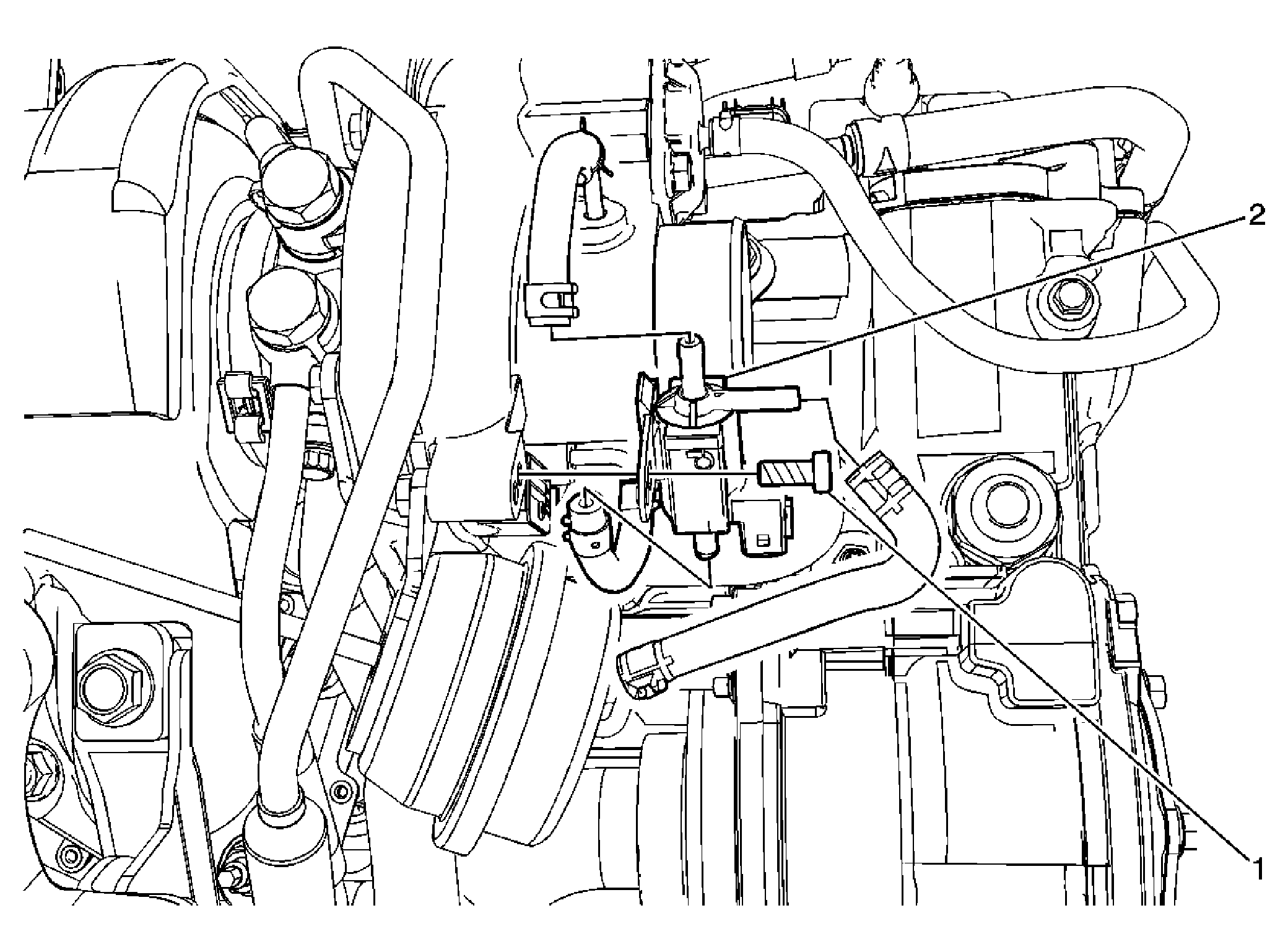

Fig 1: Locating Turbocharger Wastegate Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Wastegate Actuator Bolt CAUTION: Refer to Fastener Caution . Procedure: Disconnect the vacuum hose. Tighten: 10 N.m (89 lb in)
2	Turbocharger Wastegate Actuator

Callout

Component Name

Preliminary Procedures

Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Wastegate Actuator Bolt

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the vacuum hose.

Tighten: 10 N.m (89 lb in)

Turbocharger Wastegate Actuator
