Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

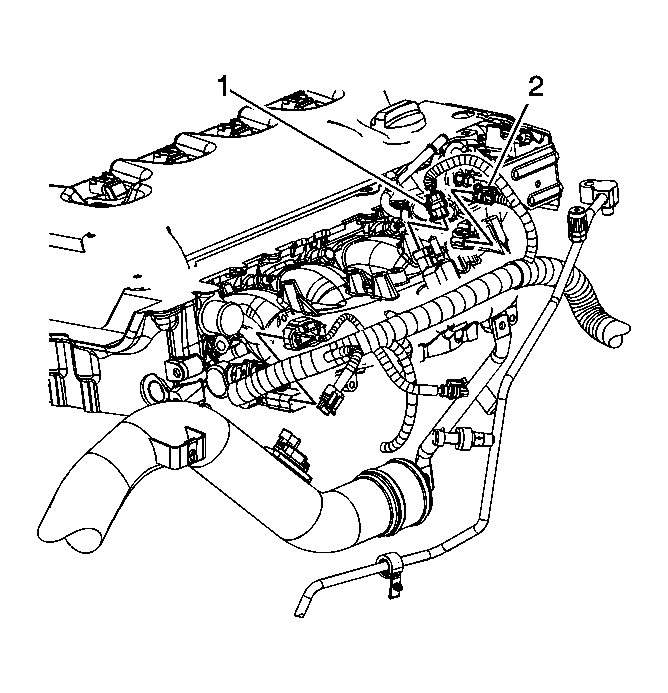

    Fig 1: MAP Sensor Connector
    GM1825525Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness electrical connector (2) from the manifold absolute pressure (MAP) sensor.
    2. Fig 2: MAP Sensor
    GM1828338Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAP sensor bolts.
  3. Remove the MAP sensor and O-ring seal from the intake manifold.
